Garrett
Turbo 764809-0002 (R)
Turbo 764809-0002 (R)
Regular price
€350,00 EUR
Regular price
Sale price
€350,00 EUR
Unit price
/
per
Couldn't load pickup availability

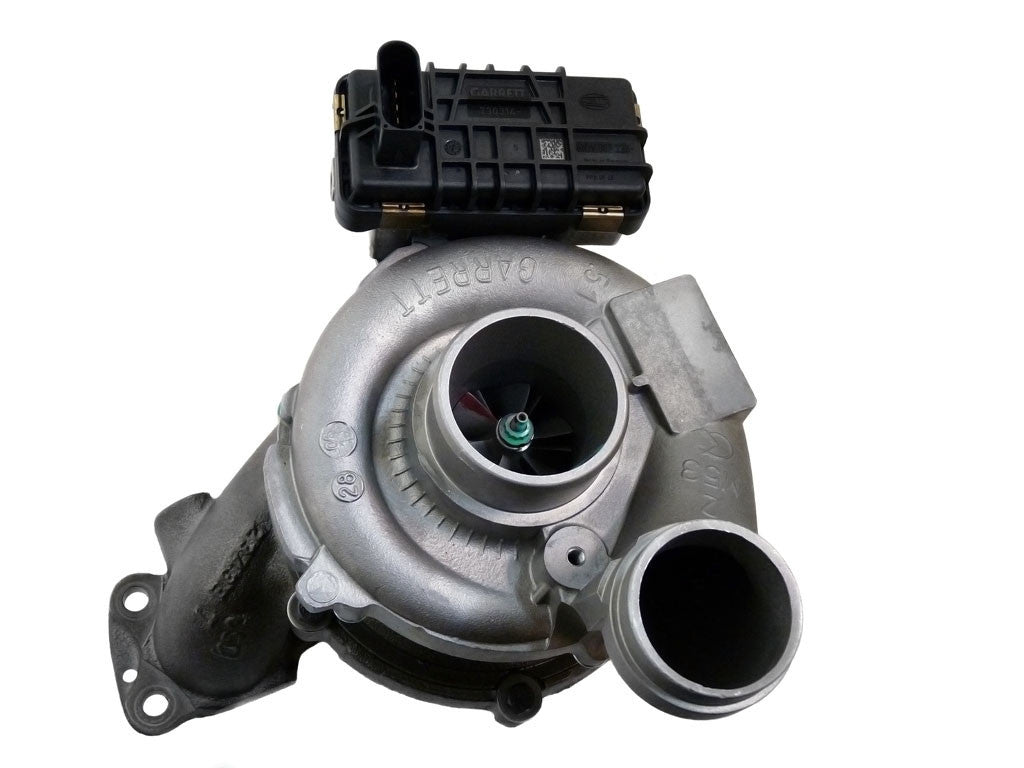

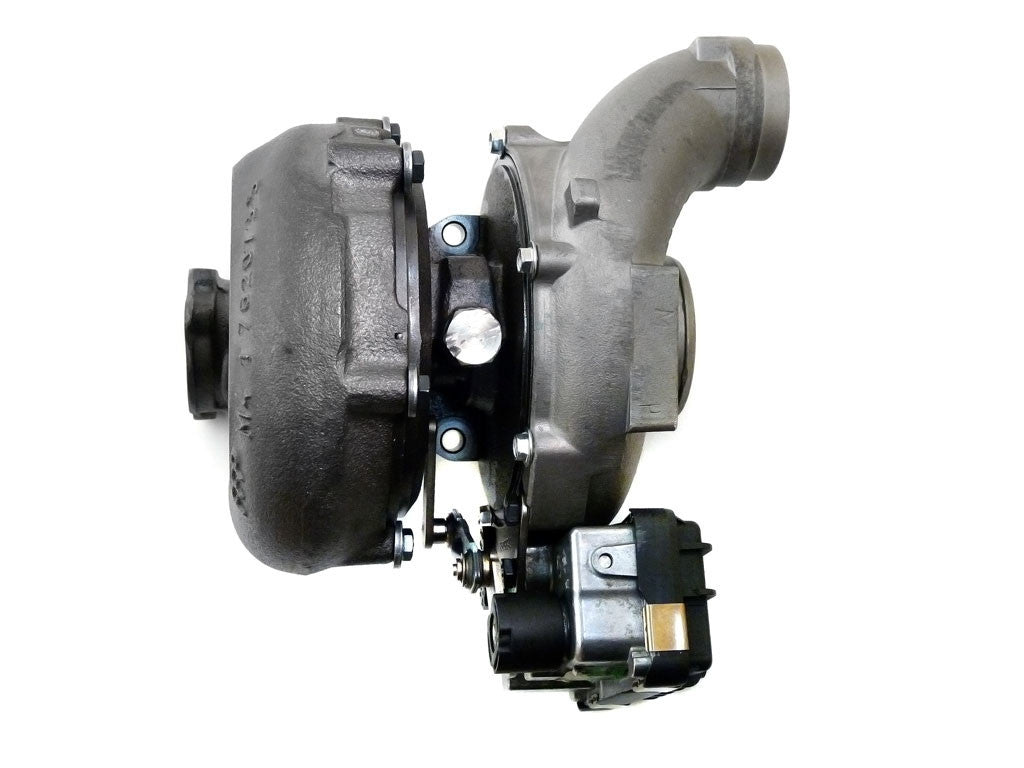

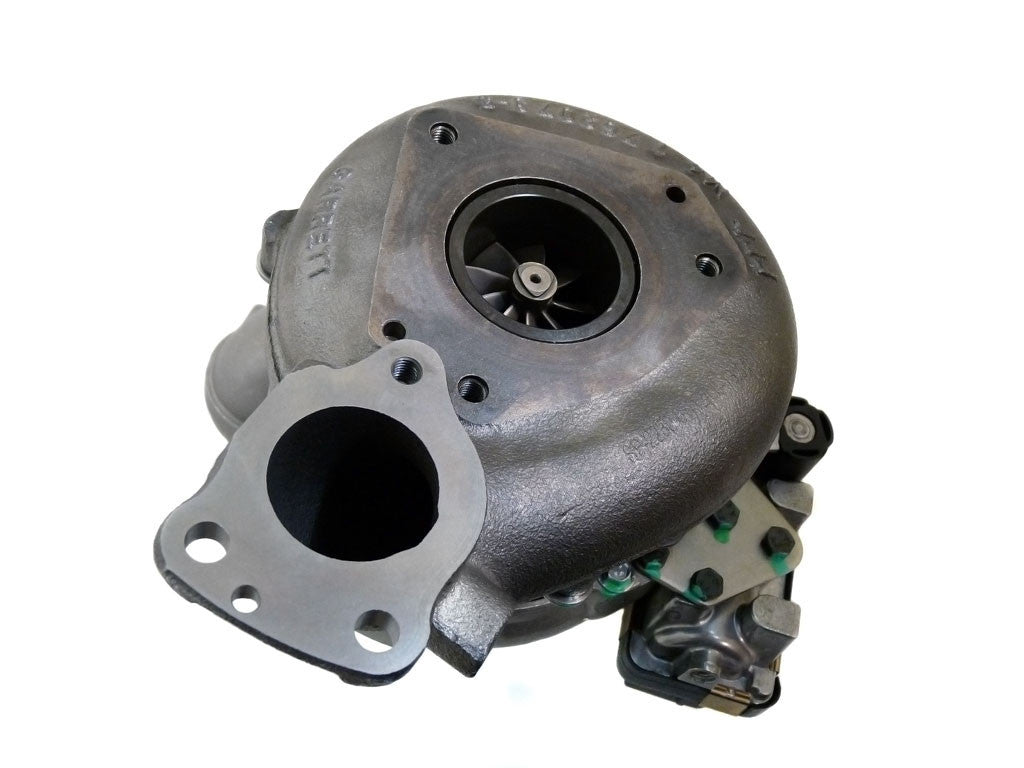

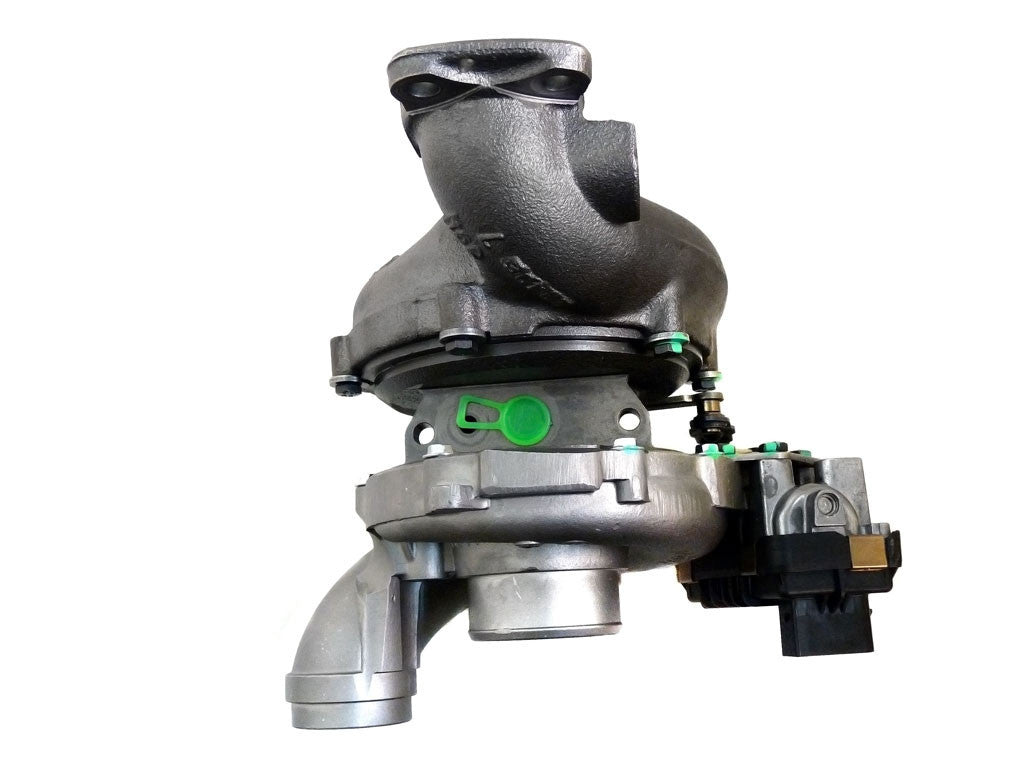

764809-0002 (A6420901680) - Turbocharger
Brand: Garrett
Garrett Reference: 764809-0002
OEM Numbers: A6420901680
764809-0002 - Alternative numbers
GHO (Garrett original part number): 764809-0002
GHA (Garrett aftermarket part number): 764809-5002S
764809-0002 - Technologies and actuation
Actuation type: REA (Rotary Electronic Actuator)
Turbocharger technology: VNT (Variable Nozzle Turbine)
| Turbo 764809-0002 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| Hella | Actuator | 6NW009660-001 | 1 | -- | 781751-0001 |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-207 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-53 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GT20-01 | 1 | -- | 737689-0001 |
| TurboCentras | Bearing housing | GT20-315 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GT20-46 | 1 | -- | -- |
| TurboCentras | Back plate | GT20-60 | 1 | -- | 730078-0002 |
| TurboCentras | VNT nozzle cage | GT20-700 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GT20-94 | 1 | -- | -- |
| TurboCentras | Cartridge | GT22-224 | 1 | -- | -- |
| TurboCentras | Heat shield | GT22-321 | 1 | -- | -- |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-6 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1045 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1045F | 1 | -- | -- |
764809-0002, 764809-5002S, A6420901680
Data updated: 2022-03-09 14:57:09
