Garrett

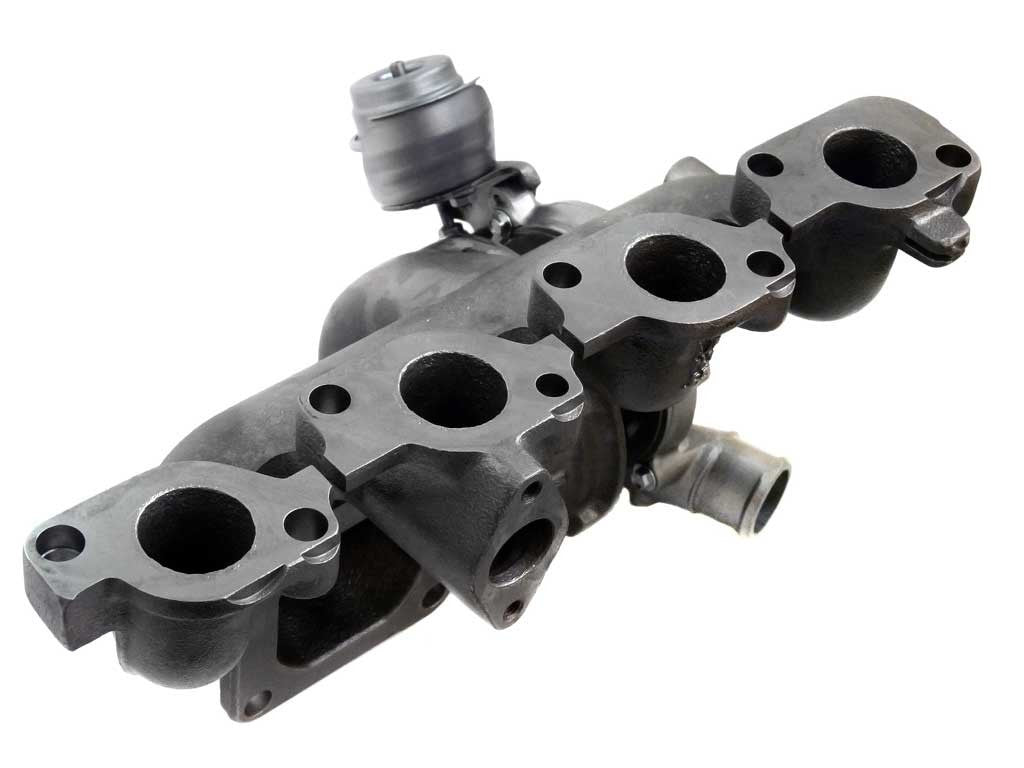

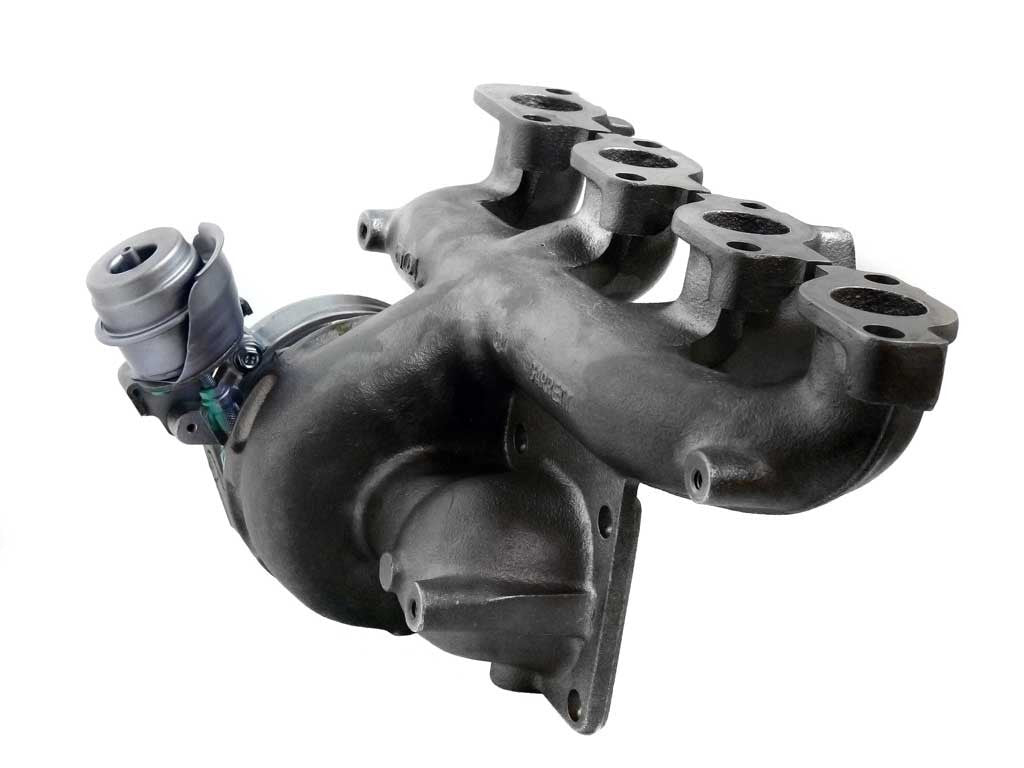

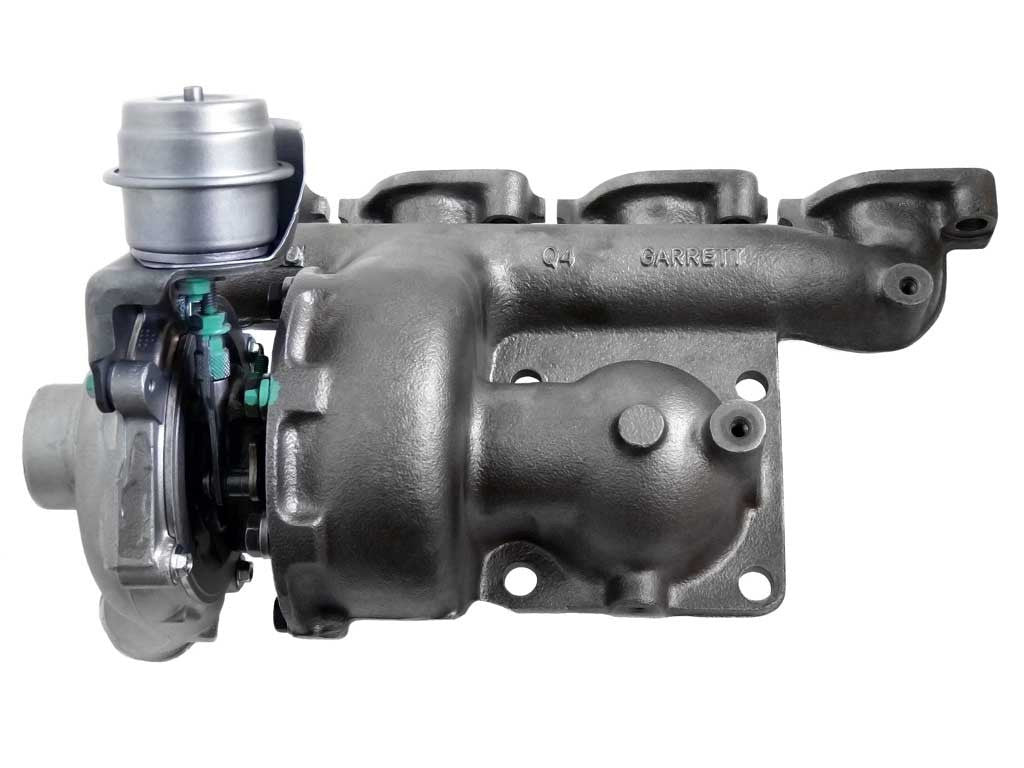

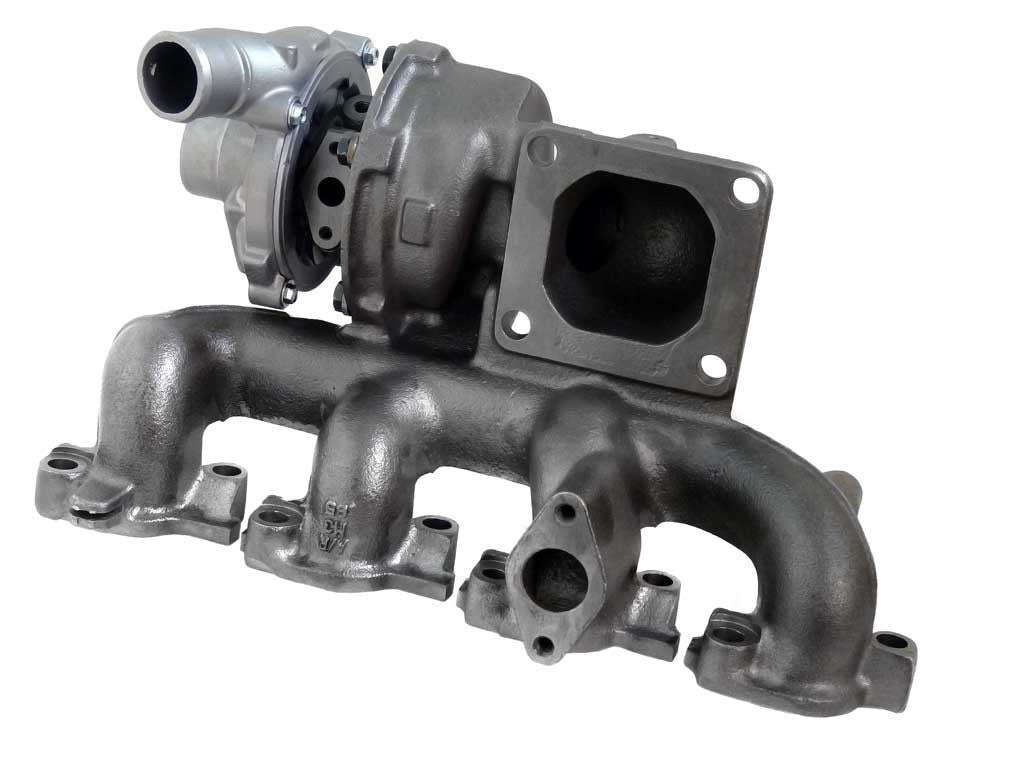

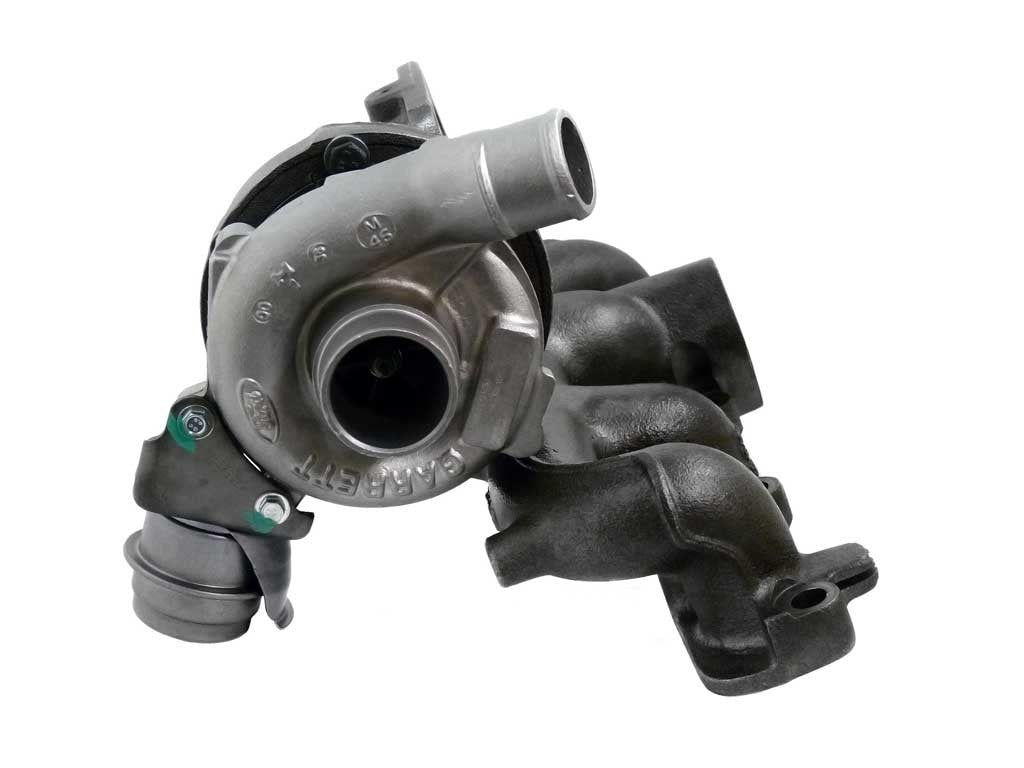

Turbo 704226-0007-R 704226-0007 (R)
Turbo 704226-0007-R 704226-0007 (R)
Regular price
€280,00 EUR
Regular price
Sale price
€280,00 EUR
Unit price
/
per
Couldn't load pickup availability
704226-0007-R (1126058, 1S7Q6K682BH) - Turbocharger GT1749V
Brand: Garrett
Model: GT17 - GT1749V
Garrett Reference: 704226-0007-R

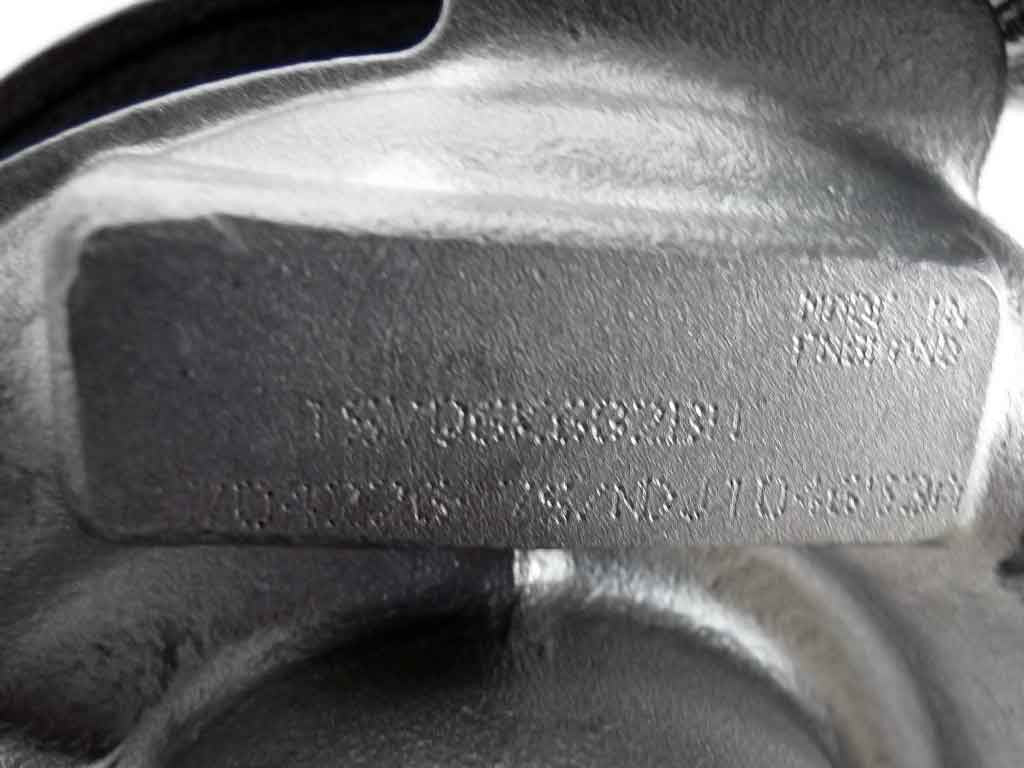

OEM Numbers: 1126058, 1S7Q6K682BH
704226-0007-R - Alternative numbers
GHT (Garrett turbo number): 704226-0007
GHT (Garrett turbo number): 704226-5007S
704226-0007-R - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
704226-0007-R - Turbo replacements
Replaced by: Garrett GTA1749MV 704226-0010
704226-0007-R - Turbo interchangeability
Interchangeable with: Garrett GT1749V 704226-0007
Interchangeable with: Garrett GTA1749MV 704226-0010
Interchangeable with: Garrett GT1749V 704226-5007S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0004 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0001 | 1 | 722282-0077 | -- |
| TurboCentras | Shaft and wheel | GA-02-0066 | 1 | 434533-0006, 434533-0012, 434533-0038, 434533-0056, 434533-0057 | -- |
| TurboCentras | Compressor wheel | GA-03-0030 | 1 | 436132-0003, 436132-0014, 436334-0003, 701300-0007, 703925-0003, 703925-0011, 706164-0003 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0022 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0006 | 1 | 700593-0003 | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | VNT Ring | GT17-90-1 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1012 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
1126058, 1S7Q6K682BH, 704226-0007, 704226-5007S
Data updated: 2024-05-16 08:43:39
