Garrett

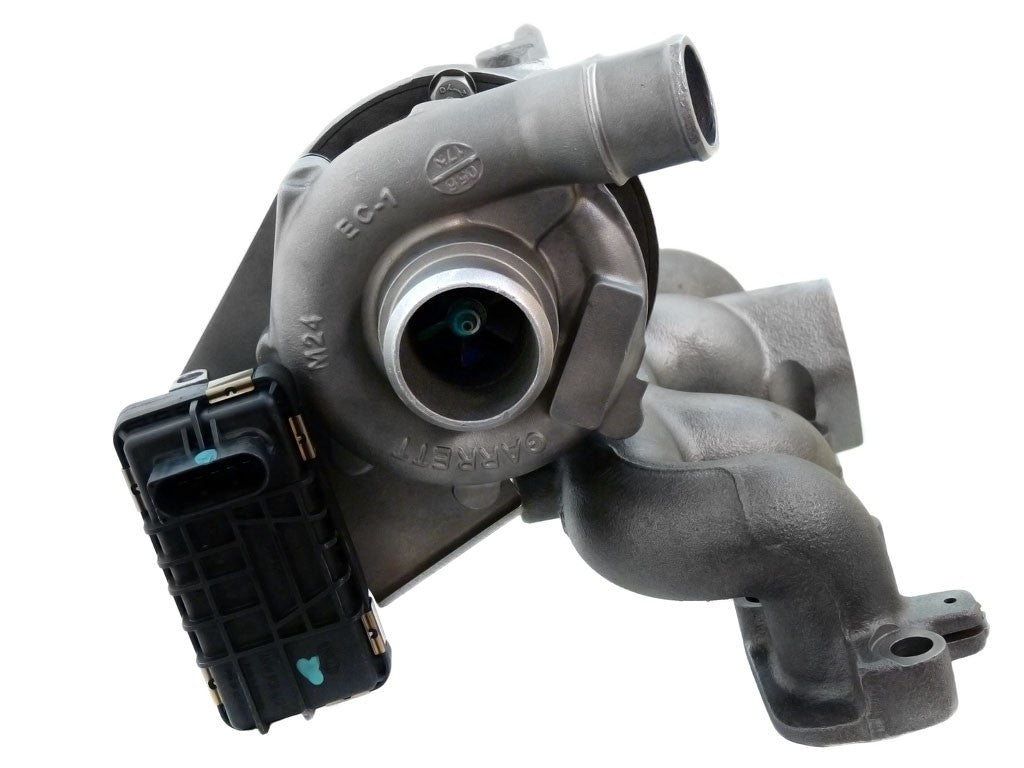

Turbo 758226-0004 (R)
Turbo 758226-0004 (R)
Regular price
€289,26 EUR
Regular price
Sale price
€289,26 EUR
Unit price
/
per
Couldn't load pickup availability
758226-0004 (02JDE4644, 6S7Q-6K682-AD, 6S7Q6K682AD) - Turbocharger GT1749V
Brand: Garrett
Model: GT17 - GT1749V
Garrett Reference: 758226-0004
OEM Numbers: 02JDE4644, 6S7Q-6K682-AD, 6S7Q6K682AD
758226-0004 - Alternative numbers
GHT (Garrett turbo number): 758226-0004
758226-0004 - Technologies and actuation
Actuation type: Electric (Electric actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
758226-0004 - Turbo replacements
Replaced by: Garrett GTA1749MVK 758226-0014
758226-0004 - Turbo interchangeability
Interchangeable with: Garrett GT1749V 758226-0008
Interchangeable with: Garrett GTA1749MVK 758226-0010
Interchangeable with: Garrett GTA1749MVK 758226-0014
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| Hella | Actuator | 6NW008412-491 | 1 | -- | 712120-0221, 712120-0149 |
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0153 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0106 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0057 | 1 | 735492-0003, 784361-0003 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0026 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0034 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
02JDE4644, 6S7Q-6K682-AD, 6S7Q6K682AD, 758226-0004
Data updated: 2024-07-19 10:14:53
