Garrett

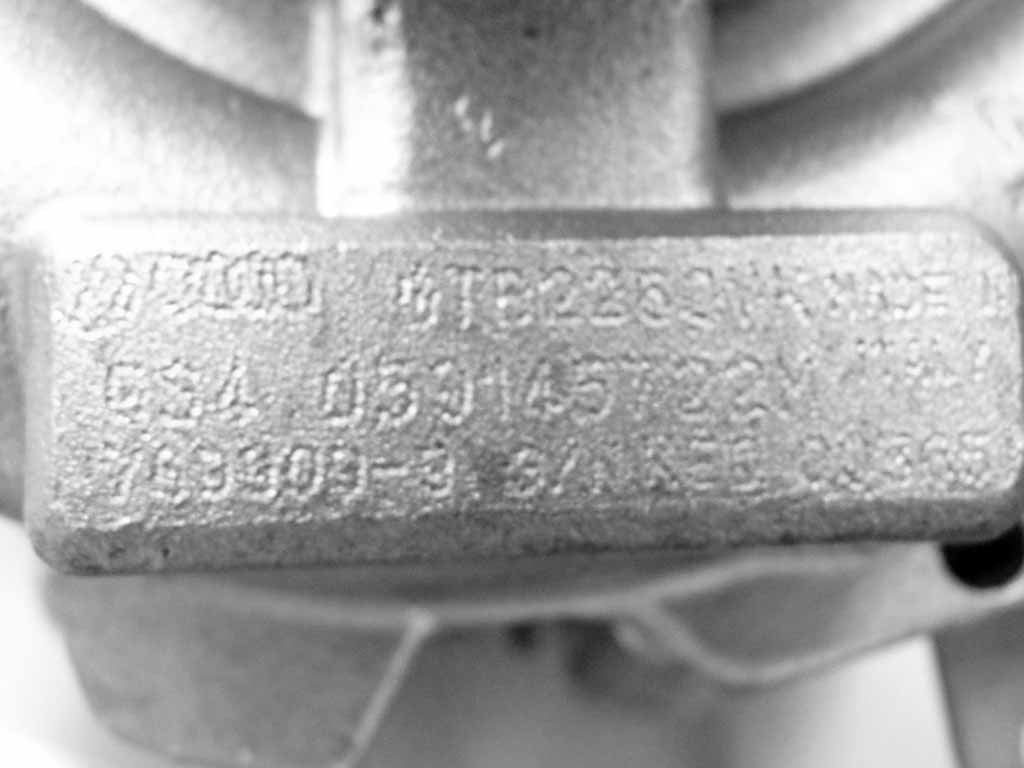

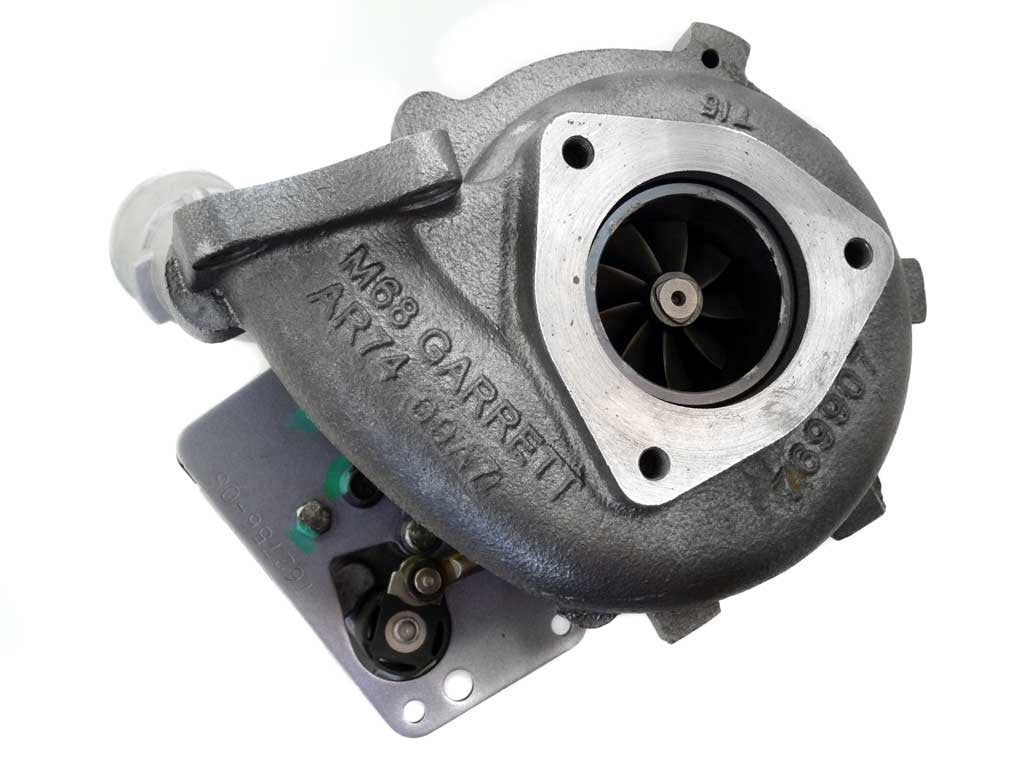

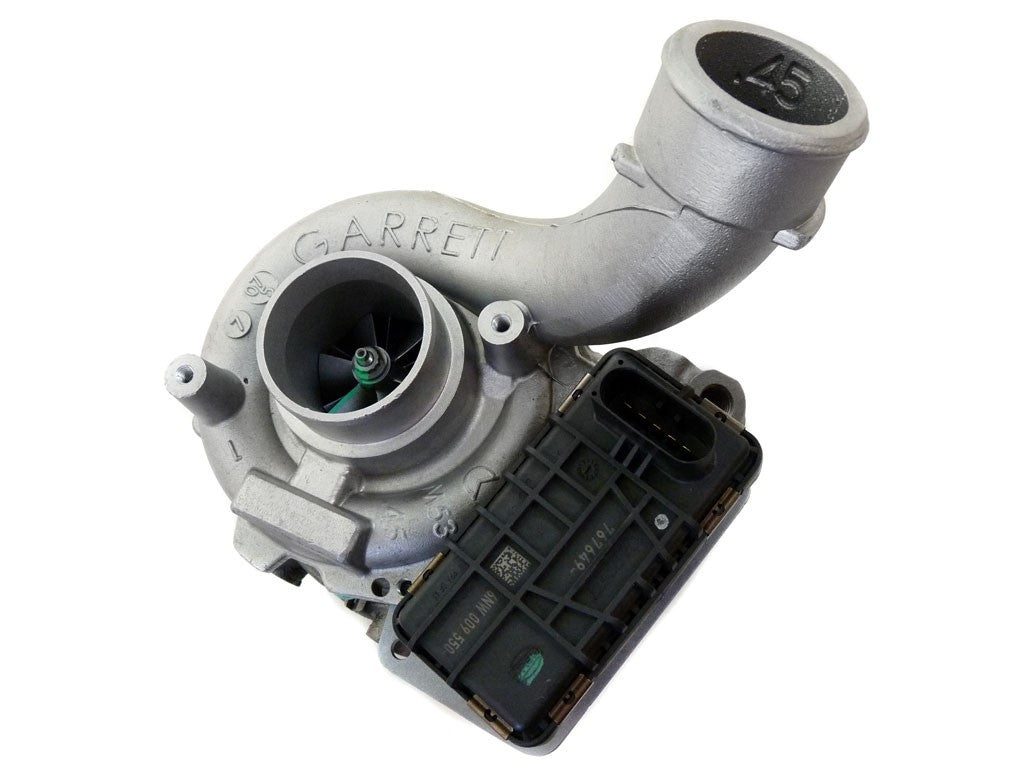

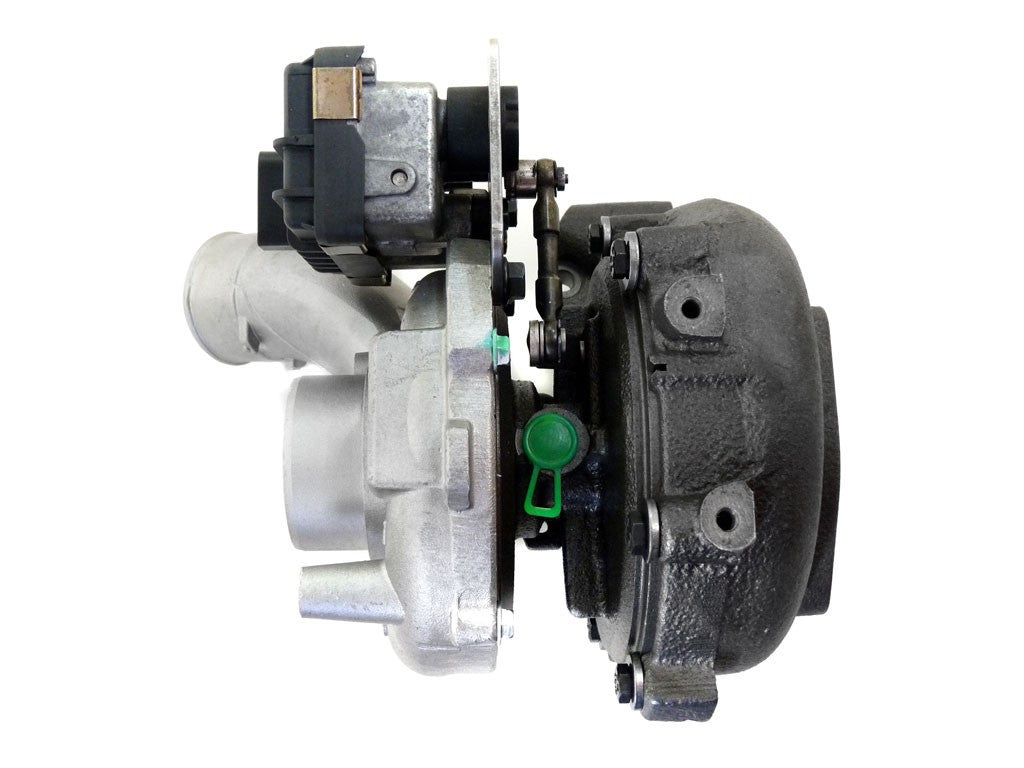

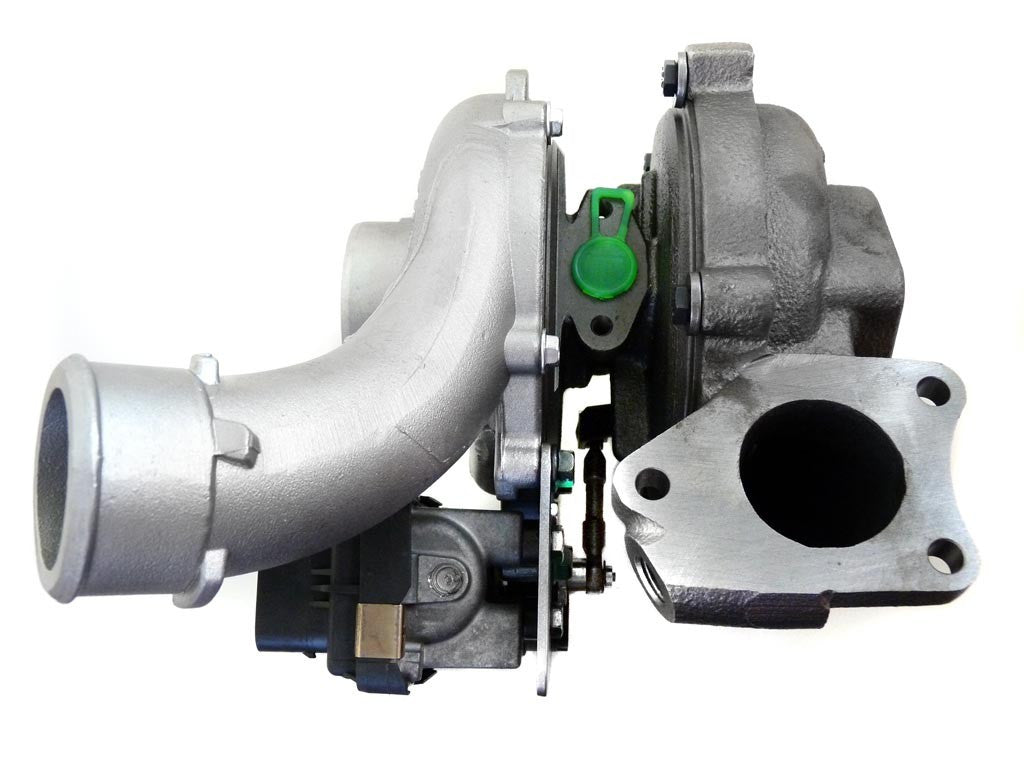

Turbo 769909-0009 (R)
Turbo 769909-0009 (R)
Regular price
€350,00 EUR
Regular price
Sale price
€350,00 EUR
Unit price
/
per
Couldn't load pickup availability
769909-0009 (059145722M, 6C1Q6K682EK) - Turbocharger
Brand: Garrett
Garrett Reference: 769909-0009
OEM Numbers: 059145722M, 6C1Q6K682EK
769909-0009 - Alternative numbers
GHO (Garrett original part number): 769909-0009
769909-0009 - Technologies and actuation
Actuation type: SREA (Simple Rotary Electronic Actuator), Electric (Electric actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
769909-0009 - Turbo replacements
Replaced by: Garrett GTB2260VK 776470-0003
769909-0009 - Turbo interchangeability
Interchangeable with: Garrett GTB2260VK 769909-0010
Interchangeable with: Garrett GTB2260VK 776470-0001
Interchangeable with: Garrett GTB2260VK 776470-0003
| Turbo 769909-0009 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| Hella | Actuator | 6NW009550-041 | 1 | -- | 767649-0020 |
| TurboCentras | Worm gear (el. actuator) | EAG-2 | 1 | -- | -- |
| TurboCentras | Electric motor | EAM-2 | 1 | -- | -- |
| TurboCentras | Shaft with rotor | EAS-1 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-207 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-53 | 1 | -- | -- |
| TurboCentras | Back plate | GT20-62 | 1 | -- | 730078-0001 |
| TurboCentras | Compressor wheel | GT22-07 | 1 | -- | 787571-0001 |
| TurboCentras | VNT gasket (turbine) | GT22-149-2 | 1 | -- | -- |
| TurboCentras | Cartridge | GT22-215 | 1 | -- | 755729-0074 |
| TurboCentras | Bearing housing | GT22-303 | 1 | -- | -- |
| TurboCentras | Heat shield | GT22-321 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GT22-42 | 1 | -- | -- |
| TurboCentras | VNT nozzle cage | GT22-700 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GT22-91 | 1 | -- | -- |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
059145722M, 6C1Q6K682EK, 769909-0009
Data updated: 2022-03-08 09:43:05
