Garrett
Turbo 781504-0007
Turbo 781504-0007
Couldn't load pickup availability

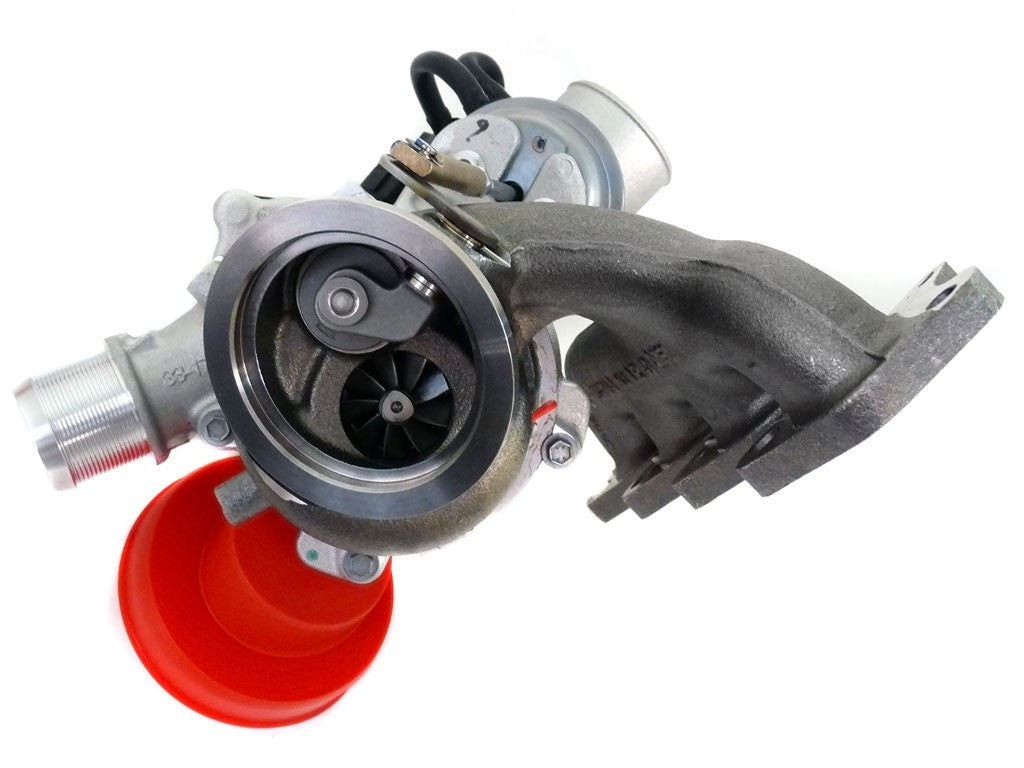

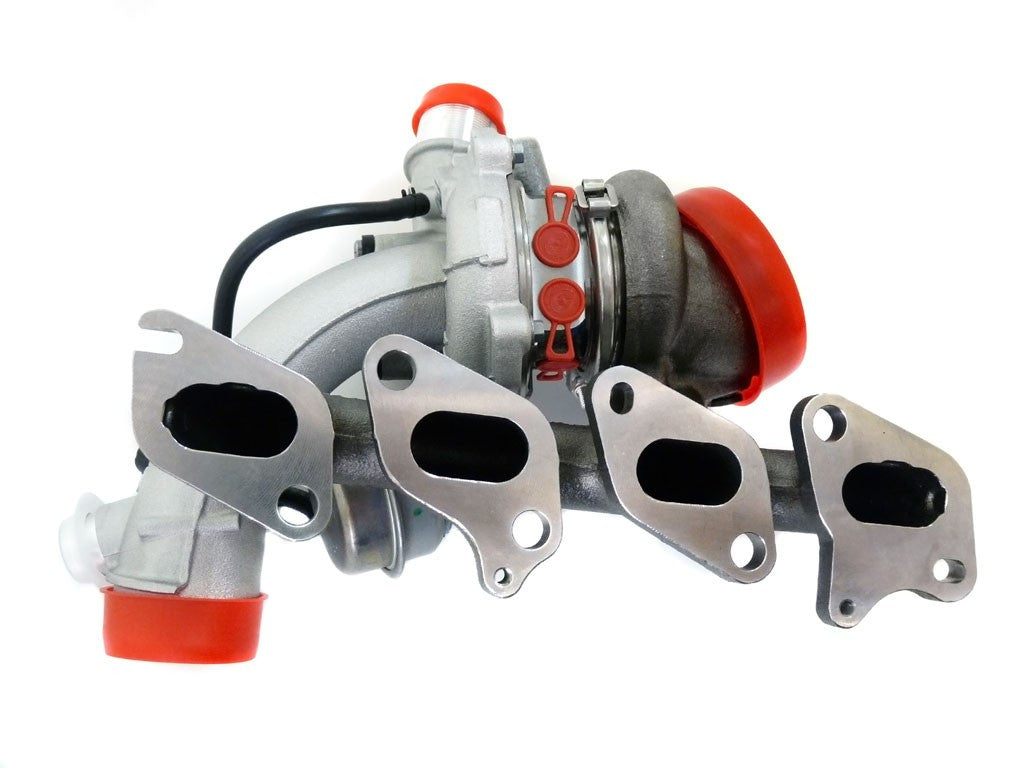

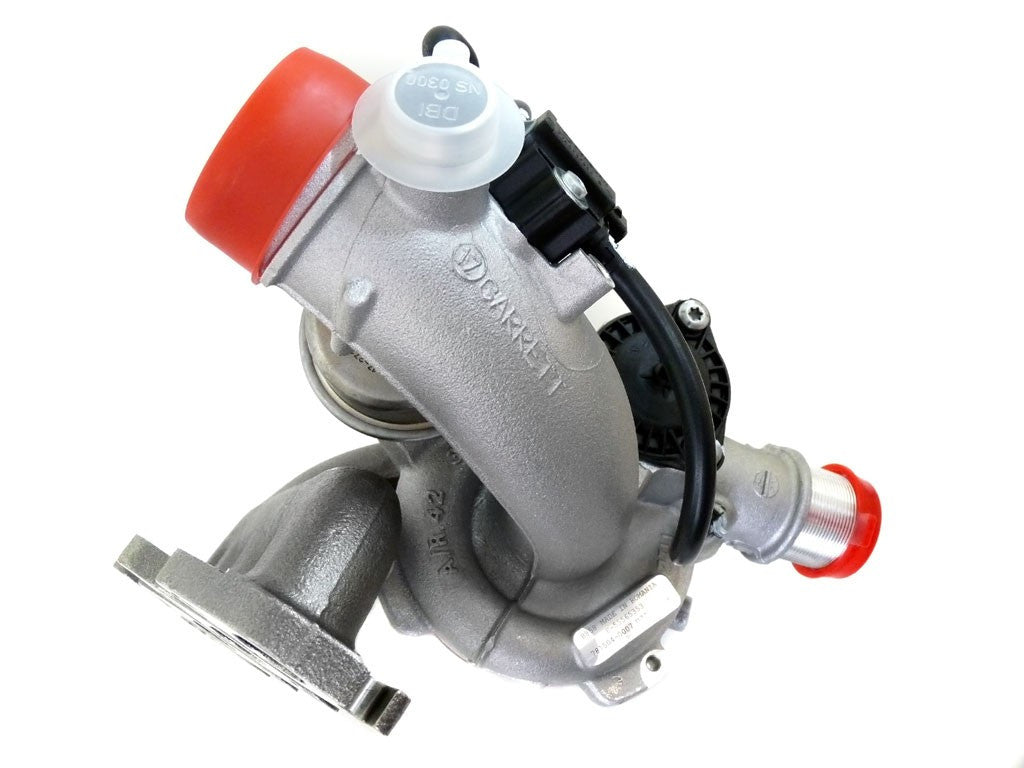

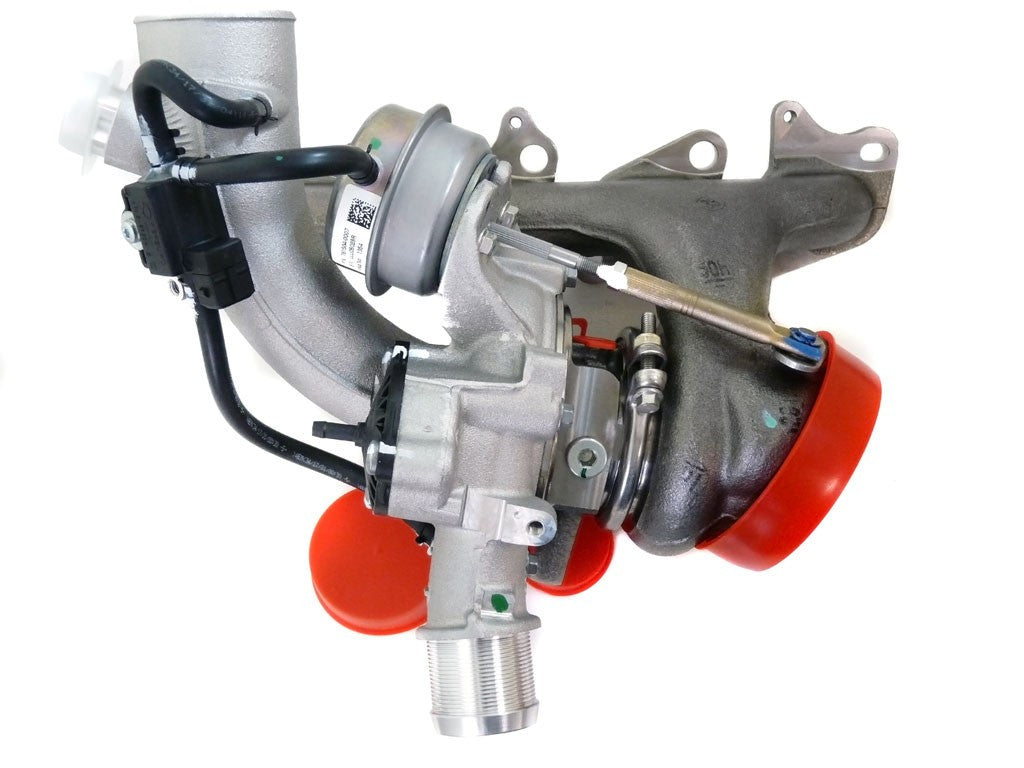

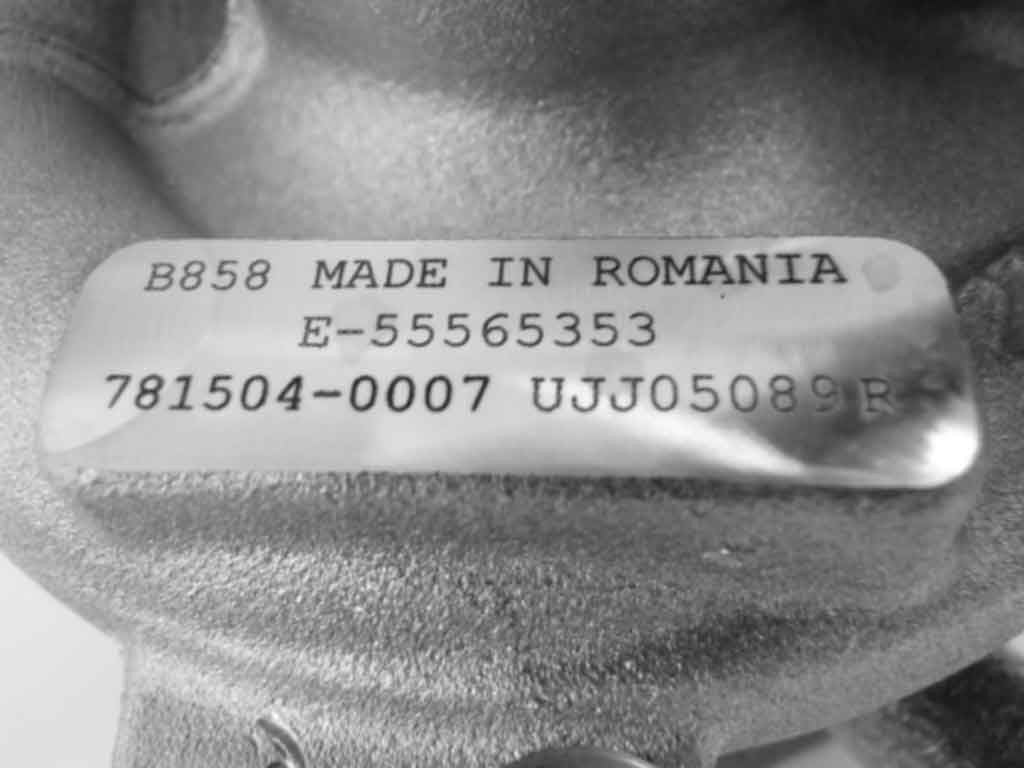

781504-0007 (5556535, E55565353) - Turbocharger MGT1446MZGL
Brand: Garrett
Model: MGT14 - MGT1446MZGL
Garrett Reference: 781504-0007
OEM Numbers: 5556535, E55565353
781504-0007 - Alternative numbers
GHT (Garrett turbo number): 781504-0007
GHT (Garrett turbo number): 781504-5007S
781504-0007 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: WGT (Wastegate Turbocharger), IMF (Integrated Manifold Turbocharger)
781504-0007 - Turbo replacements
Replaced by: Garrett MGT1446MZGL 781504-0014, 25201063, 781504-5014S
781504-0007 - Turbo interchangeability
Interchangeable with: BMTS BM 40007042, 0860156, 25201063, 55565353
Interchangeable with: BMTS BM 40007617, 0860156, 25201063, 55565353
Interchangeable with: Garrett MGT1446MZGL 781504-0001, 781504-5001S, E55565353
Interchangeable with: Garrett MGT1446MZGL 781504-0002, 781504-5002S, E55565353
Interchangeable with: Garrett MGT1446MZGL 781504-0004, 55565353, 781504-5004S
Interchangeable with: Garrett MGT1446MZGL 781504-0006, 781504-5006S, E55565353
Interchangeable with: Garrett MGT1446MZGL 781504-0007-R, 781504-0007, 781504-9007S, E55565353
Interchangeable with: Garrett MGT1446MZGL 781504-0011, 781504-5011S, E25198550
Interchangeable with: Garrett MGT1446MZGL 781504-0014, 25201063, 781504-5014S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | Cartridge | GA-00-0018 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0038 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0036 | 1 | 785507-0008 | -- |
| TurboCentras | Compressor wheel | GA-03-0012 | 1 | 786555-0003 | -- |
| TurboCentras | Repair kit | GA-04-0010 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0008 | 1 | -- | -- |
| TurboCentras | Turbine housing | GA-09-0003 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0010 | 1 | -- | -- |
| TurboCentras | Wastegate valve | GA-49-0004 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT12-100 | 1 | -- | -- |
| EE Turbo | Cartridge | GT14-013 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT14-130 | 1 | -- | -- |
| TurboCentras | Piston ring | GT14-160 | 3 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 3 | -- | -- |
| TurboCentras | Recirculation valve vac. | RV-GT14-1 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-8 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1085 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1085F | 1 | -- | -- |
5556535, 781504-0007, 781504-5007S, E55565353
Data updated: 2024-11-18 11:14:24
