Garrett

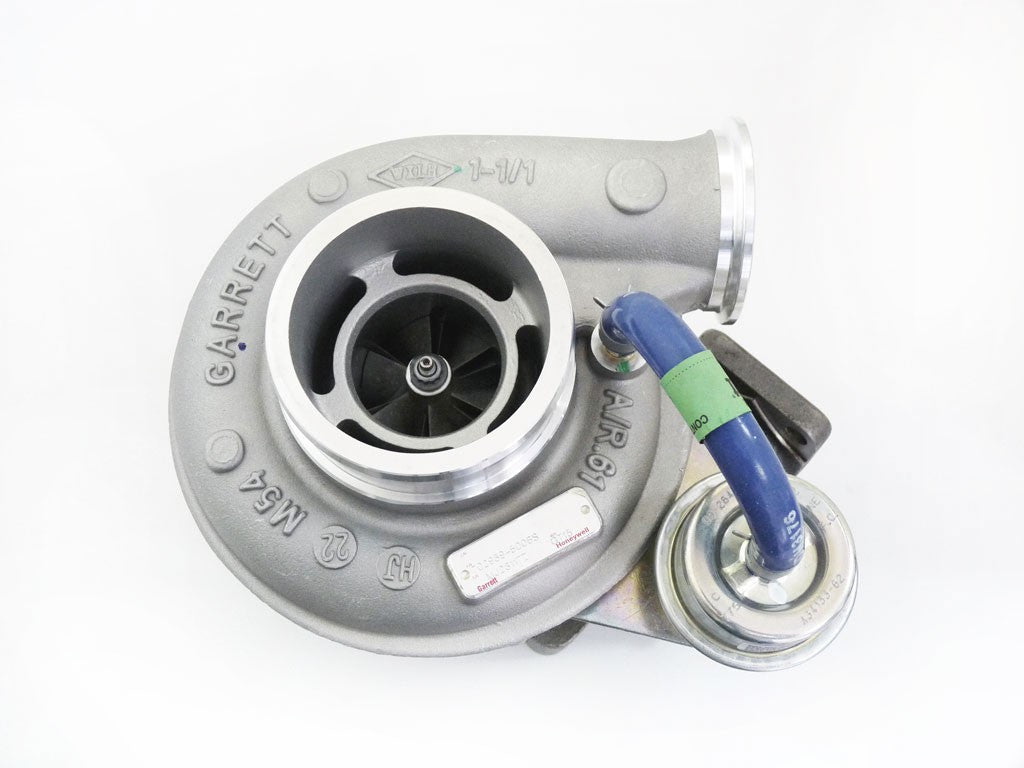

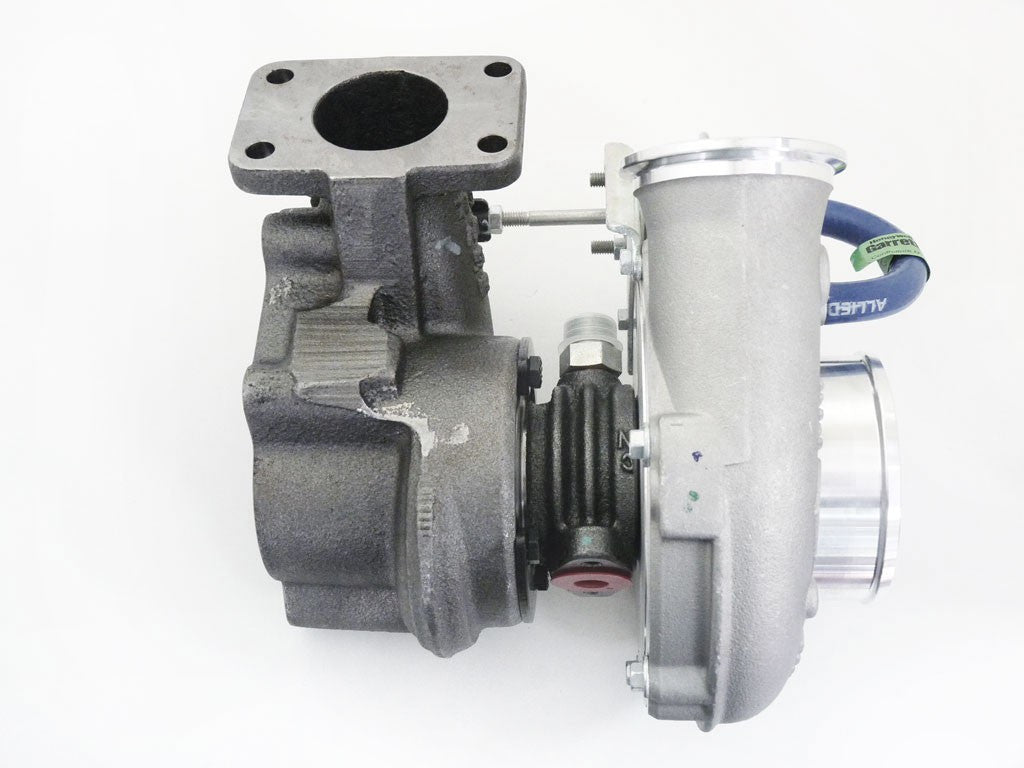

Turbo 702989-5006S
Turbo 702989-5006S
Regular price
€450,00 EUR
Regular price
Sale price
€450,00 EUR
Unit price
/
per
Couldn't load pickup availability
702989-5006S (504094261) - Turbocharger GT2259S
Brand: Garrett
Model: GT22 - GT2259S
Garrett Reference: 702989-5006S
OEM Numbers: 504094261
702989-5006S - Alternative numbers
GHT (Garrett turbo number): 702989-0006
GHT (Garrett turbo number): 702989-5006S
702989-5006S - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: WGT (Wastegate Turbocharger)
702989-5006S - Turbo replacements
Replaced by: Garrett GT2259NS 878998-0001
702989-5006S - Turbo interchangeability
Interchangeable with: Garrett GT2259S 702989-0006
Interchangeable with: Garrett GT2259S 702989-0006-R
Interchangeable with: Garrett GT2259NS 878998-0001
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0222 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0183 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0105 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0085 | 1 | 702549-0003, 702549-0010, 702549-0019, 702549-0023 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0027 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0051 | 1 | 721019-0002 | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT22-011 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
504094261, 702989-0006, 702989-5006S
Data updated: 2024-05-16 08:38:36
