Garrett
Turbo 792290-0002-R
Turbo 792290-0002-R
Regular price
€289,26 EUR
Regular price
Sale price
€289,26 EUR
Unit price
/
per
Couldn't load pickup availability

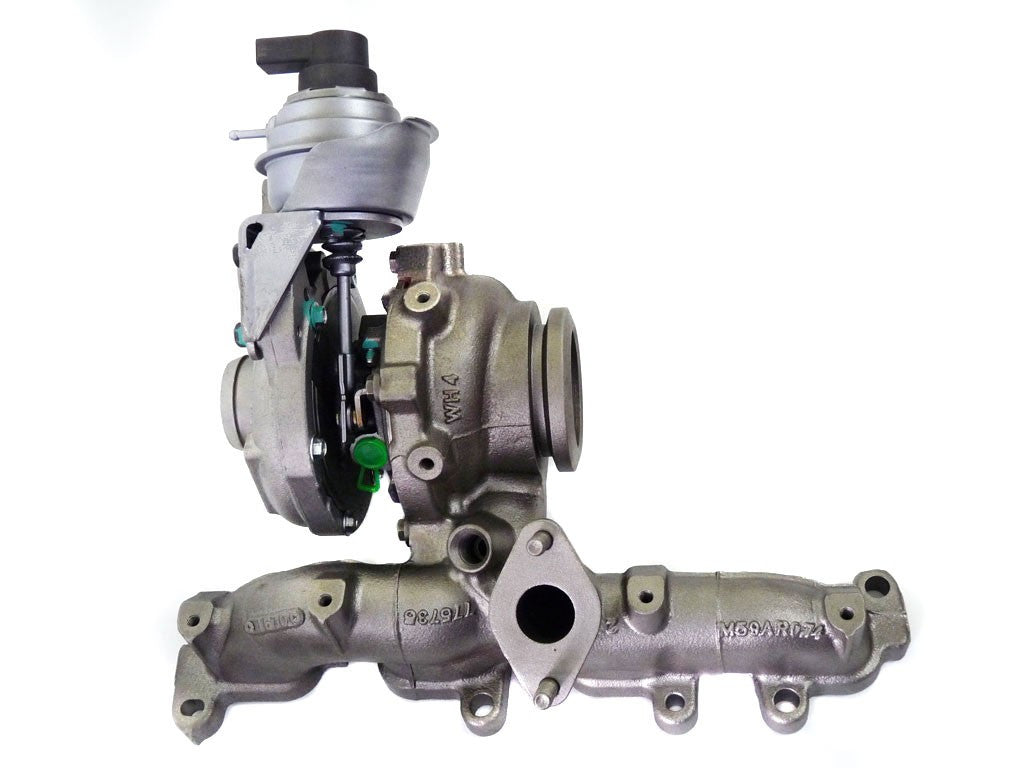

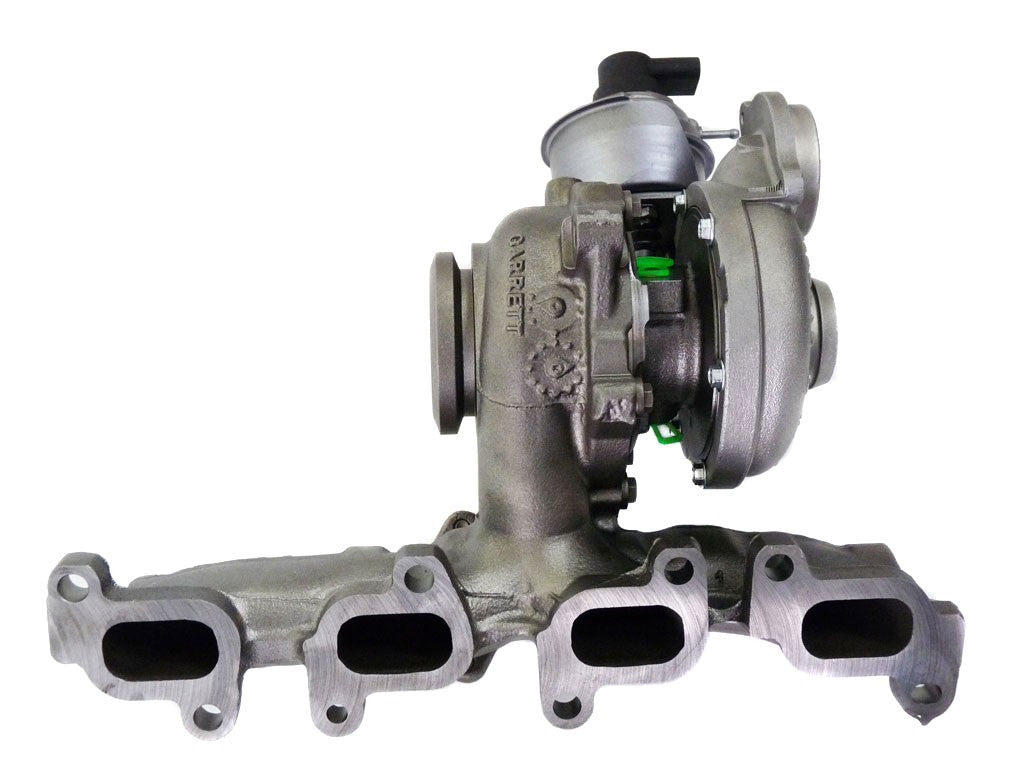

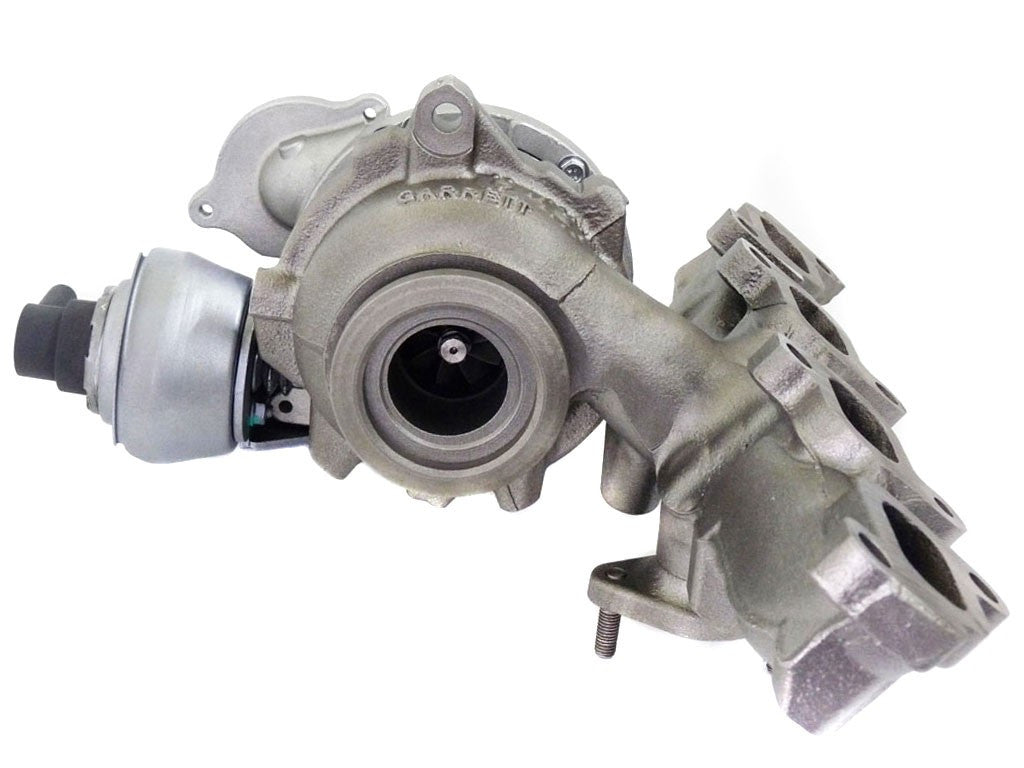

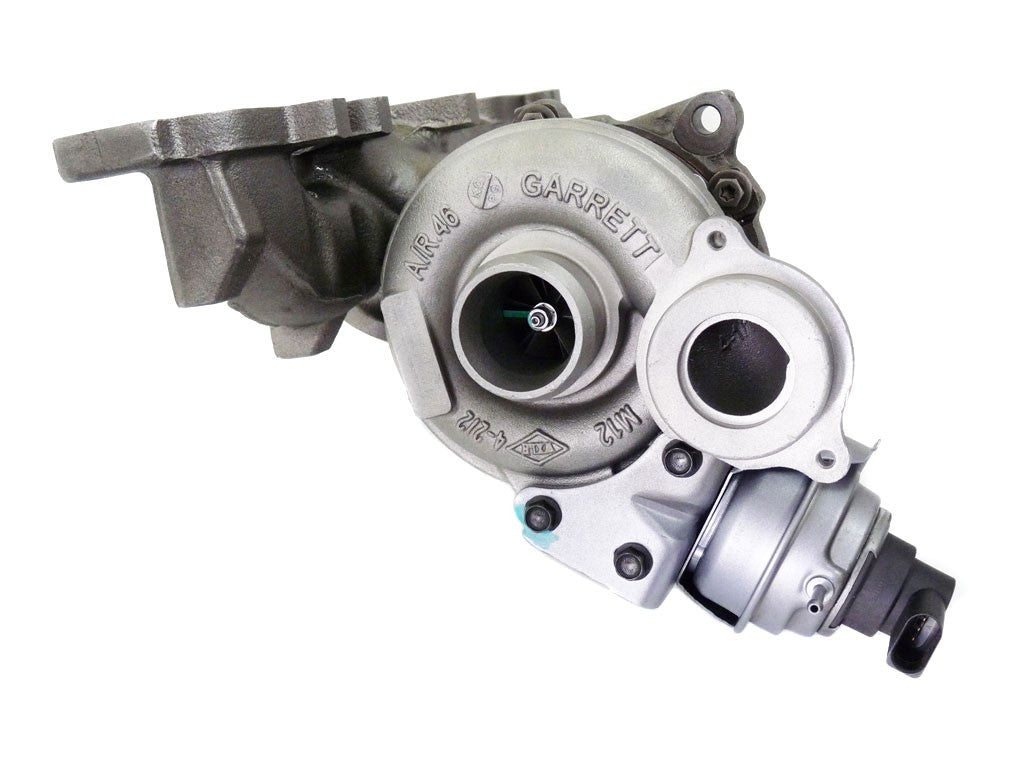

792290-0002 (03L253016M) - Turbocharger GTB1446VZ
Brand: Garrett
Model: GT14 - GTB1446VZ
Garrett Reference: 792290-0002
OEM Numbers: 03L253016M
792290-0002 - Alternative numbers
GHT (Garrett turbo number): 792290-0002
GHT (Garrett turbo number): 792290-5002S
792290-0002 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator), Vacuum (Vacuum actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
792290-0002 - Turbo replacements
Replaced by: Garrett GTB1446VZ 792290-0004, 03L253016M, 03L253016MV700, 792290-5004S, 792290-9004S
792290-0002 - Turbo interchangeability
Interchangeable with: Garrett GTB1446VZ 792290-0003, 03L253016M, 792290-5003S
Interchangeable with: Garrett GTB1446VZ 792290-0004, 03L253016M, 03L253016MV700, 792290-5004S, 792290-9004S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Actuator sensor | AS-5 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | Cartridge | GA-00-0021 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0034 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0030 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0012 | 1 | 786555-0003 | -- |
| TurboCentras | Repair kit | GA-04-0007 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0001 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0013 | 1 | -- | -- |
| EE Turbo | Cartridge | GT14-018 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT14-130 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | GT14-149-1 | 1 | -- | -- |
| TurboCentras | Piston ring | GT14-160 | 3 | -- | -- |
| TurboCentras | VNT Ring | GT14-93-1 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 3 | -- | -- |
| TurboCentras | Gasket kit | TC1053 | 1 | -- | -- |
03L253016M, 792290-0002, 792290-5002S
Data updated: 2024-10-22 14:31:58
