Garrett
Turbo 757042-0013-R
Turbo 757042-0013-R
Couldn't load pickup availability

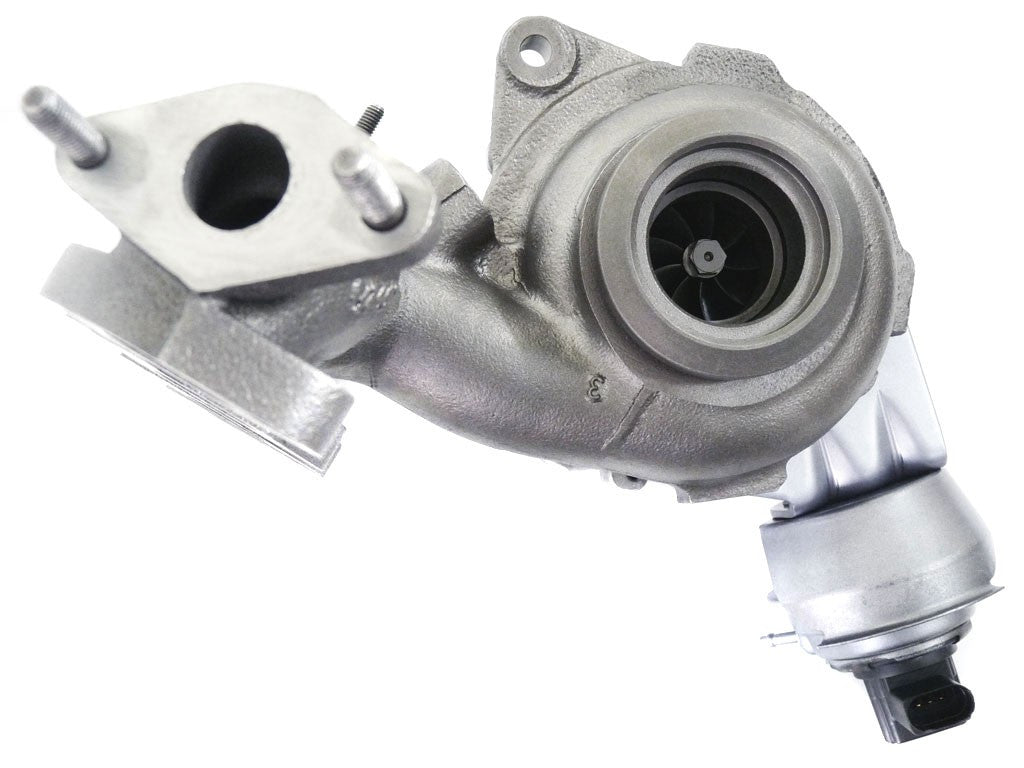

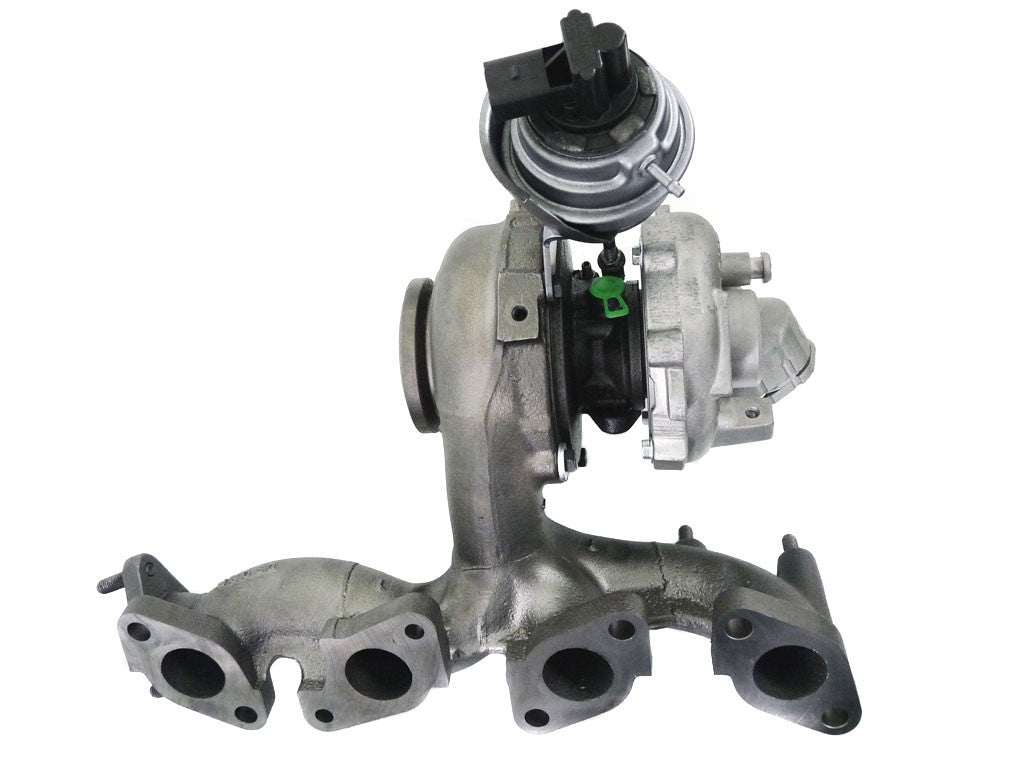

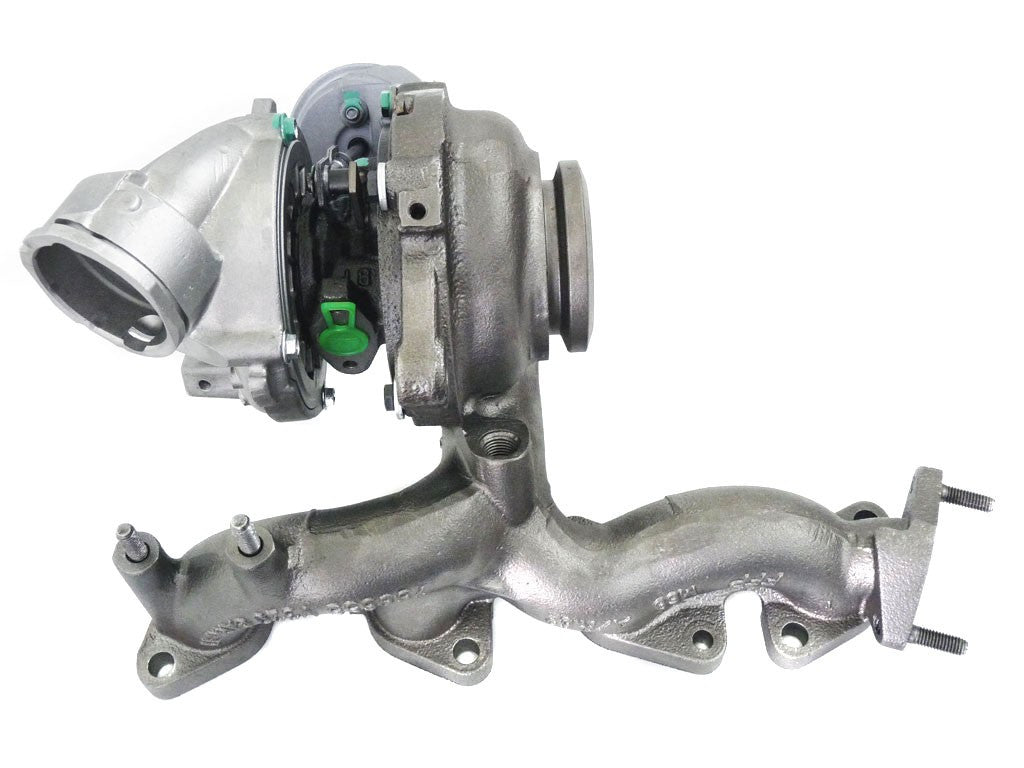

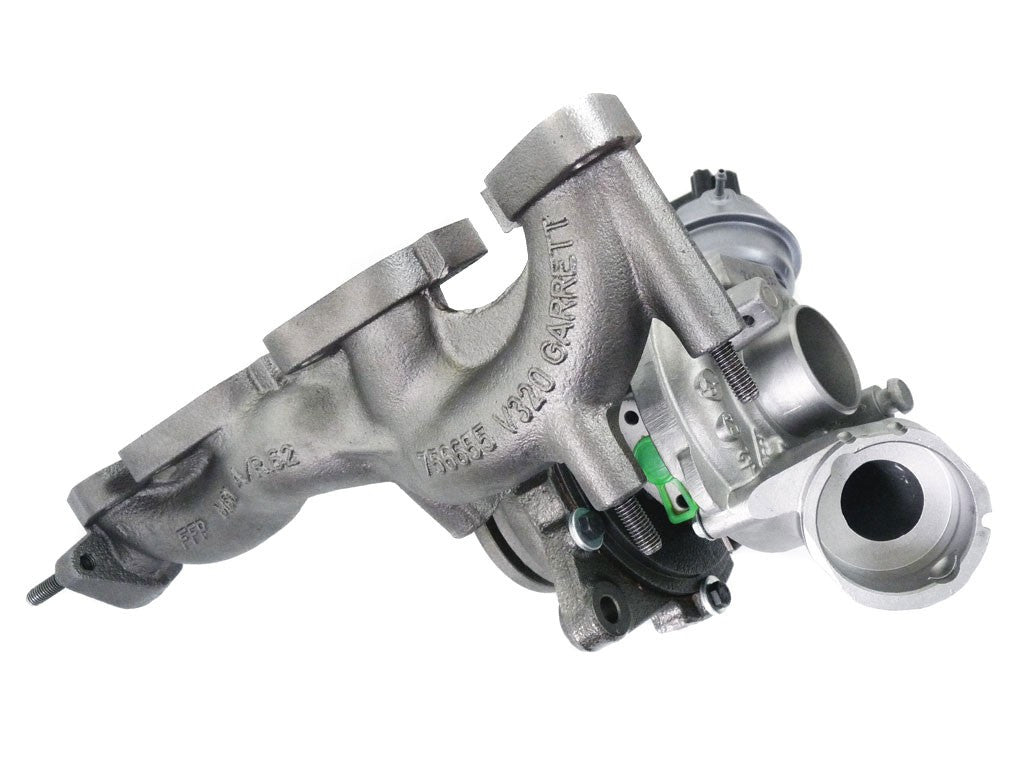

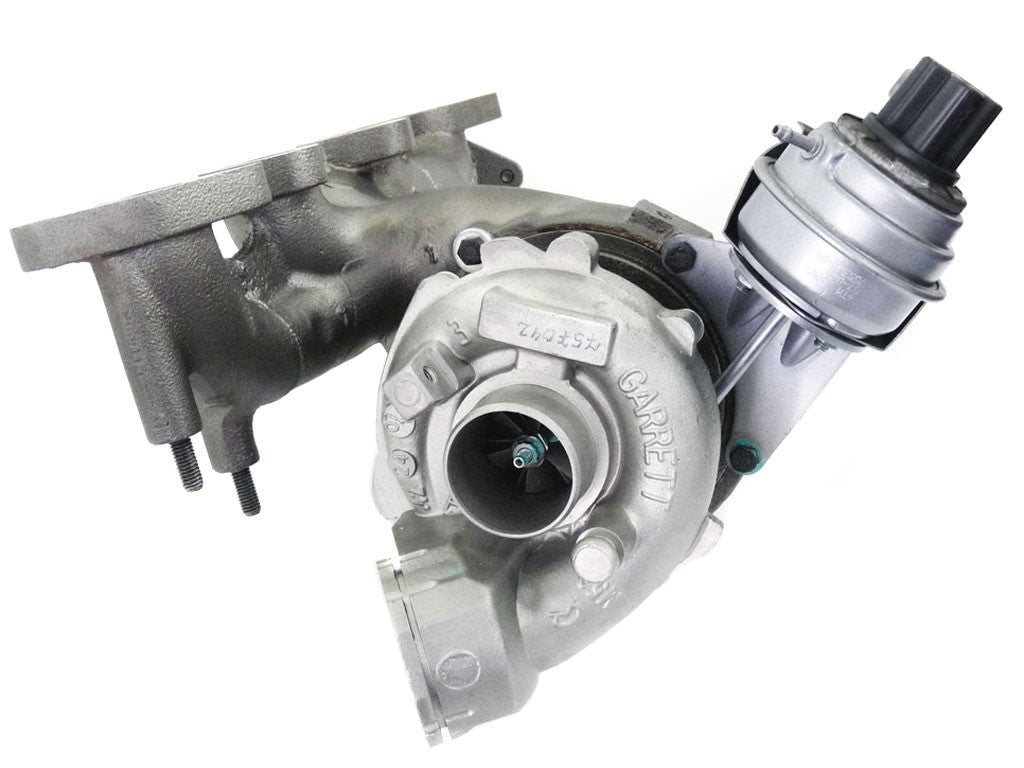

757042-0013 (03G253014KV100) - Turbocharger GTB1749MV
Brand: Garrett
Model: GT17 - GTB1749MV
Garrett Reference: 757042-0013
OEM Numbers: 03G253014KV100
757042-0013 - Alternative numbers
GHT (Garrett turbo number): 757042-0013
GHT (Garrett turbo number): 757042-5013S
757042-0013 - Technologies and actuation
Actuation type: APS (Pneumatic actuator with position sensor)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
757042-0013 - Turbo replacements
Replaced by: Garrett GTB1749MV 757042-0018, 03G253010AV100, 757042-5018S, 757042-9018S
757042-0013 - Turbo interchangeability
Interchangeable with: Garrett GTB1749MV 757042-0008, 03G253010AV100, 757042-5008S
Interchangeable with: Garrett GTB1749MV 757042-0010, 03G253019NV395, 757042-5010S
Interchangeable with: Garrett GTB1749MV 757042-0011, 03G253010AV100, 757042-5011S
Interchangeable with: Garrett GTB1749MV 757042-0014, 03G253010A, 757042-5014S
Interchangeable with: Garrett GTB1749MV 757042-0015, 03G253010AV100, 757042-5015S
Interchangeable with: Garrett GTB1749MV 757042-0016, 03G253010AV100, 757042-5016S
Interchangeable with: Garrett GTB1749MV 757042-0017, 03G253010A
Interchangeable with: Garrett GTB1749MV 757042-0018, 03G253010AV100, 757042-5018S, 757042-9018S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Actuator sensor | AS-3 | 1 | -- | -- |
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0114 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0068 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0079 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0075 | 1 | 735492-0002, 784361-0002 | -- |
| TurboCentras | Repair kit | GA-04-0016 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0015 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0027 | 1 | -- | -- |
| TurboCentras | VNT nozzle cage | GA-07-0011 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0034 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0031 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT17-043 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1017 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
03G253014KV100, 757042-0013, 757042-5013S
Data updated: 2025-04-14 15:49:29
