Garrett

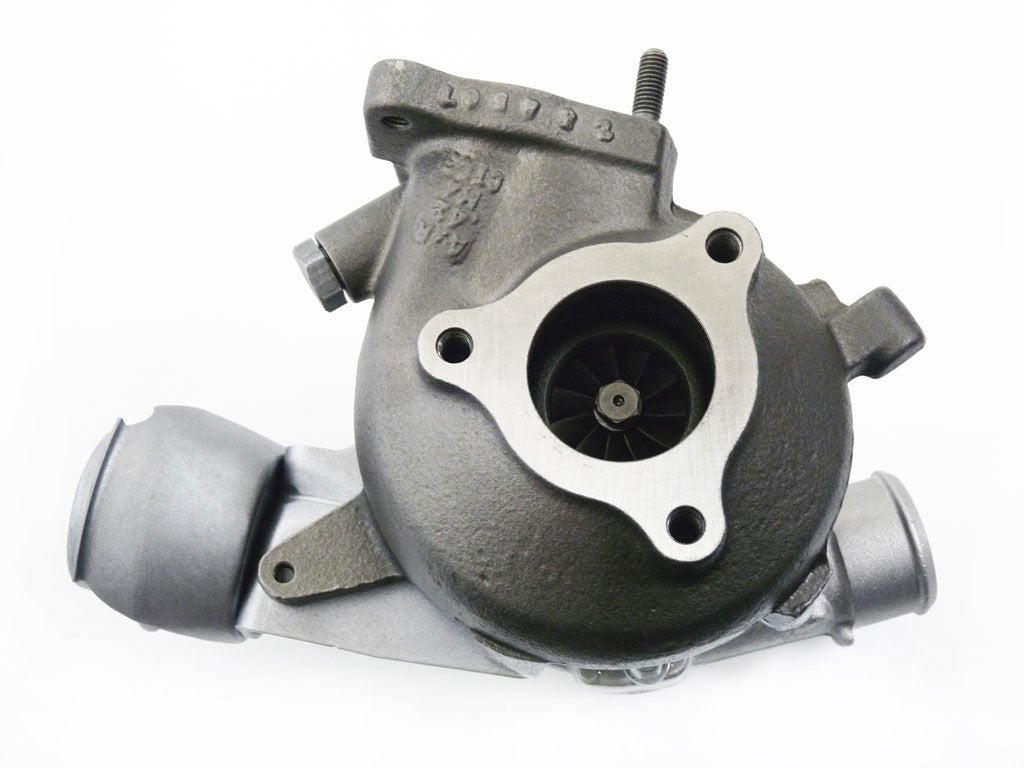

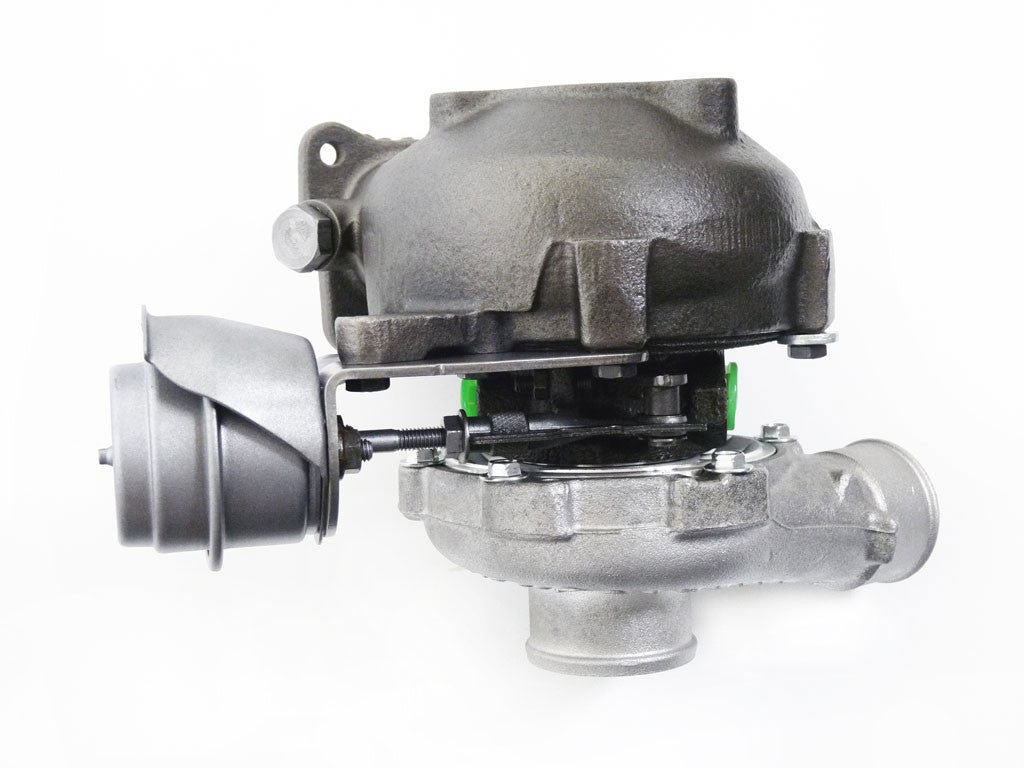

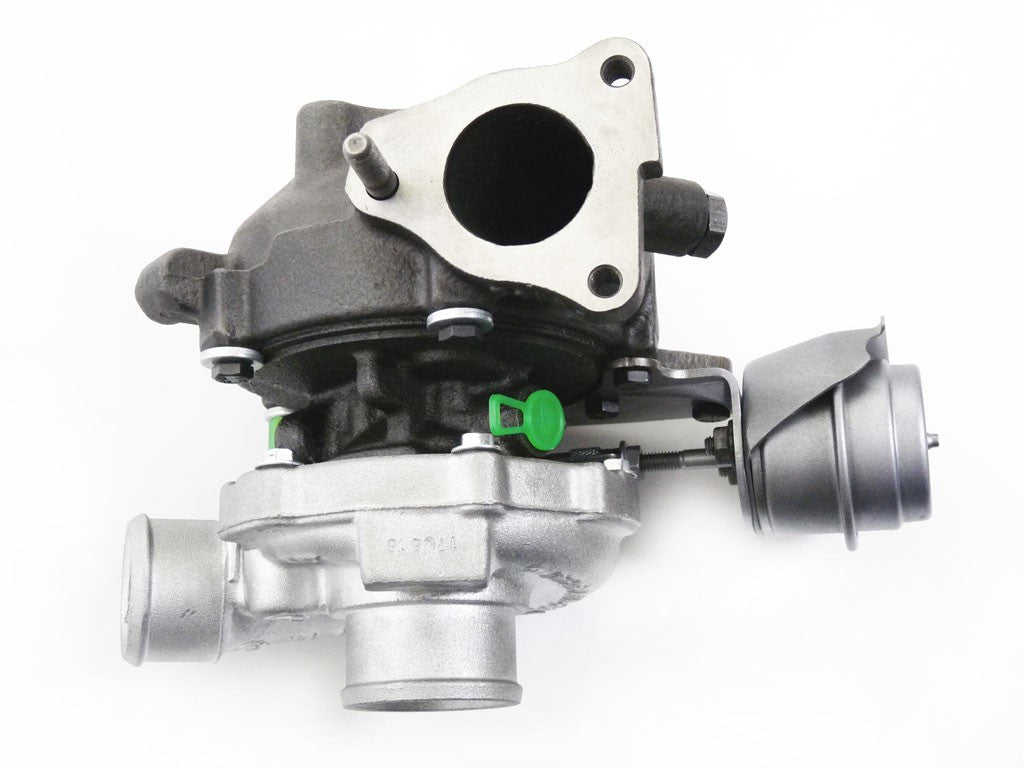

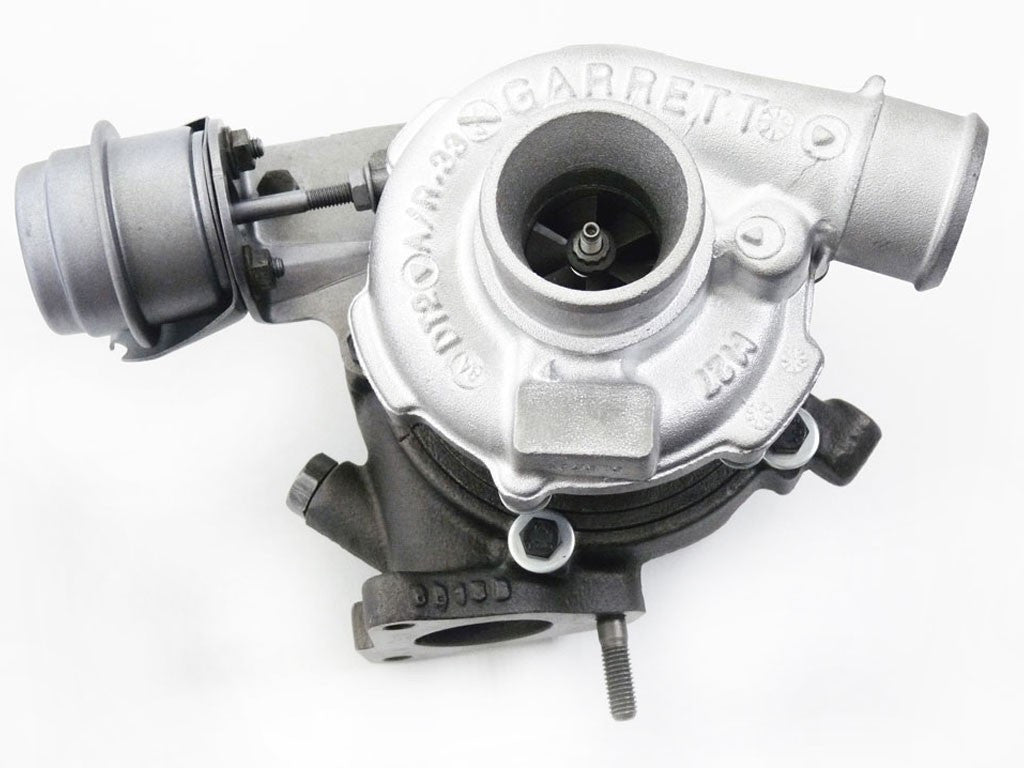

Turbo 766111-0001-R 766111-0001 (R)
Turbo 766111-0001-R 766111-0001 (R)
Regular price
€231,40 EUR
Regular price
Sale price
€231,40 EUR
Unit price
/
per
Couldn't load pickup availability
766111-0001-R (282012A610) - Turbocharger GT1544V
Brand: Garrett
Model: GT15 - GT1544V
Garrett Reference: 766111-0001-R
OEM Numbers: 282012A610
766111-0001-R - Alternative numbers
GHT (Garrett turbo number): 766111-0001
GHT (Garrett turbo number): 766111-5001
GHT (Garrett turbo number): 766111-5001S
GHT (Garrett turbo number): 766111-9001S
766111-0001-R - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
766111-0001-R - Turbo interchangeability
Interchangeable with: Garrett GT1544V 766111-0001
Interchangeable with: Garrett GT1544V 766111-5001
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0070 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0063 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0049 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0052 | 1 | 704771-0002, 704771-0009 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0010 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0014 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0013 | 1 | 700593-0001 | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| EE Turbo | Cartridge | GT15-051 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | VNT Nozzle ring | GT15-90-1 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1049 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
282012A610, 766111-0001, 766111-5001, 766111-5001S, 766111-9001S
Data updated: 2024-05-07 09:38:27
