Garrett
Turbo 765016-0003-R
Turbo 765016-0003-R
Regular price
€231,40 EUR
Regular price
Sale price
€231,40 EUR
Unit price
/
per
Couldn't load pickup availability

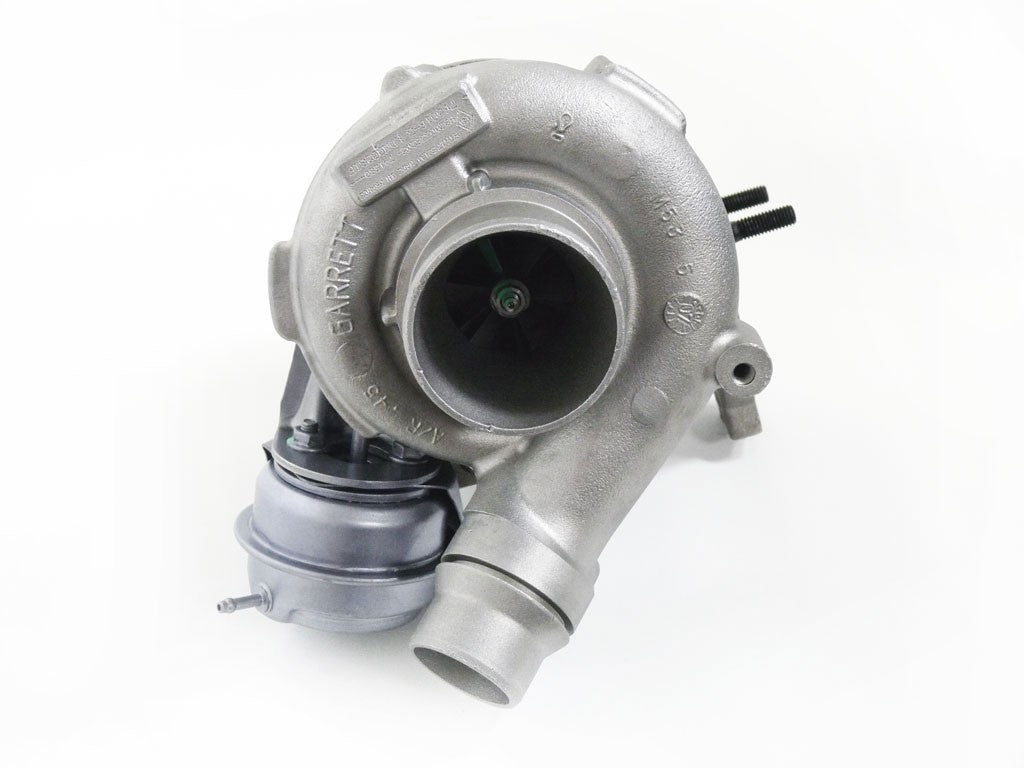

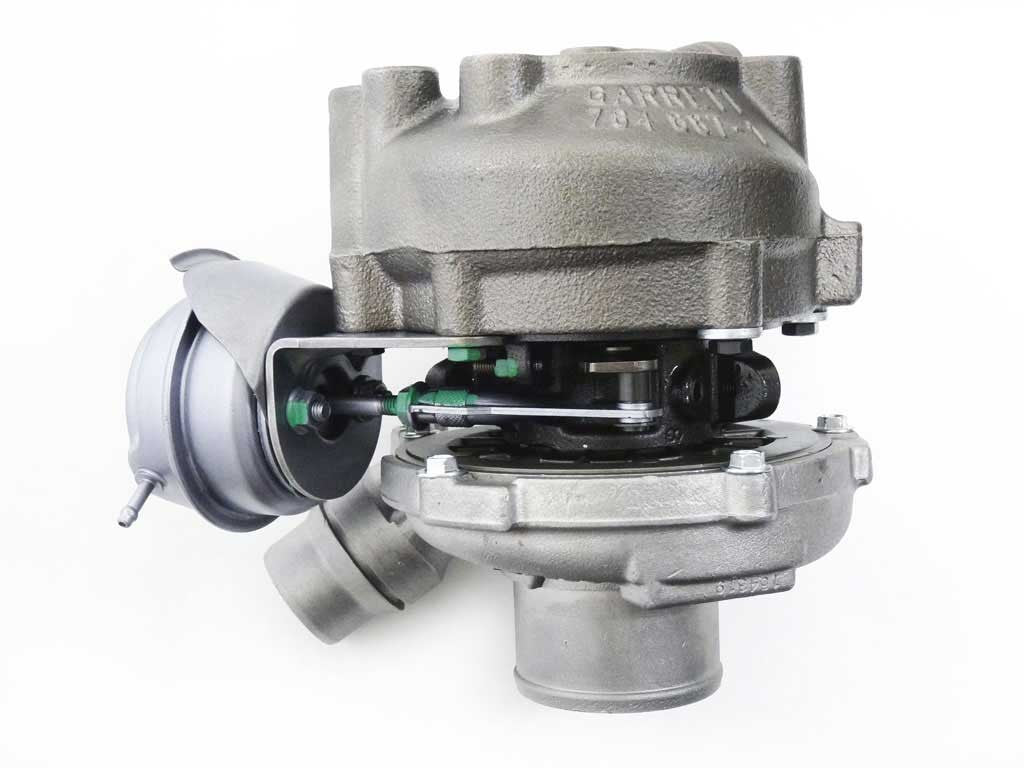

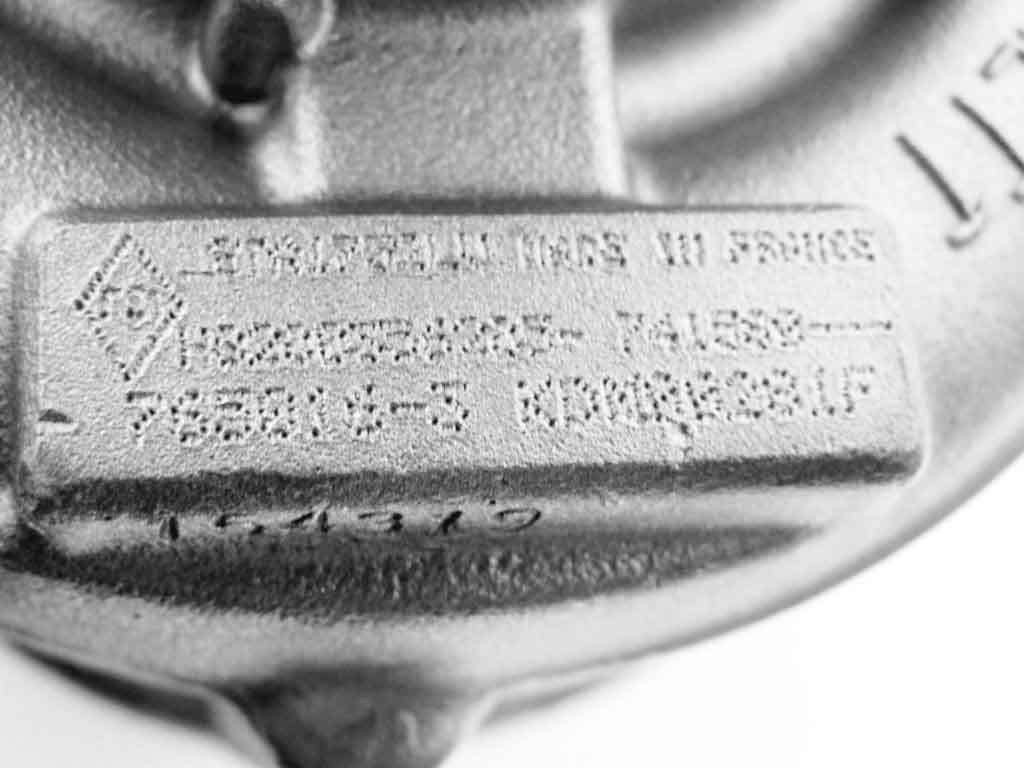

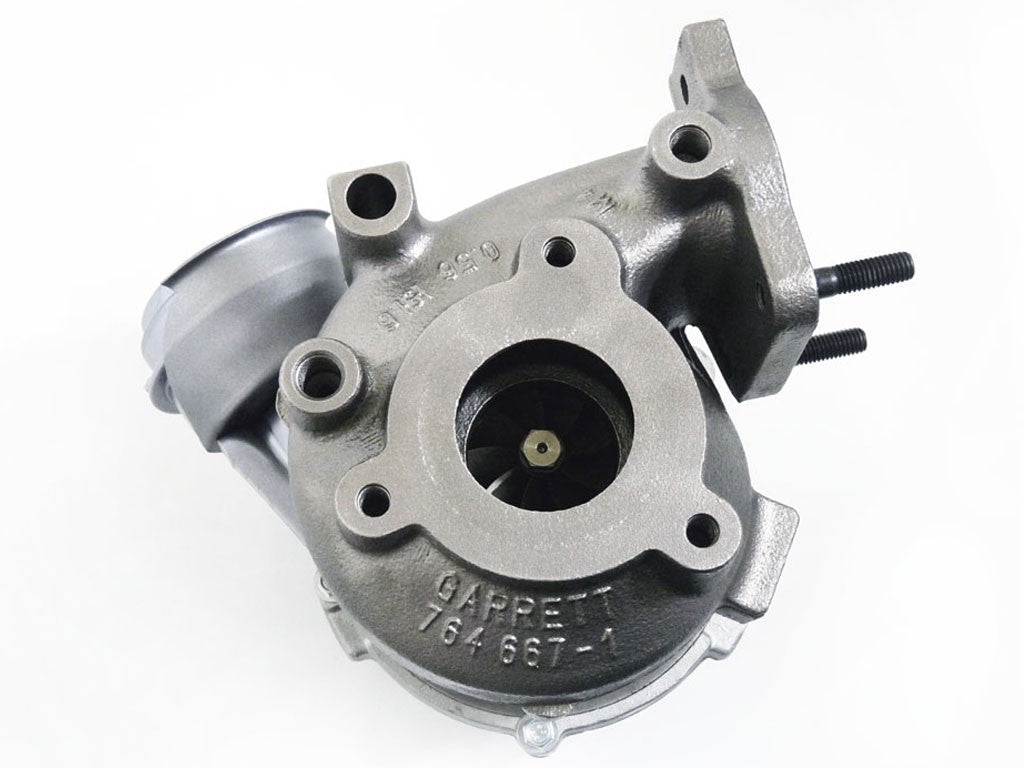

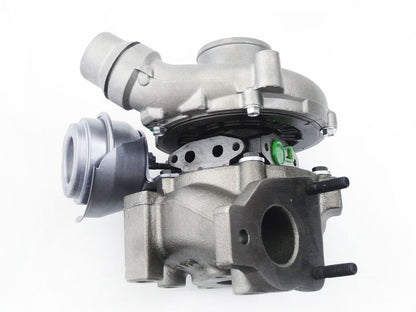

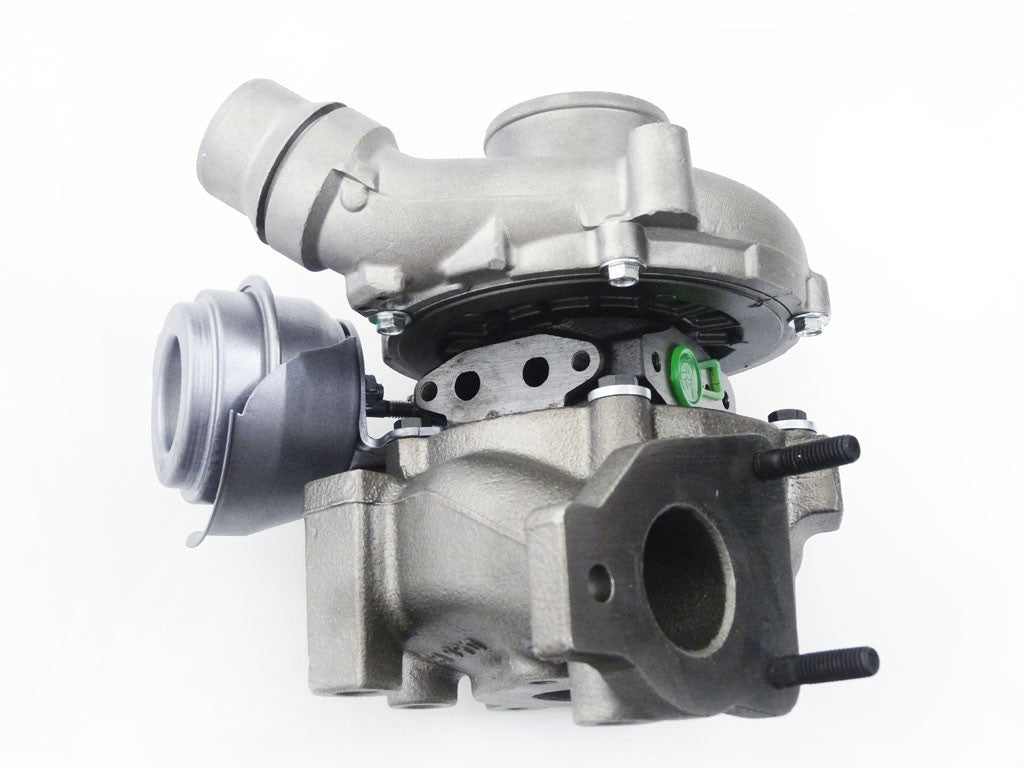

765016-0003 (7701476620, 7701477162, 8200741580) - Turbocharger GTA1752LV
Brand: Garrett
Model: GT17 - GTA1752LV
Garrett Reference: 765016-0003
OEM Numbers: 7701476620, 7701477162, 8200741580, 8201124245, 8201124252
765016-0003 - Alternative numbers
GHT (Garrett turbo number): 765016-0003
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0138 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0062 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0061 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0055 | 1 | 735475-0002, 784363-0002 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0011 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0026 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT17-090 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-2 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-2-2 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
765016-0003, 7701476620, 7701477162, 8200741580, 8201124245, 8201124252
Data updated: 2025-07-24 08:07:00
