BorgWarner
Turbo 54359700006-R (R)
Turbo 54359700006-R (R)
Regular price
€231,40 EUR
Regular price
Sale price
€231,40 EUR
Unit price
/
per
Couldn't load pickup availability

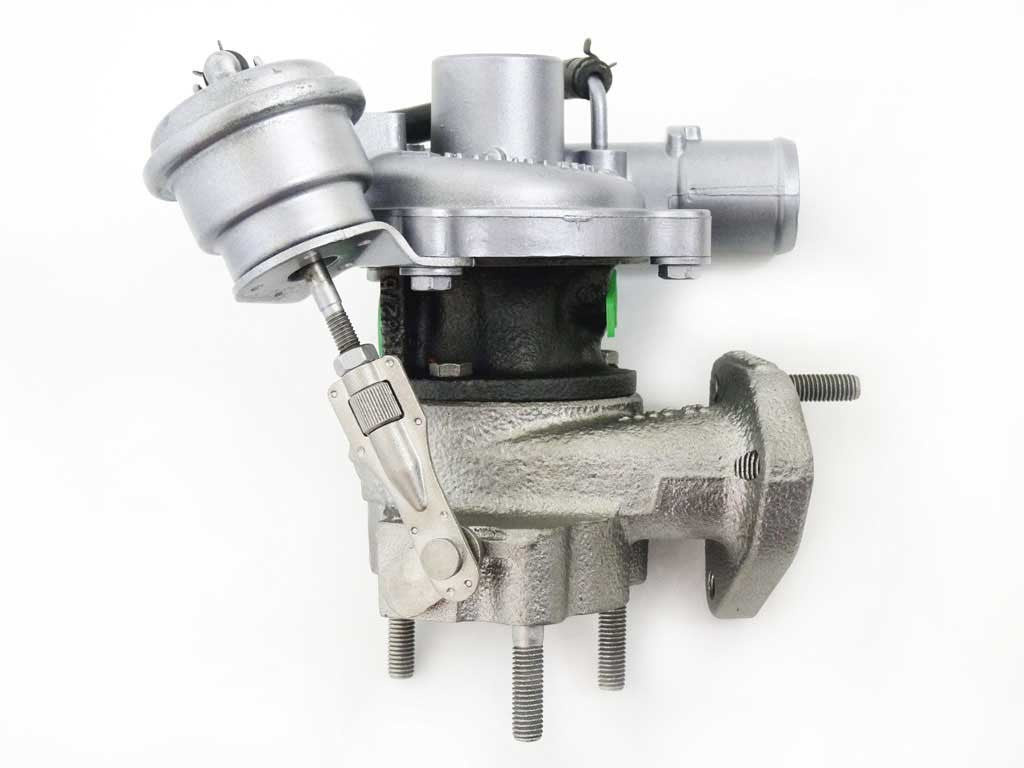

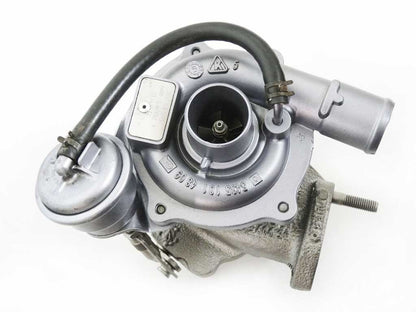

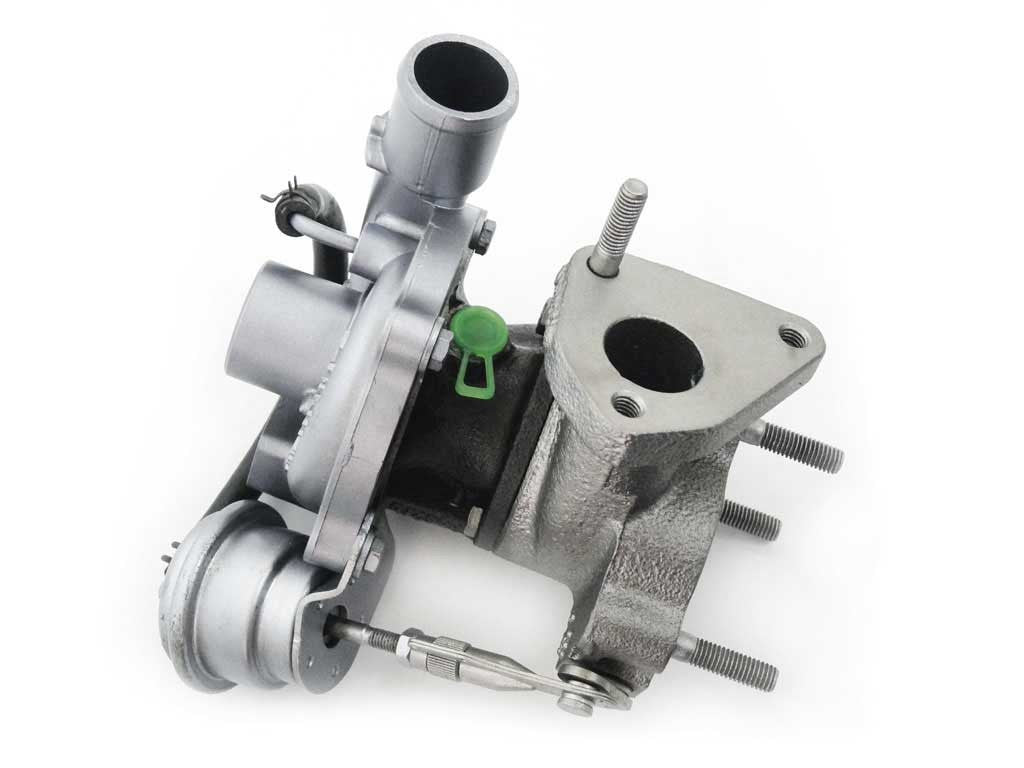

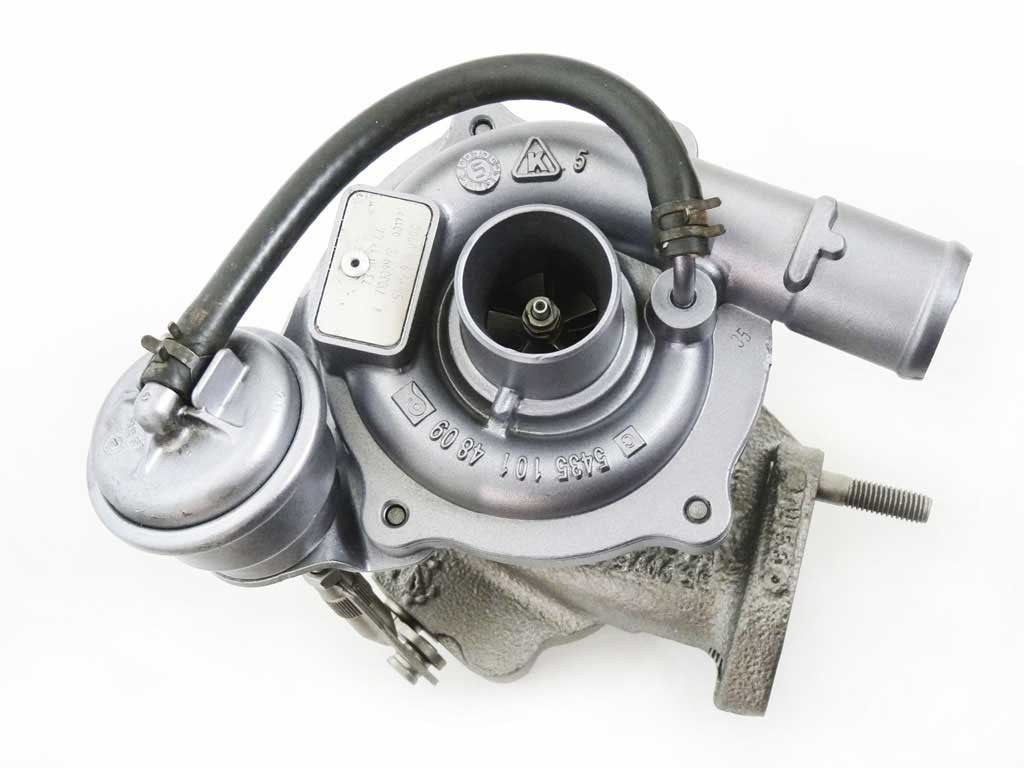

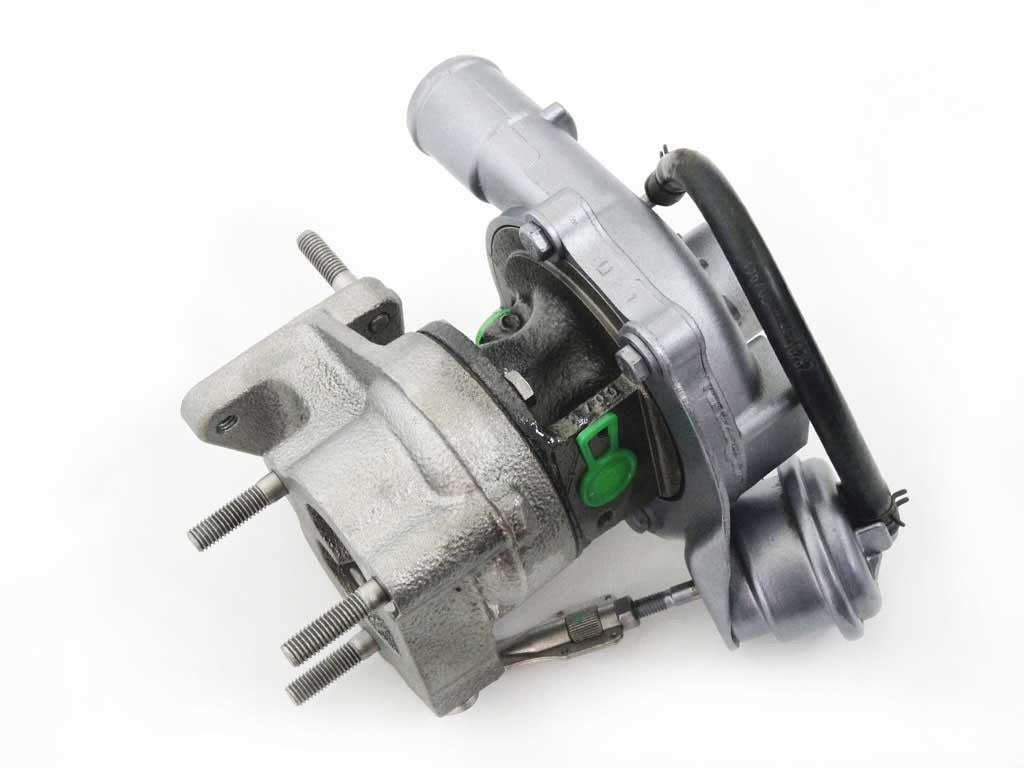

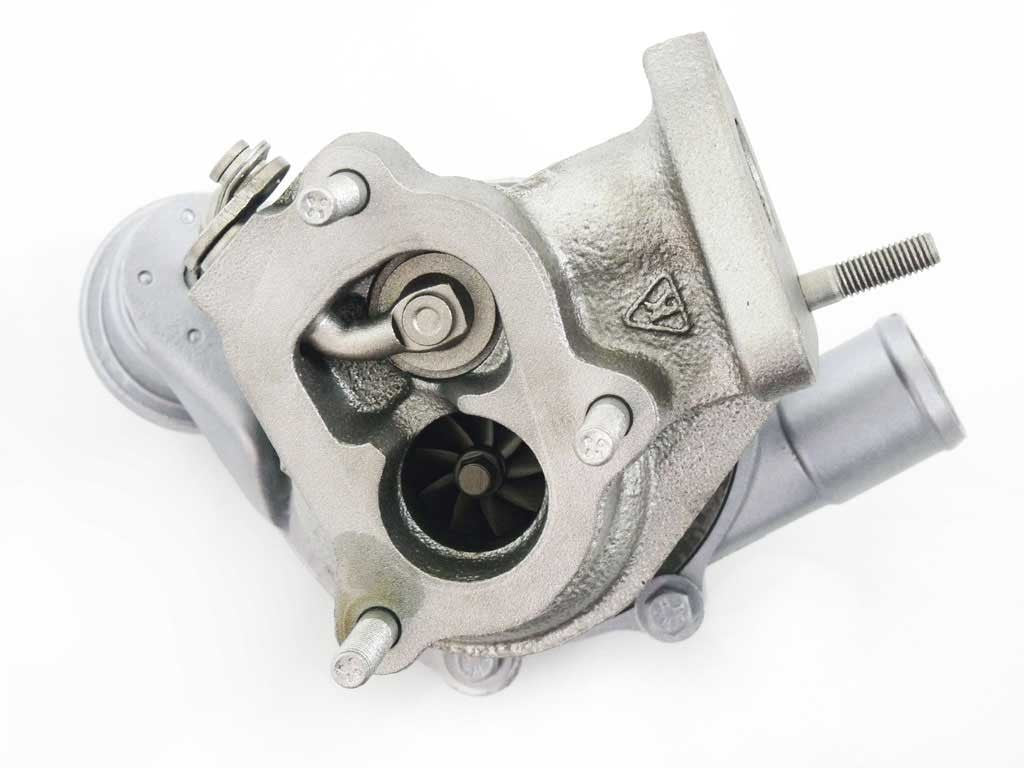

54359700006-R (73501344, 860067, 93177409) - Turbocharger KP35-1570CBC180.85ACAXD
Brand: BorgWarner
Model: KP35 - KP35-1570CBC180.85ACAXD
BorgWarner Reference: 54359700006-R
OEM Numbers: 73501344, 860067, 93177409
54359700006-R - Alternative numbers
BWT (BorgWarner turbo number): 5435 970 0006
BWT (BorgWarner turbo number): 5435 988 0006
BWT (BorgWarner turbo number): 5435 990 0006
54359700006-R - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: WGT (Wastegate Turbocharger)
54359700006-R - Turbo interchangeability
Interchangeable with: BorgWarner KP35-1570CBC180.85ACAXD 54359700006
Interchangeable with: BorgWarner KP35-1570CBC180.85ACAXD 54359710006
Interchangeable with: BorgWarner KP35-1570CBC180.85ACAXD 54359880006
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0001 | 2 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0007 | 6 | -- | -- |
| TurboCentras | Cartridge | BW-00-0024 | 1 | -- | 5435 710 0505 |
| TurboCentras | Bearing housing | BW-01-0023 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0020 | 1 | 5435-120-5013, 5435-120-5017 | -- |
| TurboCentras | Compressor wheel | BW-03-0037 | 1 | 5435-123-2005 | -- |
| TurboCentras | Repair kit | BW-04-0052 | 1 | -- | -- |
| TurboCentras | Heat shield | BW-05-0011 | 1 | -- | -- |
| TurboCentras | Back plate | BW-08-0007 | 1 | -- | -- |
| TurboCentras | Actuator | BW-10-0013 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 2 | -- | -- |
| TurboCentras | Piston ring | K03/04-170 | 2 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-130 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-131 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-201 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
54359900006, 54359880006, 54359700006, 5435 970 0006, 5435 988 0006, 5435 990 0006, 73501344, 860067, 93177409
Data updated: 2024-08-21 10:39:09
