BorgWarner
Turbo 10009700113 (R)
Turbo 10009700113 (R)
Regular price
€479,34 EUR
Regular price
Sale price
€479,34 EUR
Unit price
/
per
Couldn't load pickup availability

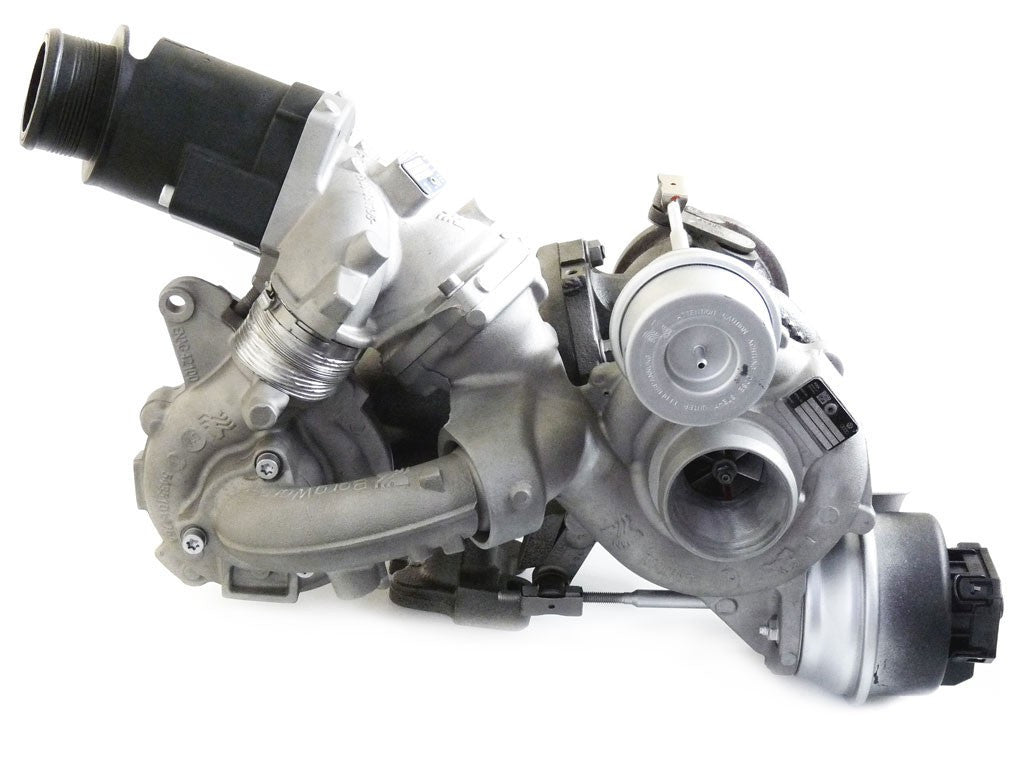

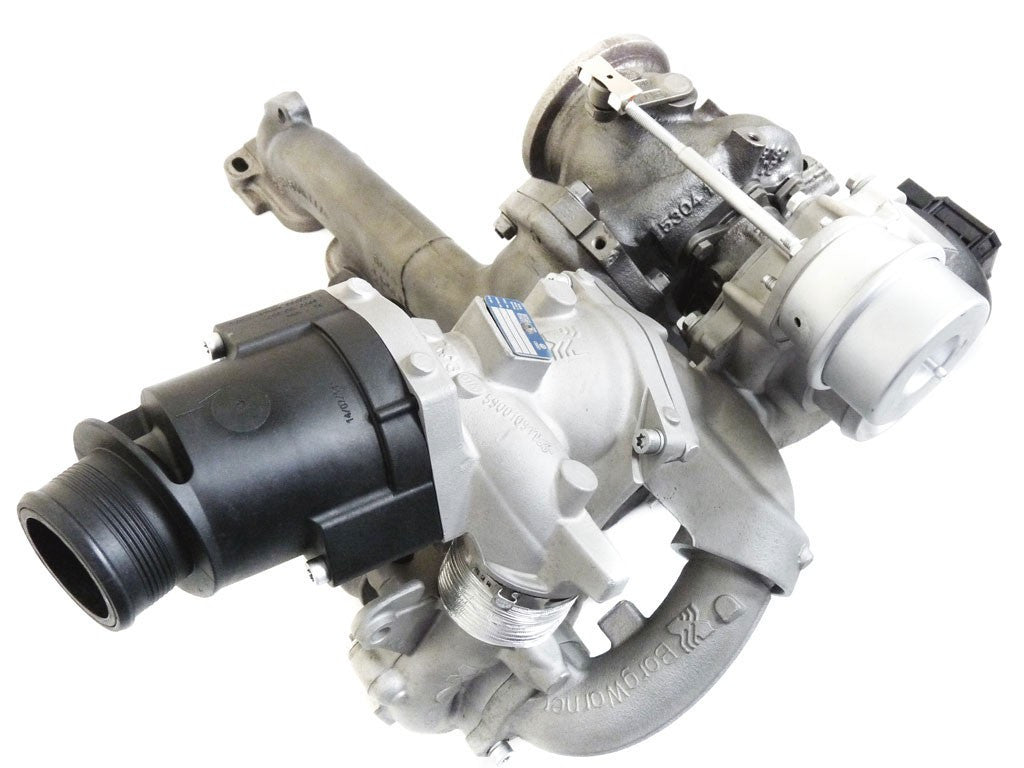

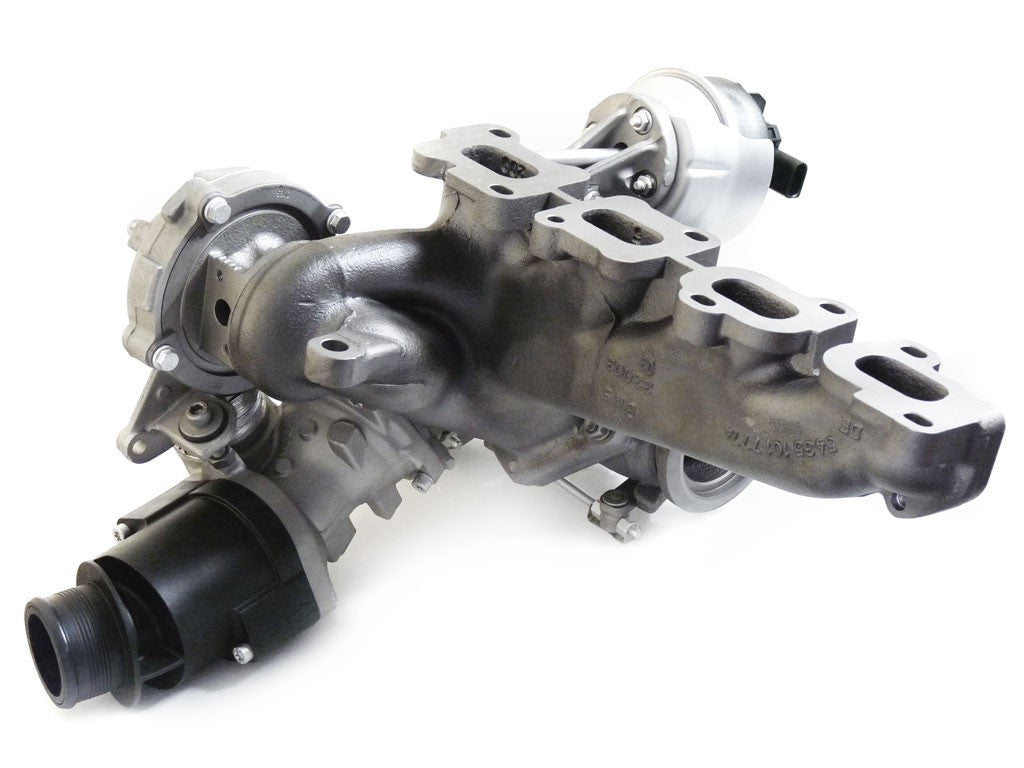

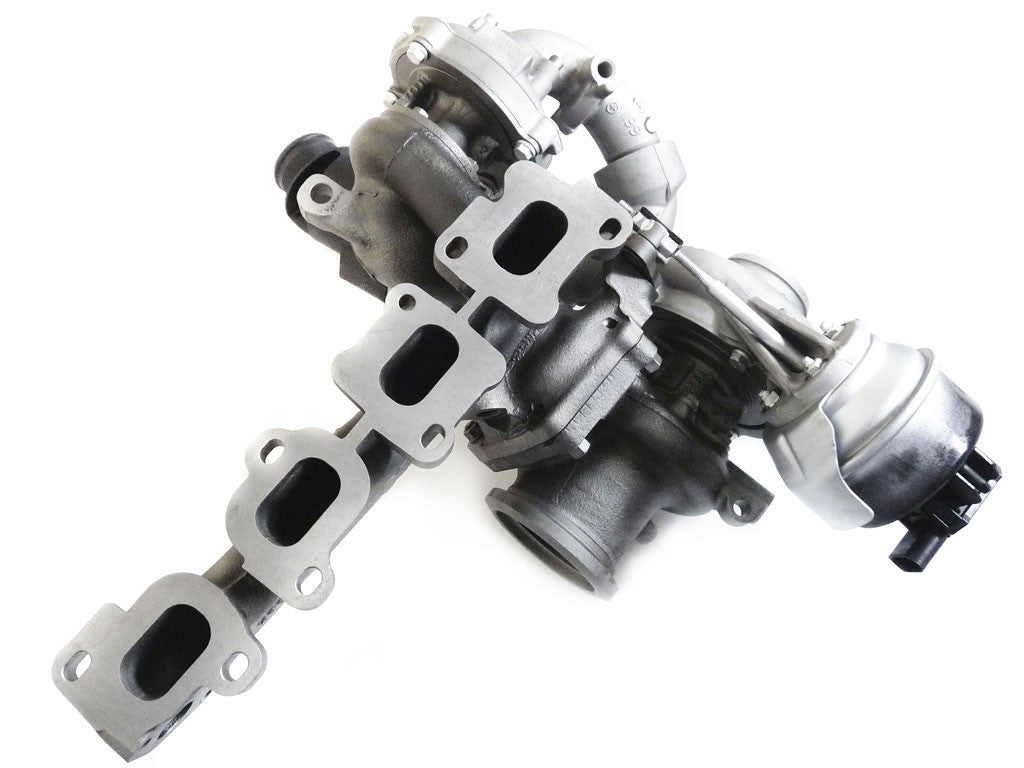

10009700113 (03L145715L) - Multiple turbocharger
Brand: BorgWarner
BorgWarner Reference: 10009700113

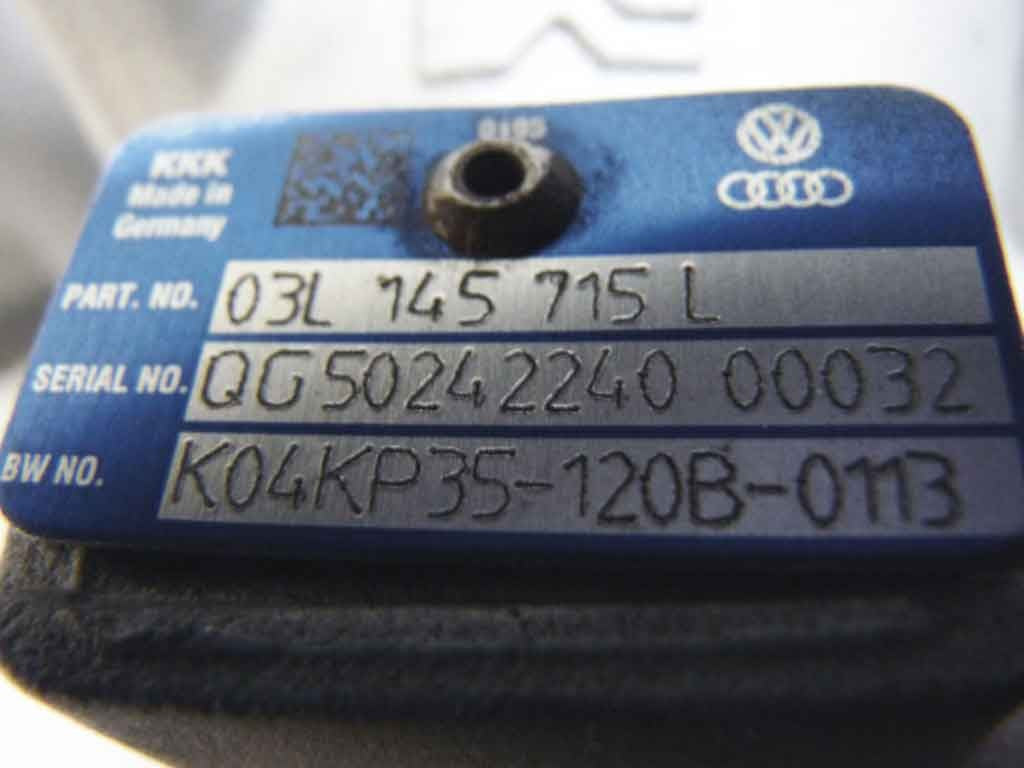

OEM Numbers: 03L145715L
10009700113 - Alternative numbers
BWT (BorgWarner original turbo number): 1000 970 0113
BWS (BorgWarner service turbo number): 1000 988 0113
BWS (BorgWarner service turbo number): 1000 993 0113
10009700113 - Technologies and actuation
Turbocharger technology: R2S (Regulated Two-Stage Turbocharging), HP (High pressure)
10009700113 - Turbo replacements
Replacement for: BorgWarner KP35-R2S + K04 10009700096
Replacement for: BorgWarner KP35-R2S + K04 10009700112
10009700113 - Turbo interchangeability
Interchangeable with: BorgWarner KP35-R2S + K04 10009700096
Interchangeable with: BorgWarner KP35-R2S + K04 10009700112
| Turbo 10009700113 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
| TurboCentras | Bolt | BO-98-0001 | 2 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0007 | 6 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0022 | 1 | -- | -- |
| TurboCentras | Back plate | BW-08-0012 | 1 | -- | -- |
| TurboCentras | Journal bearing | KP35-100 | 2 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-132 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-133 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-163 | 4 | -- | -- |
| TurboCentras | Shaft nut | KP35-180 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-200 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-201 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-202 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-203 | 1 | -- | -- |
| TurboCentras | Cartridge | KP35-219 | 1 | -- | 5435 710 0511 |
| TurboCentras | Bearing housing | KP35-308 | 1 | -- | -- |
| TurboCentras | Heat shield | KP35-322 | 1 | -- | -- |
| TurboCentras | Repair kit | KP35-51 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC-62-0004 | 1 | -- | -- |
10009930113, 10009880113, 10009700113, 03L145715L, 1000 970 0113, 1000 988 0113, 1000 993 0113
Data updated: 2023-07-04 09:03:34
