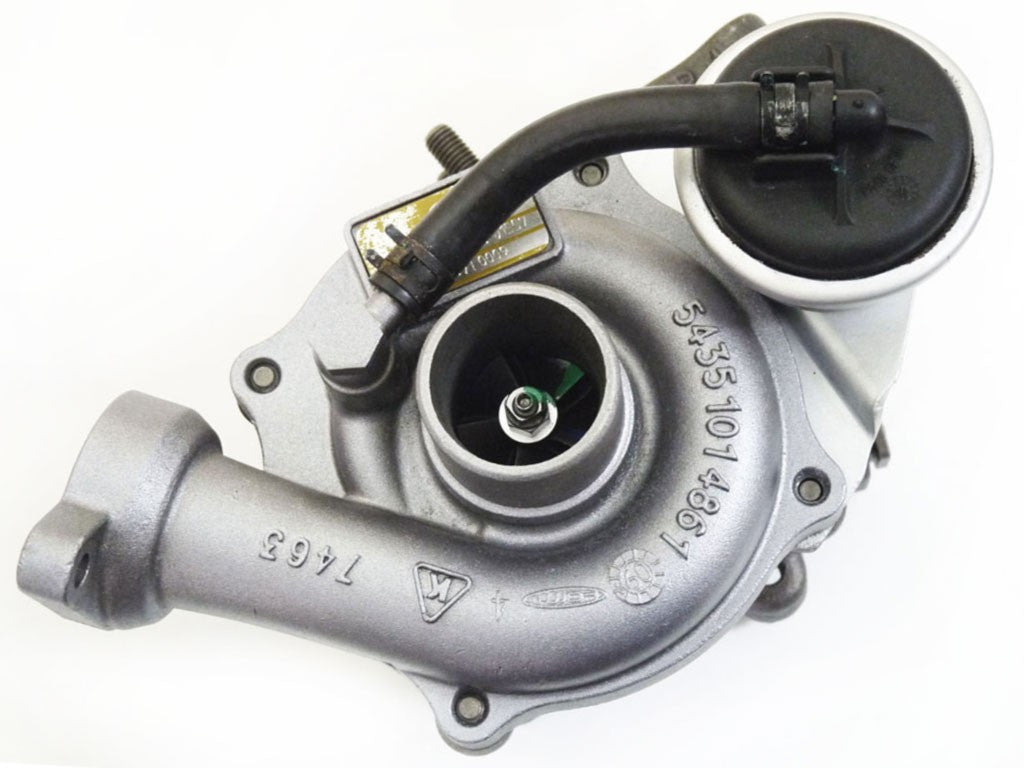

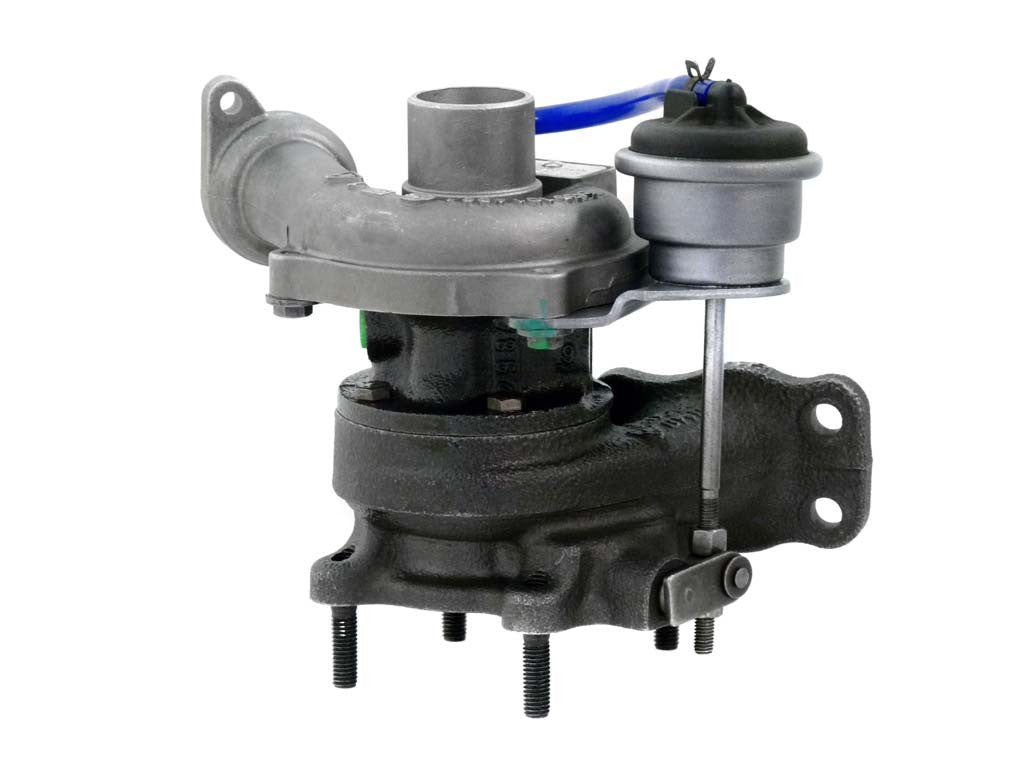

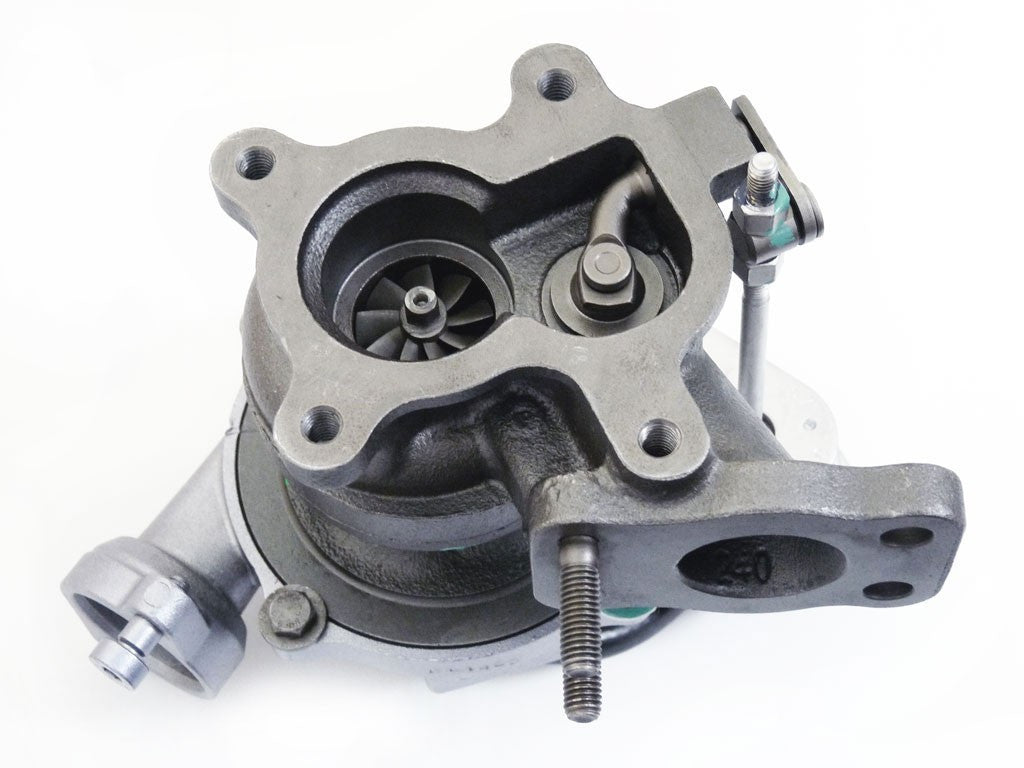

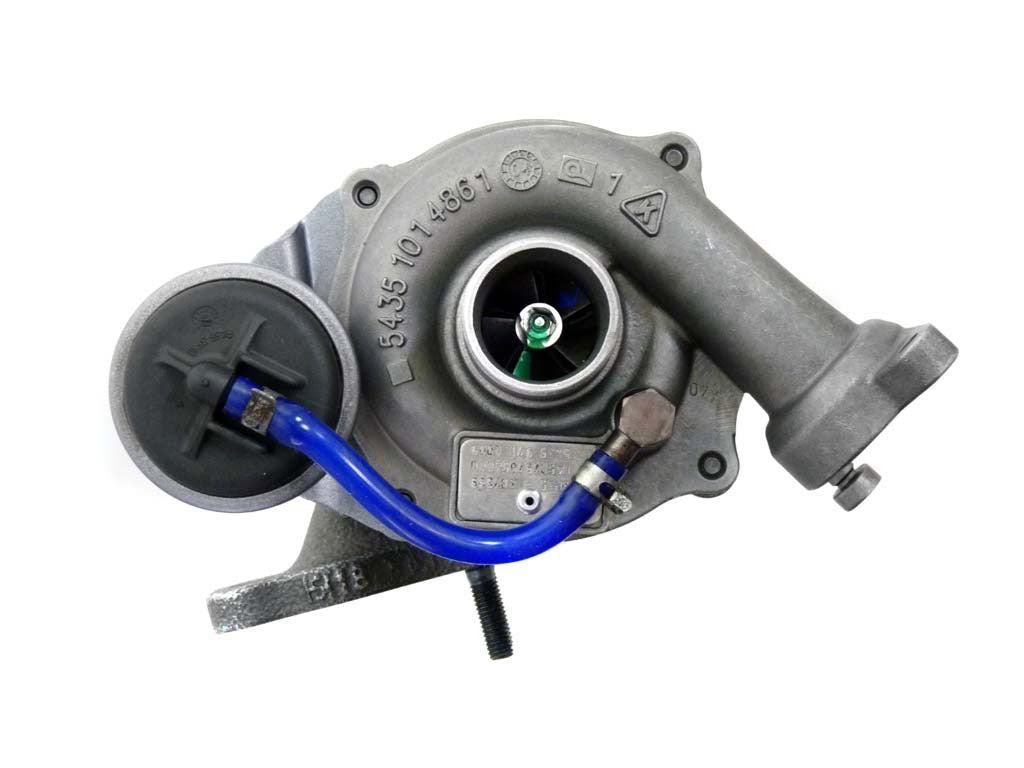

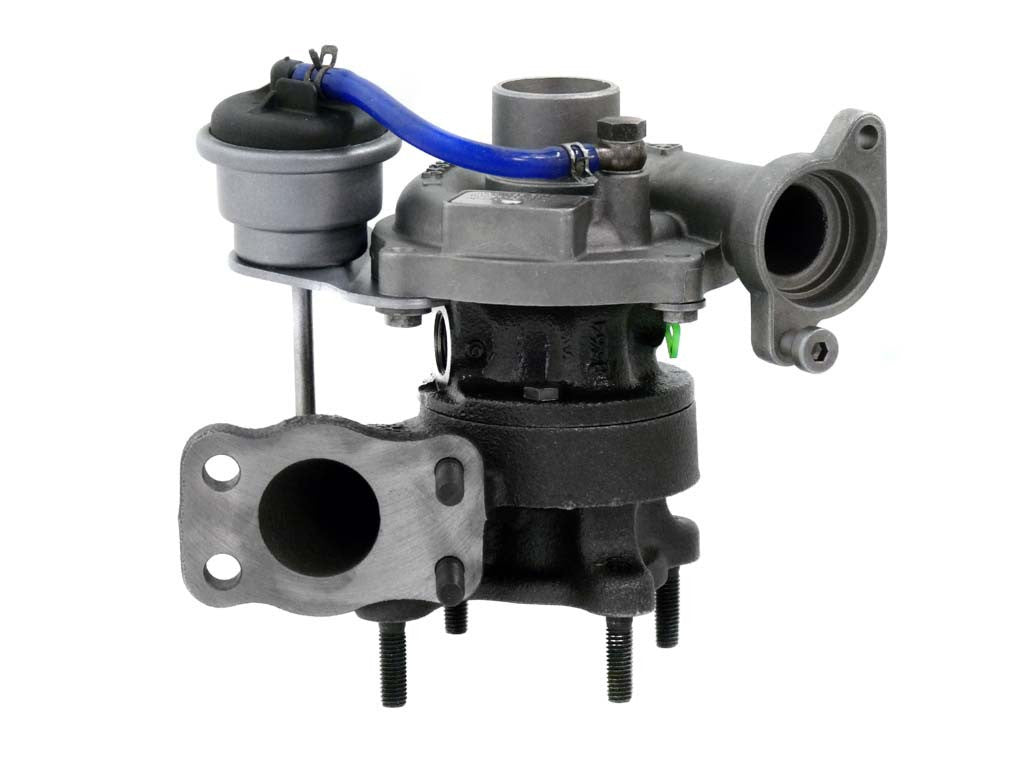

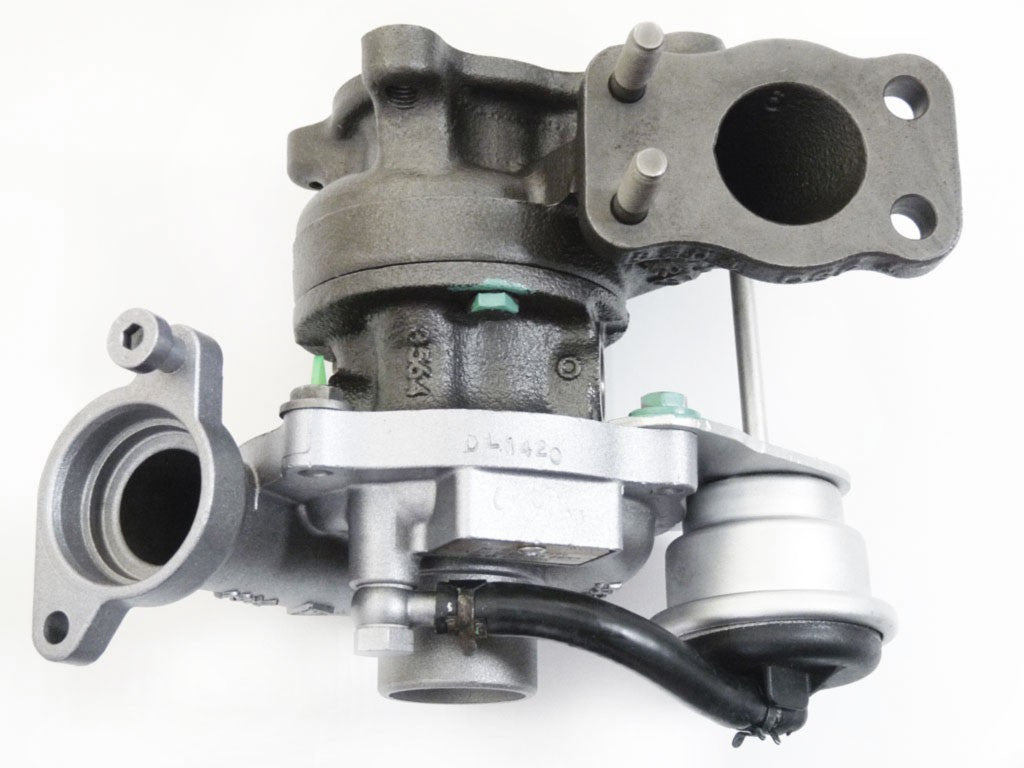

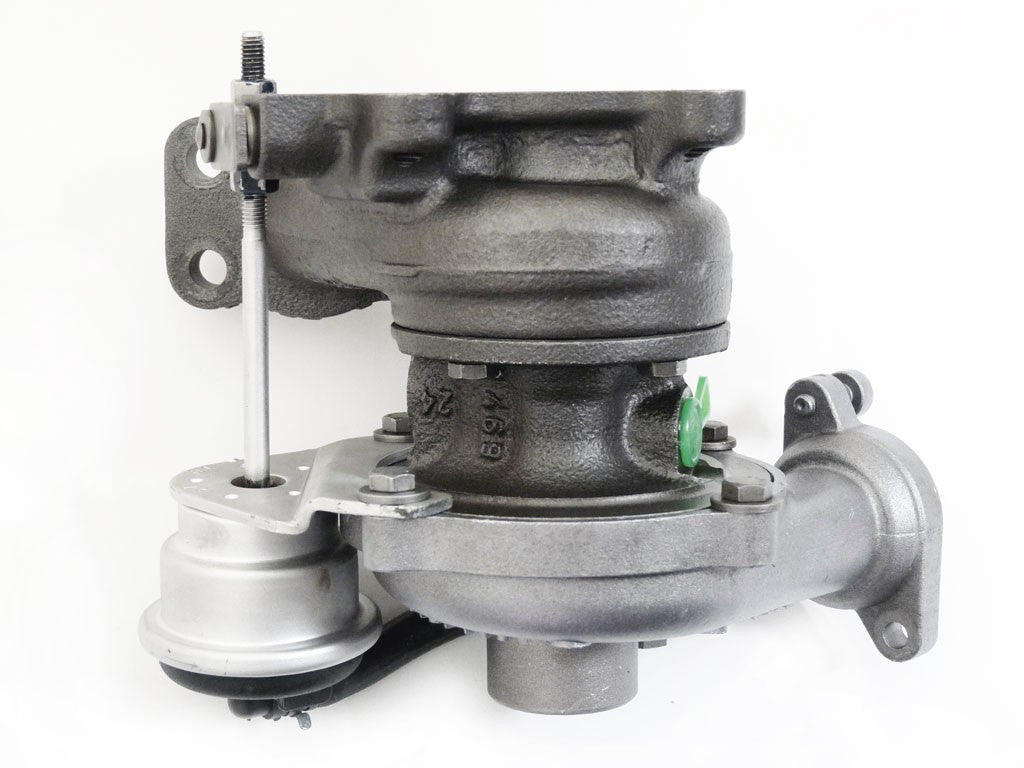

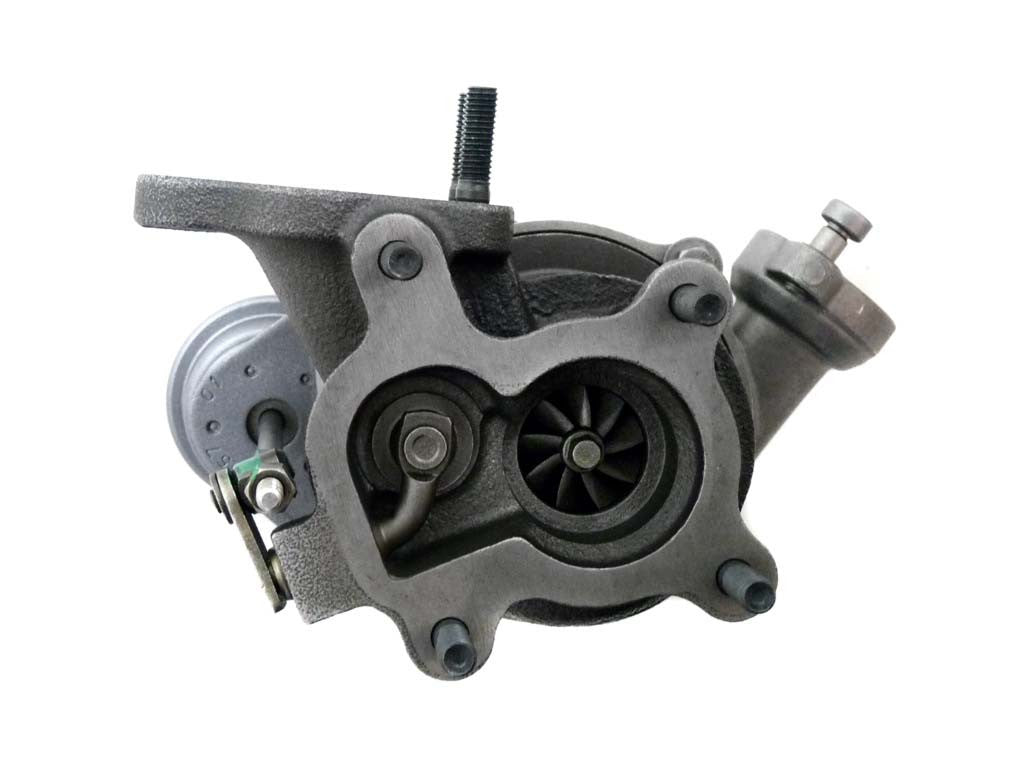

54359700009 (0375G9, 2S6Q6K682AB, 2S6Q6K682AC) - Turbocharger KP35-1574CBK240.82ACAXD
Brand: BorgWarner
Model: KP35 - KP35-1574CBK240.82ACAXD
BorgWarner Reference: 54359700009
OEM Numbers: 0375G9, 2S6Q6K682AB, 2S6Q6K682AC, 2S6Q6K682AD, 9648759980, SU00100559, Y40113700C
54359700009 - Alternative numbers

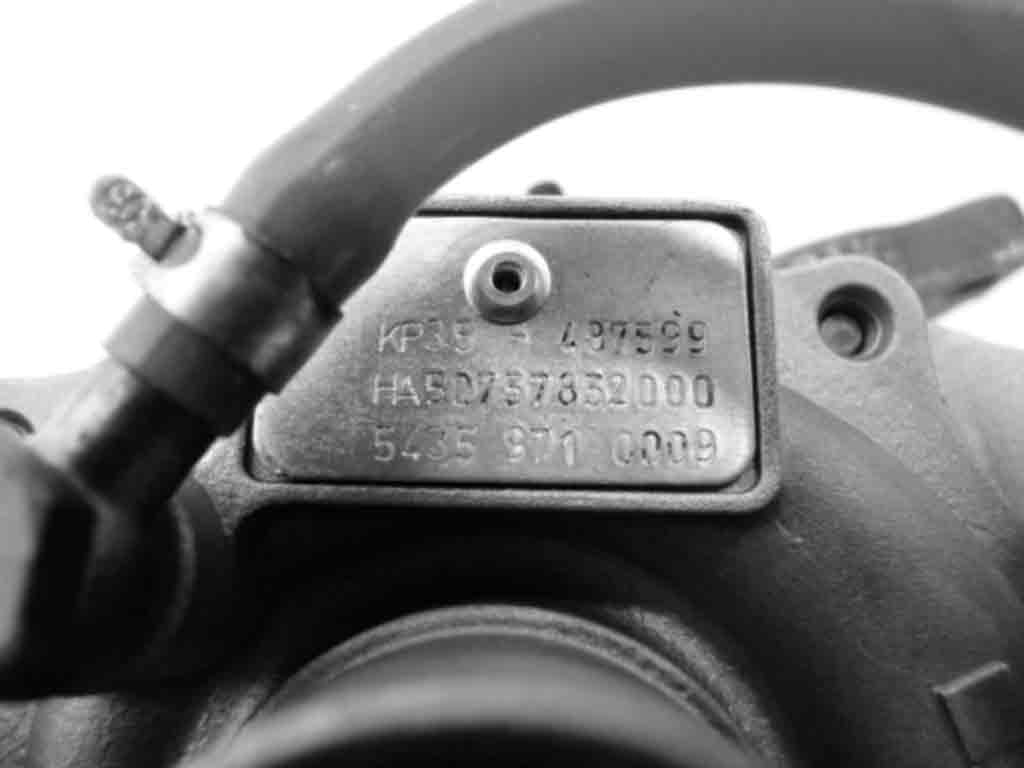

BWT (BorgWarner turbo number): 5435 970 0009
BWT (BorgWarner turbo number): 5435 971 0009
BWT (BorgWarner turbo number): 5435 972 0009
BWT (BorgWarner turbo number): 5435 988 0009
54359700009 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: WGT (Wastegate Turbocharger)
54359700009 - Turbo interchangeability
Interchangeable with: BMTS BM 40006264, 0375G9, 0375K0, 1148107, 1219456, 1348618, 1488986, 2S6Q6K682AA, 2S6Q6K682AB, 403TN100101, 9643574980, 9643675880, 9648759980
Interchangeable with: BorgWarner KP35-1574CBC240.82ACAXD 54359700001, 0375G9, 5435 970 0001, 9643675880
Interchangeable with: BorgWarner KP35-1574CBC240.82ACAXD 54359700007, 0375G9, 2S6Q6K682AA, 5435 970 0007, 9643574980
Turbo 54359700009 - Compatible parts
| PART BRAND |
PART NAME |
PART REFERENCE |
QTY |
PART OE NUMBER |
BORGWARNER PART NUMBER |
| TurboCentras |
Bolt |
BO-98-0001 |
2 |
-- |
-- |
| TurboCentras |
Bolt |
BO-98-0005 |
6 |
-- |
-- |
| TurboCentras |
Bolt |
BO-98-0007 |
6 |
-- |
-- |
| TurboCentras |
Cartridge |
BW-00-0026 |
1 |
-- |
5435 710 0502 |
| TurboCentras |
Bearing housing |
BW-01-0022 |
1 |
5435-151-0006 |
-- |
| TurboCentras |
Shaft and wheel |
BW-02-0019 |
1 |
-- |
-- |
| TurboCentras |
Compressor wheel |
BW-03-0038 |
1 |
5435-123-2001, 5435-123-2007 |
-- |
| TurboCentras |
Repair kit |
BW-04-0013 |
1 |
-- |
-- |
| TurboCentras |
Heat shield |
BW-05-0011 |
1 |
-- |
-- |
| TurboCentras |
Back plate |
BW-08-0007 |
1 |
-- |
-- |
| TurboCentras |
Actuator |
BW-10-0014 |
1 |
-- |
-- |
| TurboCentras |
Shaft nut |
BW-21-0001 |
1 |
-- |
-- |
| TurboCentras |
Piston ring |
GT15-170 |
2 |
-- |
-- |
| TurboCentras |
Piston ring |
K03/04-170 |
2 |
-- |
-- |
| TurboCentras |
Thrust bearing |
KP35-120 |
1 |
-- |
-- |
| TurboCentras |
Thrust flinger |
KP35-130 |
1 |
-- |
-- |
| TurboCentras |
Thrust flinger |
KP35-131 |
1 |
-- |
-- |
| TurboCentras |
Bearing spacer |
KP35-149 |
1 |
-- |
-- |
| TurboCentras |
Thrust washer |
KP35-155 |
1 |
-- |
-- |
| TurboCentras |
O-ring |
KP35-201 |
1 |
-- |
-- |
| TurboCentras |
Gasket oil outlet |
T-1 |
1 |
-- |
-- |
54359880009, 54359720009, 54359710009, 54359700009, 0375G9, 2S6Q6K682AB, 2S6Q6K682AC, 2S6Q6K682AD, 5435 970 0009, 5435 971 0009, 5435 972 0009, 5435 988 0009, 9648759980, SU00100559, Y40113700C
Data updated: 2024-12-16 17:05:22
