BorgWarner
Turbo 54399880048-R
Turbo 54399880048-R
Regular price
€231,40 EUR
Regular price
Sale price
€231,40 EUR
Unit price
/
per
Couldn't load pickup availability

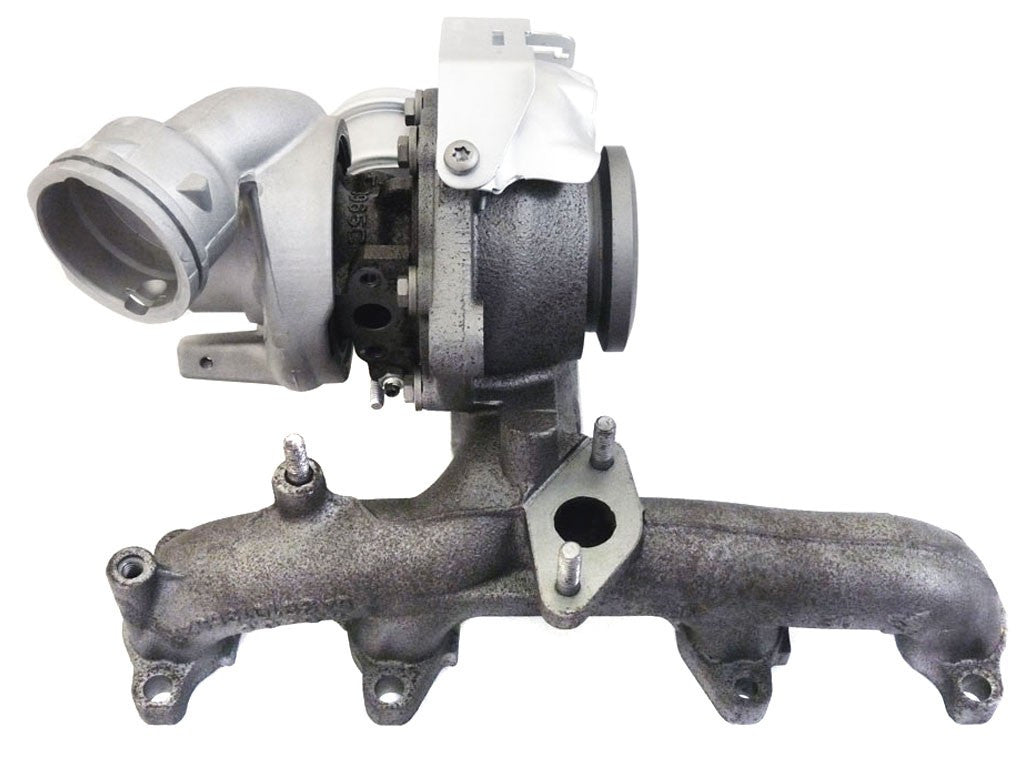

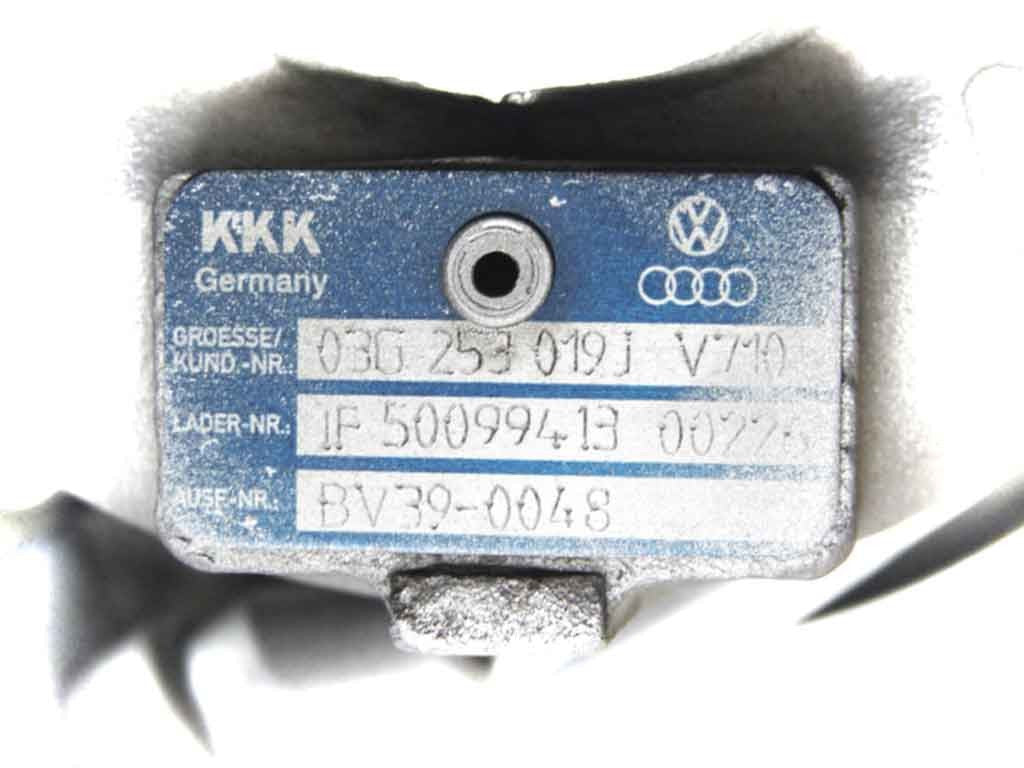

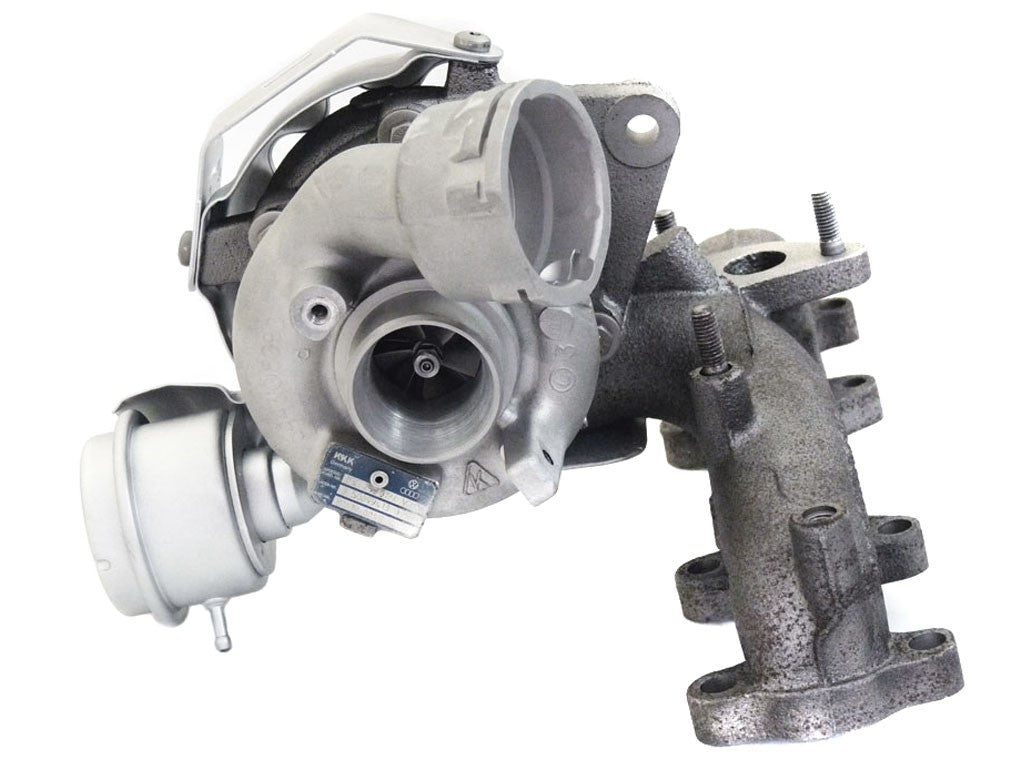

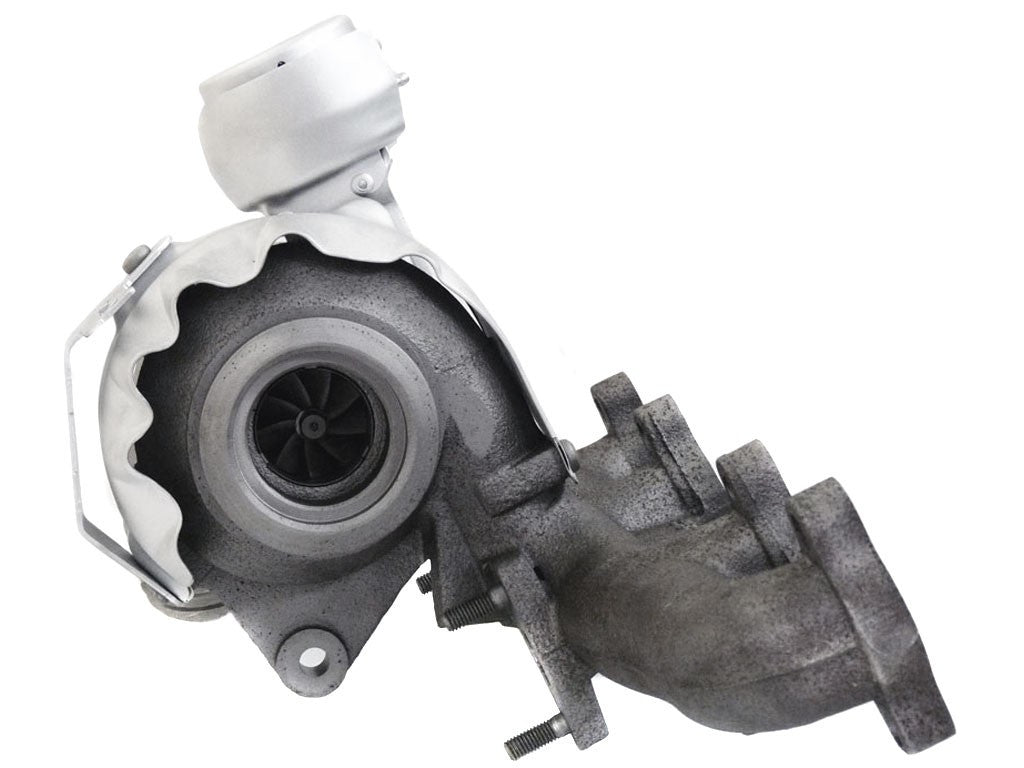

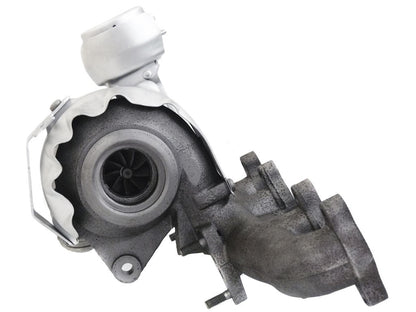

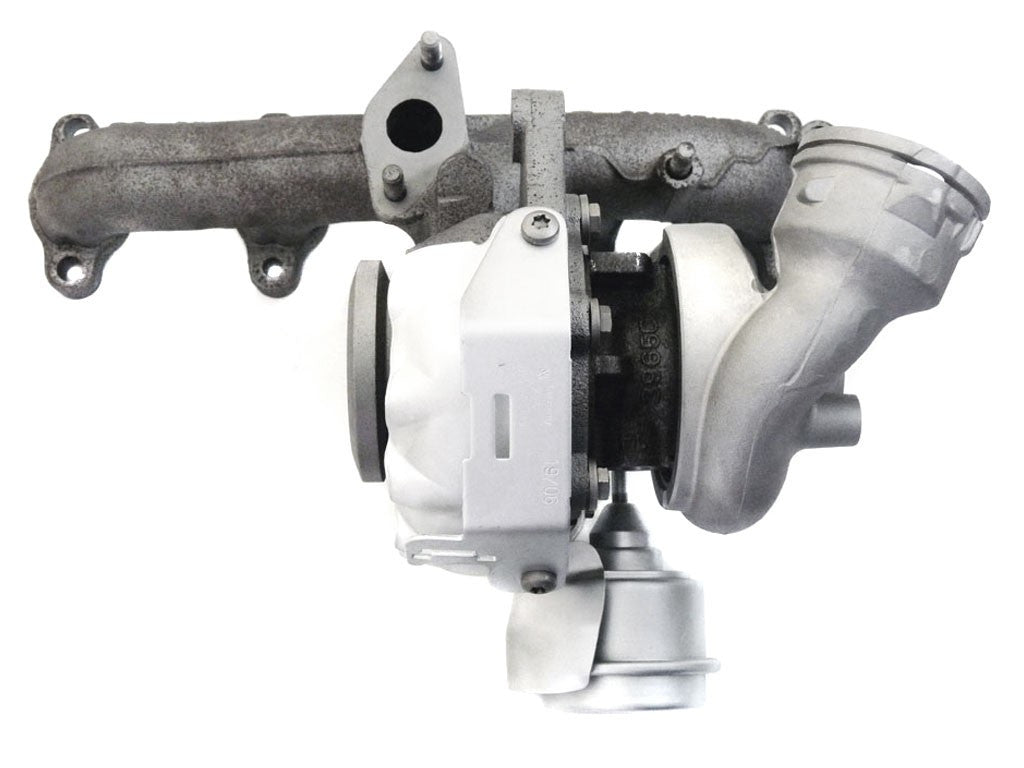

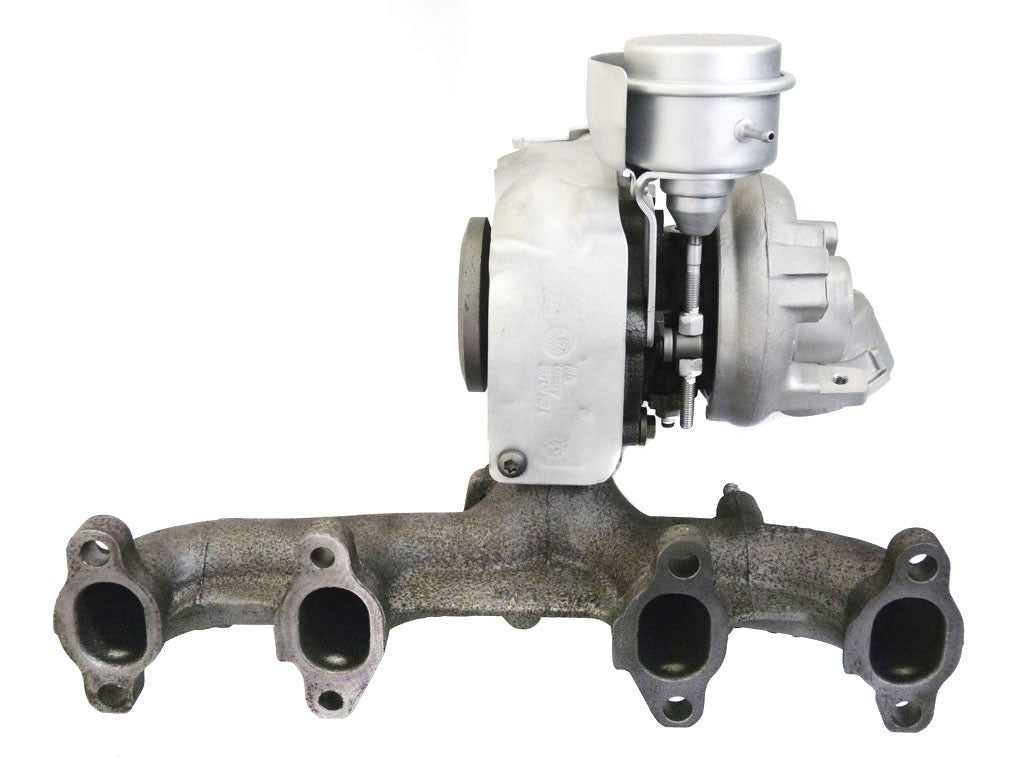

54399880048 (03G253019J) - Turbocharger BV39-1870DCK426.10AVAXC
Brand: BorgWarner
Model: BV39 - BV39-1870DCK426.10AVAXC
BorgWarner Reference: 54399880048
OEM Numbers: 03G253019J
54399880048 - Alternative numbers
BWT (BorgWarner turbo number): 5439 970 0048
BWT (BorgWarner turbo number): 5439 971 0048
BWT (BorgWarner turbo number): 5439 988 0048
BWT (BorgWarner turbo number): 5439 990 0048
54399880048 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0001 | 2 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0007 | 6 | -- | -- |
| TurboCentras | Cartridge | BW-00-0041 | 1 | -- | -- |
| TurboCentras | Bearing housing | BW-01-0034 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | BW-02-0029 | 1 | 5439-120-5010, 5439-970-5011 | -- |
| TurboCentras | Compressor wheel | BW-03-0053 | 1 | 5443-123-2019 | -- |
| TurboCentras | Repair kit | BW-04-0013 | 1 | -- | -- |
| TurboCentras | Heat shield | BW-05-0010 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0018 | 1 | 5439-160-5016 | -- |
| TurboCentras | Nozzle ring assy. | BW-06-0020 | 1 | 5439-160-5010 | -- |
| TurboCentras | Back plate | BW-08-0010 | 1 | -- | -- |
| TurboCentras | Actuator | BW-10-0005 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | BW-50-0003 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 2 | -- | -- |
| TurboCentras | Piston ring | K03/04-170 | 2 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-130 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-131 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | O-ring | KP35-201 | 1 | -- | -- |
| EE Turbo | Cartridge | KP39-007 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1023 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1023F | 1 | -- | -- |
54399900048, 54399880048, 54399710048, 54399700048, 03G253019J, 5439 970 0048, 5439 971 0048, 5439 988 0048, 5439 990 0048
Data updated: 2025-06-06 09:43:26
