Garrett
Turbo 454064-0001-R
Turbo 454064-0001-R
Regular price
€231,40 EUR
Regular price
Sale price
€231,40 EUR
Unit price
/
per
Couldn't load pickup availability

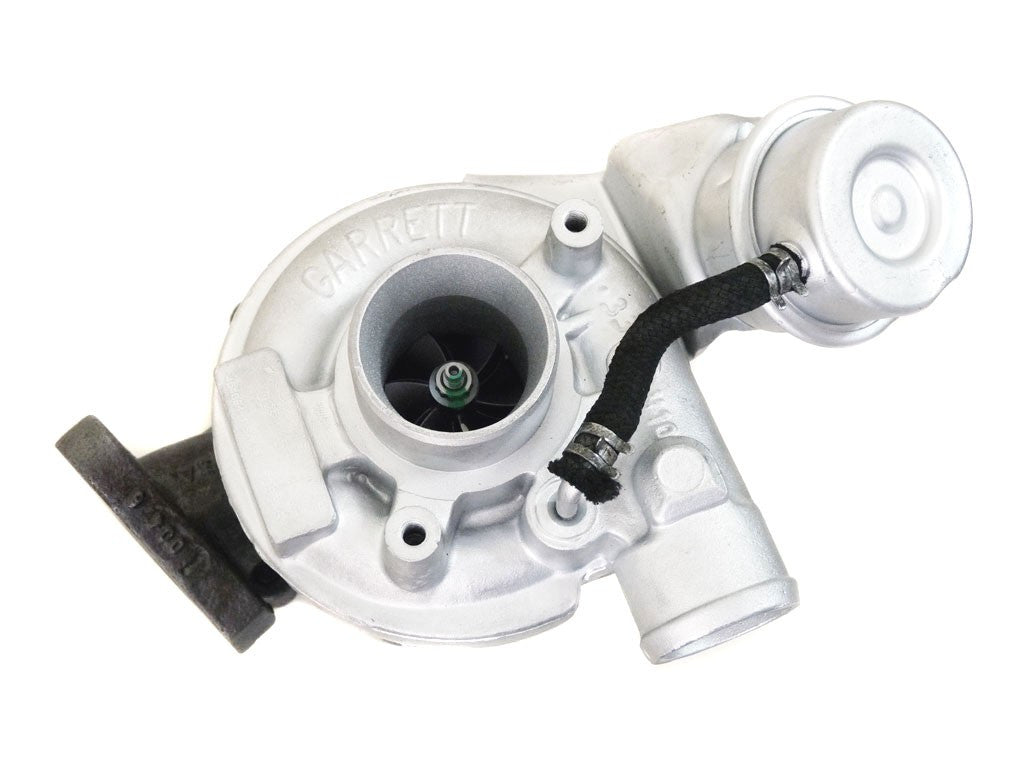

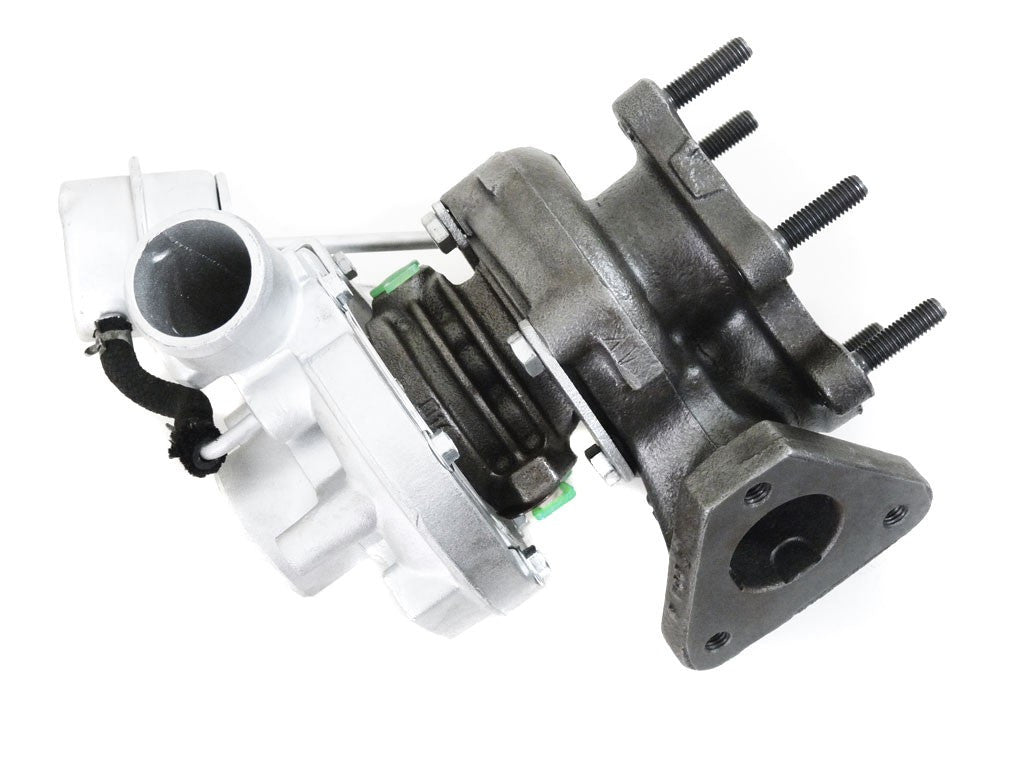

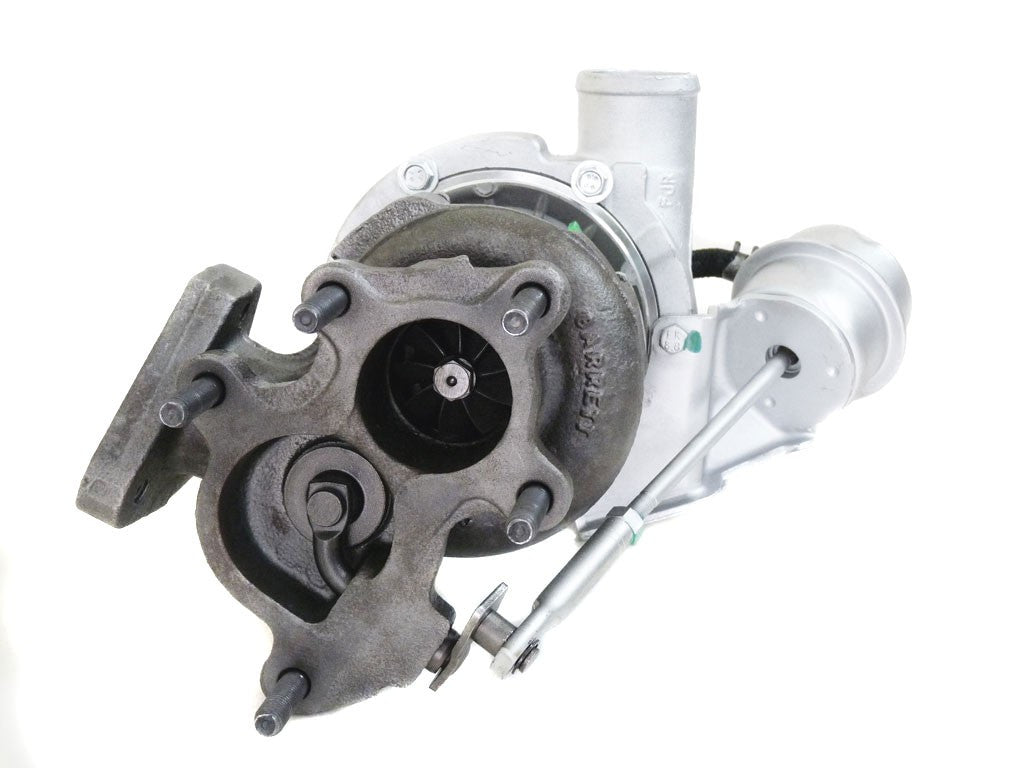

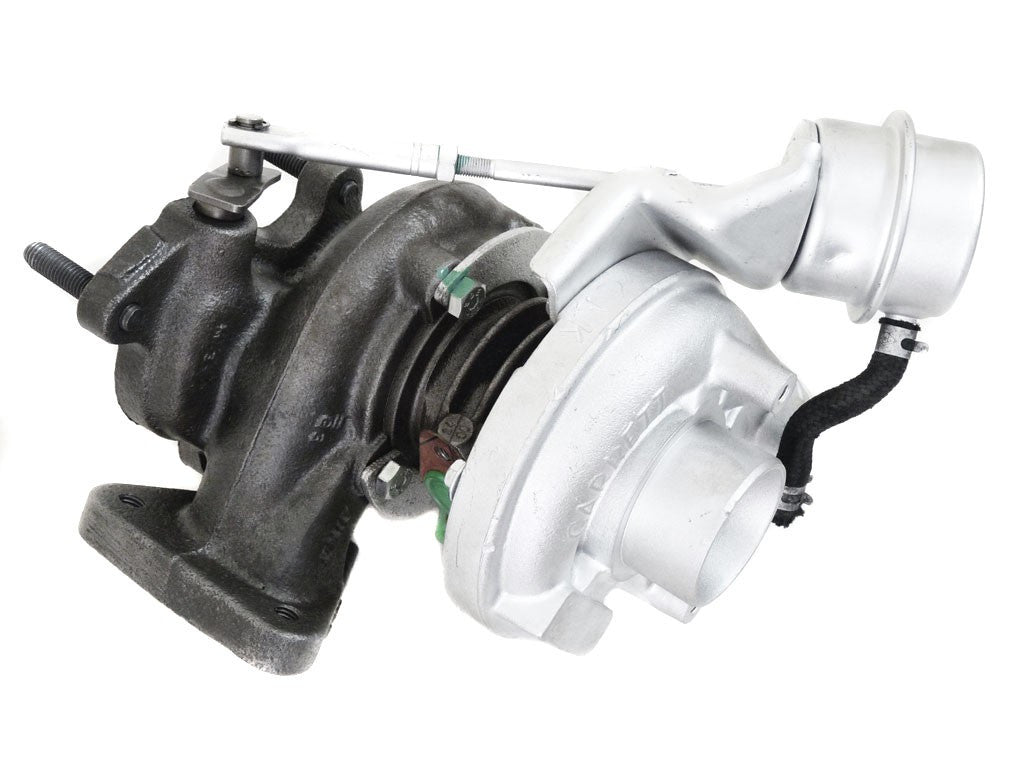

454064-0001-R (028145701L) - Turbocharger GT1544S
Brand: Garrett
Model: GT15 - GT1544S
Garrett Reference: 454064-0001-R

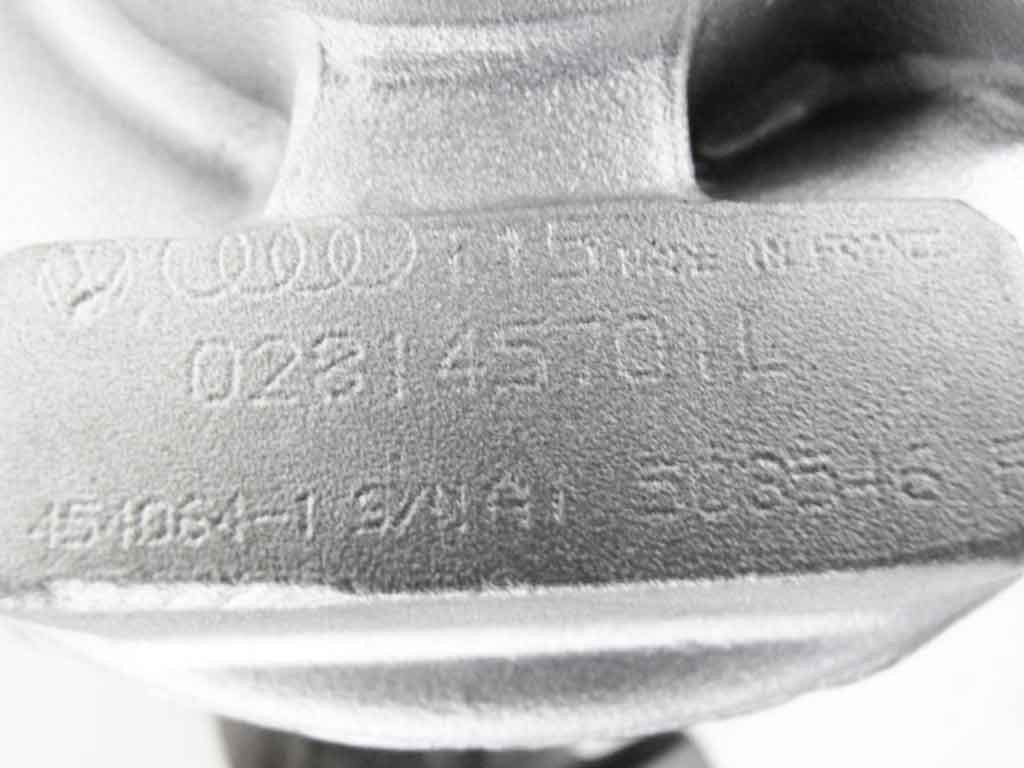

OEM Numbers: 028145701L
454064-0001-R - Alternative numbers
GHT (Garrett turbo number): 454064-0001
GHT (Garrett turbo number): 454064-0001-R
GHT (Garrett turbo number): 454064-5001S
454064-0001-R - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: WGT (Wastegate Turbocharger)
454064-0001-R - Turbo interchangeability
Interchangeable with: Garrett GT1544S 454064-0001, 028145701L
Interchangeable with: Garrett GT1544S 454064-5001S, 028145701L, 454064-0001
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Cartridge | GA-00-0031 | 1 | -- | 435796-0020, 435796-5020 |
| TurboCentras | Bearing housing | GA-01-0183 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0043 | 1 | 433165-0001, 433165-0007, 433298-0001, 433298-0030, 434713-0001, 434713-0005, 434713-0020 | -- |
| TurboCentras | Compressor wheel | GA-03-0038 | 1 | 433246-0003 | -- |
| TurboCentras | Repair kit | GA-04-0017 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0014 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0009 | 1 | 433249-0001 | -- |
| TurboCentras | Actuator | GA-10-0021 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-132 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-173 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1055 | 1 | -- | -- |
028145701L, 454064-0001, 454064-0001-R, 454064-5001S
Data updated: 2025-04-03 14:09:33
