Garrett
Turbo 751418-0002 (R)
Turbo 751418-0002 (R)
Regular price
€231,40 EUR
Regular price
Sale price
€231,40 EUR
Unit price
/
per
Couldn't load pickup availability

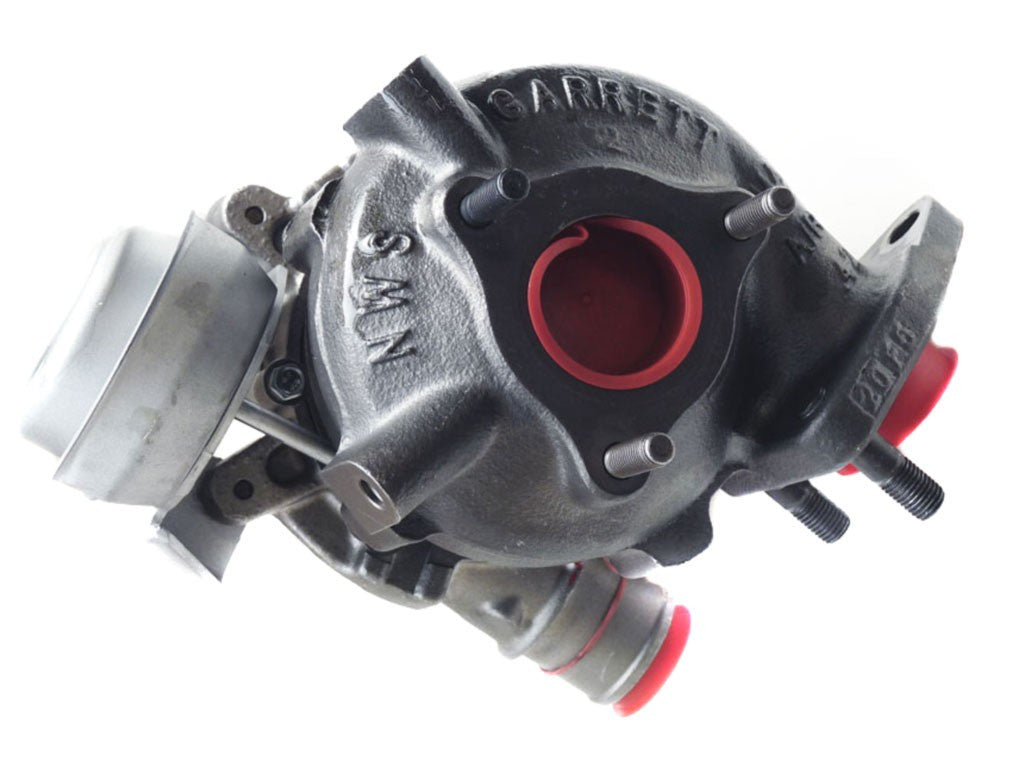

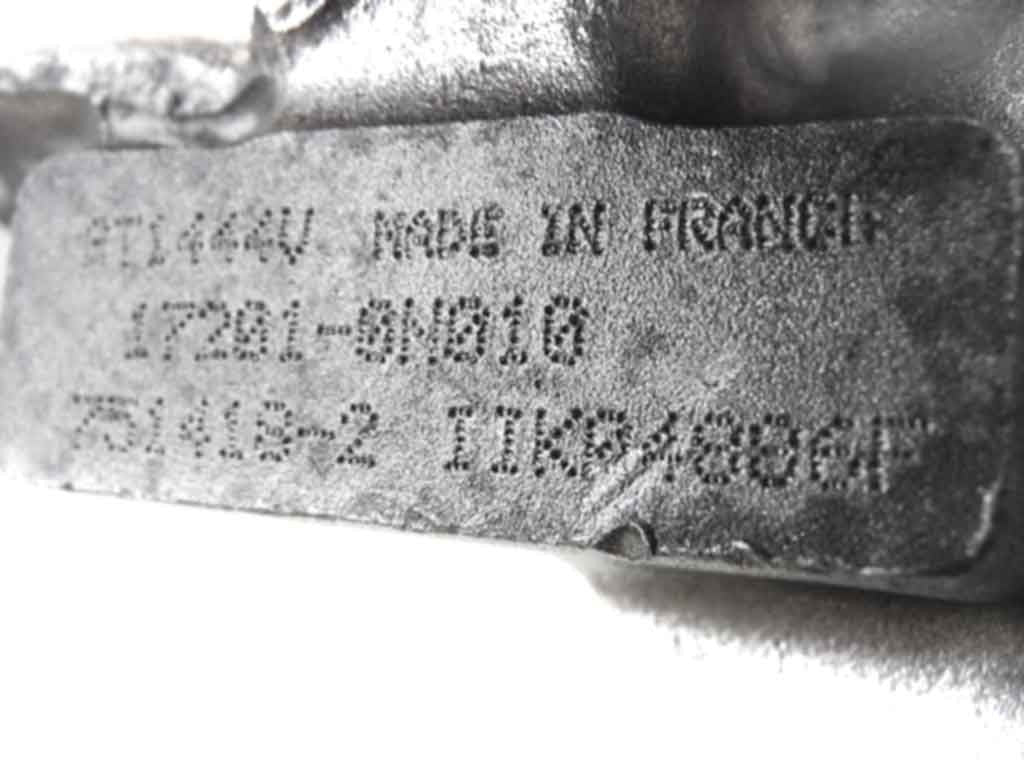

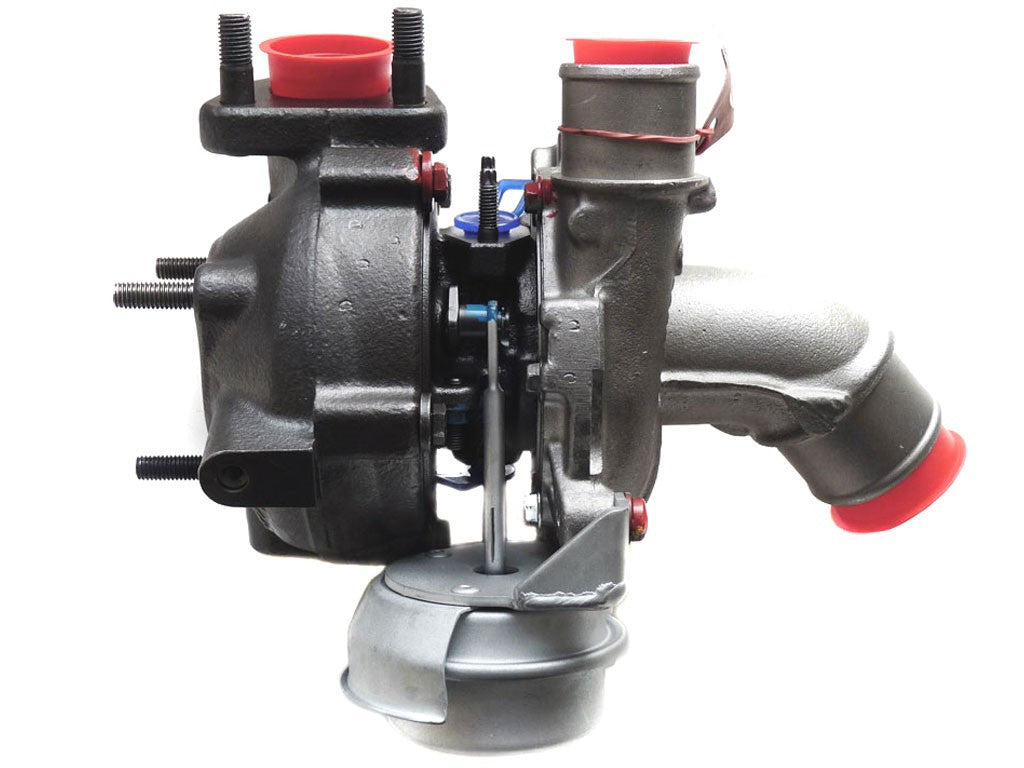

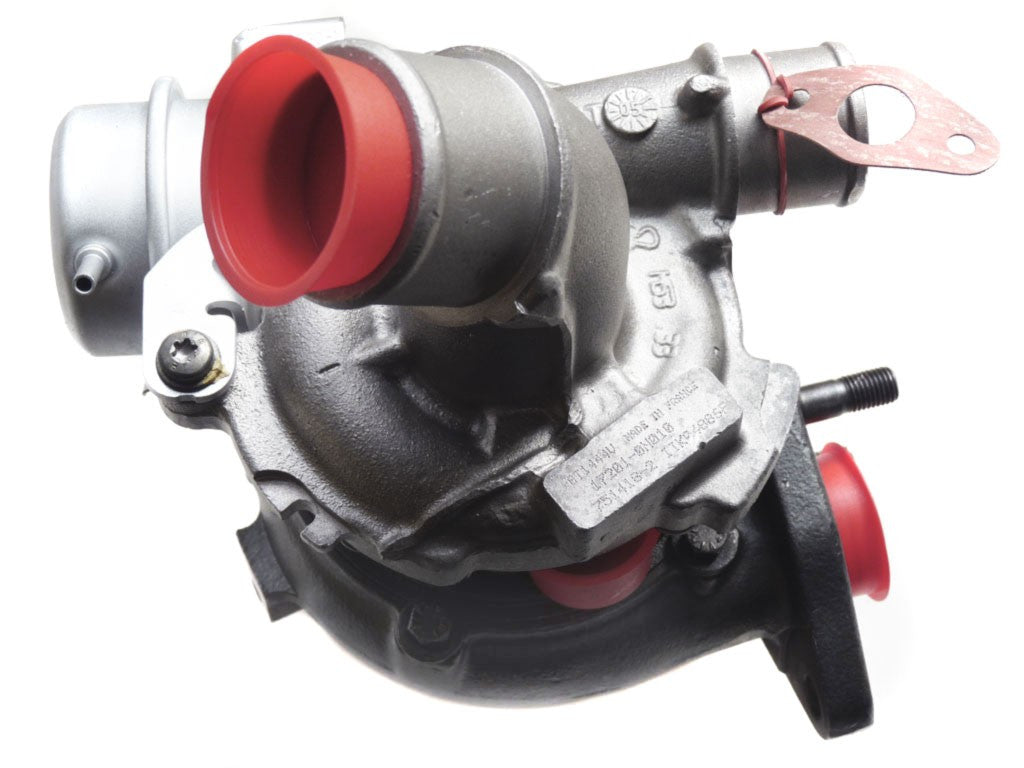

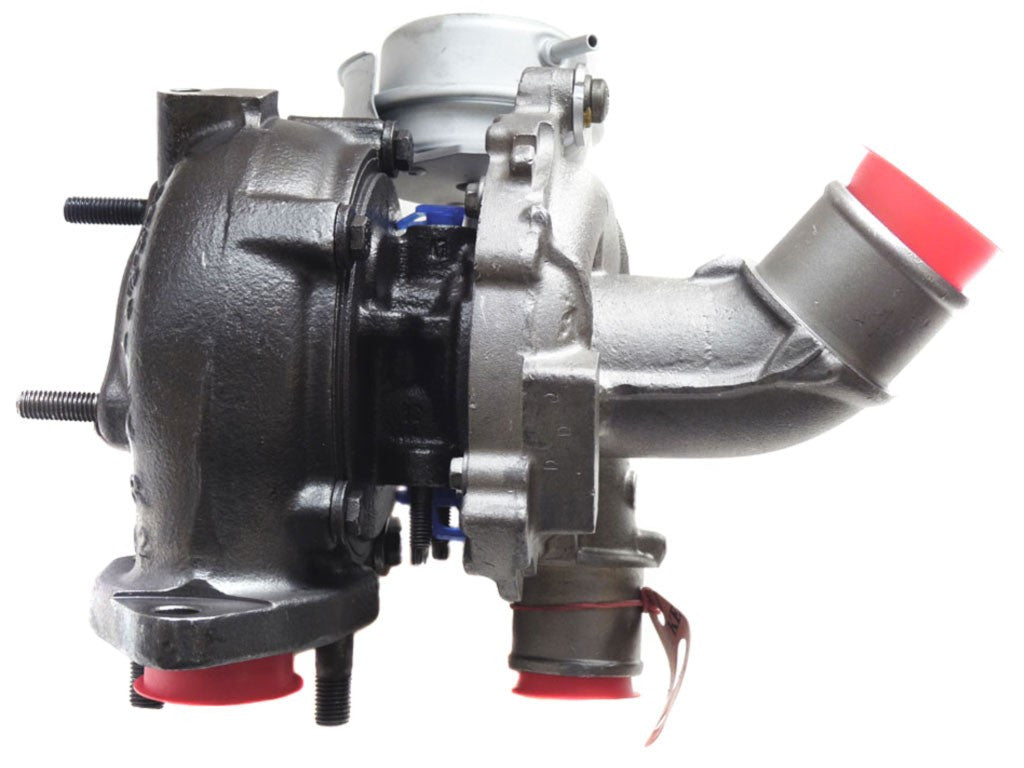

751418-0002 (172010N010) - Turbocharger
Brand: Garrett
Garrett Reference: 751418-0002
OEM Numbers: 172010N010
751418-0002 - Alternative numbers
GHO (Garrett original part number): 751418-0002
GHA (Garrett aftermarket part number): 751418-5002S
751418-0002 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
751418-0002 - Turbo replacements
Replaced by: Garrett GT14 758870-0001
751418-0002 - Turbo interchangeability
Interchangeable with: Garrett GT14 758870-0001
| Turbo 751418-0002 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-100 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-121 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-131 | 1 | -- | -- |
| TurboCentras | Thrust spacer | GT15-136 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GT15-24 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GT15-39 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-51 | 1 | -- | -- |
| TurboCentras | Back plate | GT15-68 | 1 | -- | 700593-0001 |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
172010N010, 751418-0002, 751418-5002S
Data updated: 2022-11-04 14:48:42
