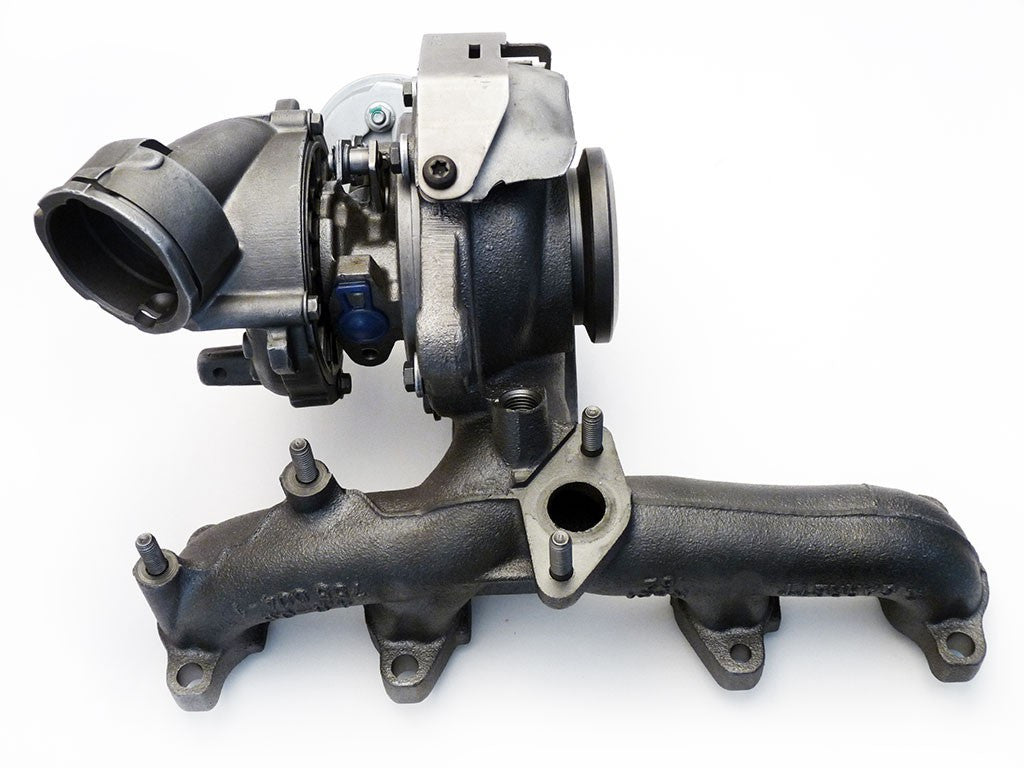

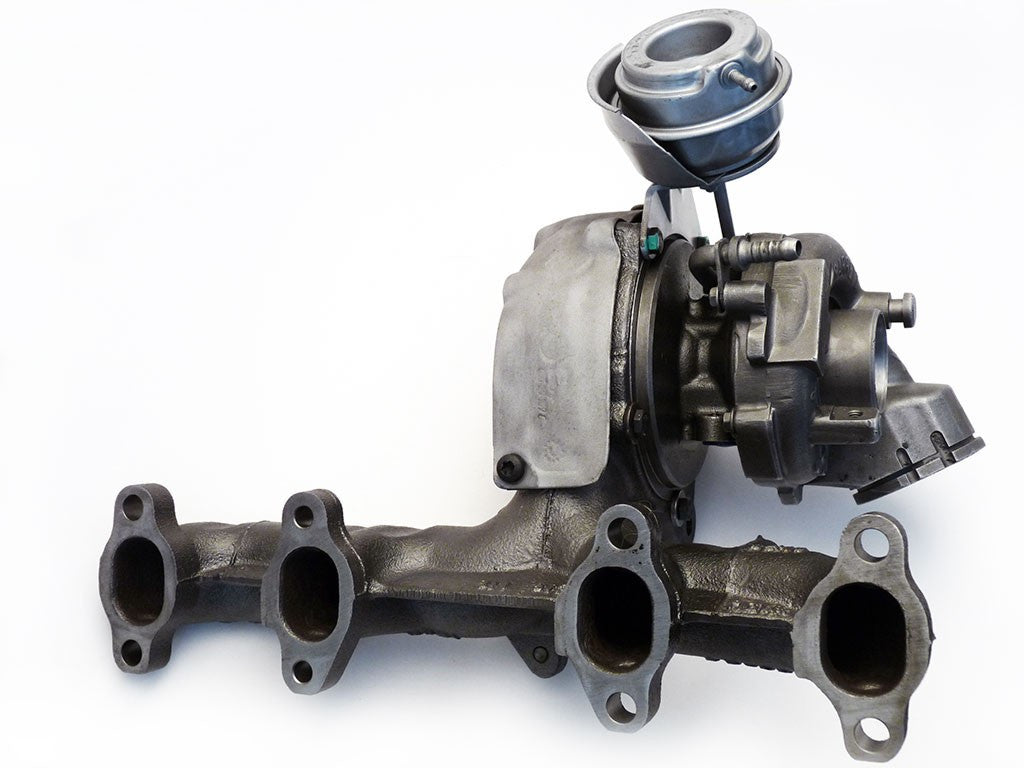

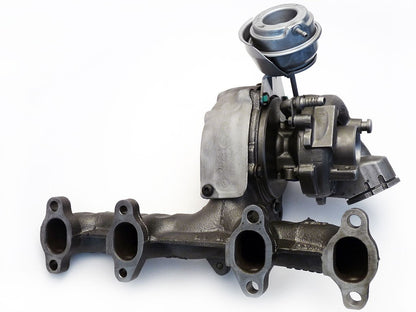

Turbo 765261-0005-R
Turbo 765261-0005-R
Couldn't load pickup availability
765261-0005 (03G253014NV100) - Turbocharger GTB1646MV
Brand: Garrett
Model: GT16 - GTB1646MV
Garrett Reference: 765261-0005
OEM Numbers: 03G253014NV100
765261-0005 - Alternative numbers
GHT (Garrett turbo number): 765261-0005
GHT (Garrett turbo number): 765261-5005S
GHT (Garrett turbo number): 765261-9008S
765261-0005 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
765261-0005 - Turbo replacements
Replaced by: Garrett GTB1646MV 765261-0006, 03G253010, 765261-5006S
Replaced by: Garrett GTB1646MV 765261-0007, 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104, 765261-5007S
Replaced by: Garrett GTB1646MV 765261-0008, 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104, 765261-5008S, 765261-9008S
Replacement for: Garrett GT1646V 765261-0001, 03G253010, 03G253014N, 03G253016H, 03G253019L
Replacement for: Garrett GTB1646MV 765261-0002, 03G253016HV100, 765261-5002S
Replacement for: Garrett GTB1646MV 765261-0003, 03G257016HV110, 765261-5003S
Replacement for: Garrett GTB1646MV 765261-0004, 03G253014N, 765261-5004S
765261-0005 - Turbo interchangeability
Interchangeable with: Garrett GT1646V 756867-0001, 03G253010, 03G253014N, 03G253019L, 756867-5001S
Interchangeable with: Garrett GT1646V 756867-0002, 03G253010, 03G253014N, 03G253016H, 03G253019L
Interchangeable with: Garrett GT1646V 756867-0003, 03G253010, 03G253014N, 03G253016H, 756867-5003S
Interchangeable with: Garrett GT1646V 765261-0001, 03G253010, 03G253014N, 03G253016H, 03G253019L
Interchangeable with: Garrett GTB1646MV 765261-0002, 03G253016HV100, 765261-5002S
Interchangeable with: Garrett GTB1646MV 765261-0003, 03G257016HV110, 765261-5003S
Interchangeable with: Garrett GTB1646MV 765261-0004, 03G253014N, 765261-5004S
Interchangeable with: Garrett GTB1646MV 765261-0006, 03G253010, 765261-5006S
Interchangeable with: Garrett GTB1646MV 765261-0007, 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104, 765261-5007S
Interchangeable with: Garrett GTB1646MV 765261-0008, 03G253010V100, 03G253010V101, 03G253010V102, 03G253010V103, 03G253010V104, 765261-5008S, 765261-9008S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0090 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0068 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0059 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0054 | 1 | 737686-0002, 784959-0002 | -- |
| TurboCentras | Repair kit | GA-04-0016 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0015 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0016 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0036 | 1 | -- | -- |
| TurboCentras | Turbine housing | GA-09-0008 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0024 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT16-002 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | GT16-149-1 | 1 | -- | -- |
| TurboCentras | VNT nozzle cage | GT16-700 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1023 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1023F | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
03G253014NV100, 765261-0005, 765261-5005S, 765261-9008S
Data updated: 2024-10-22 10:20:18
