Garrett

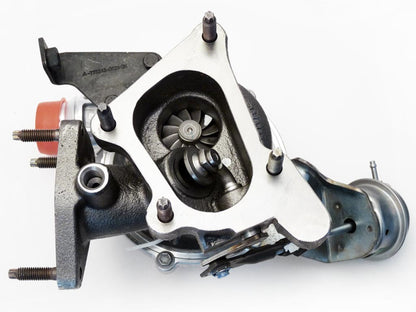

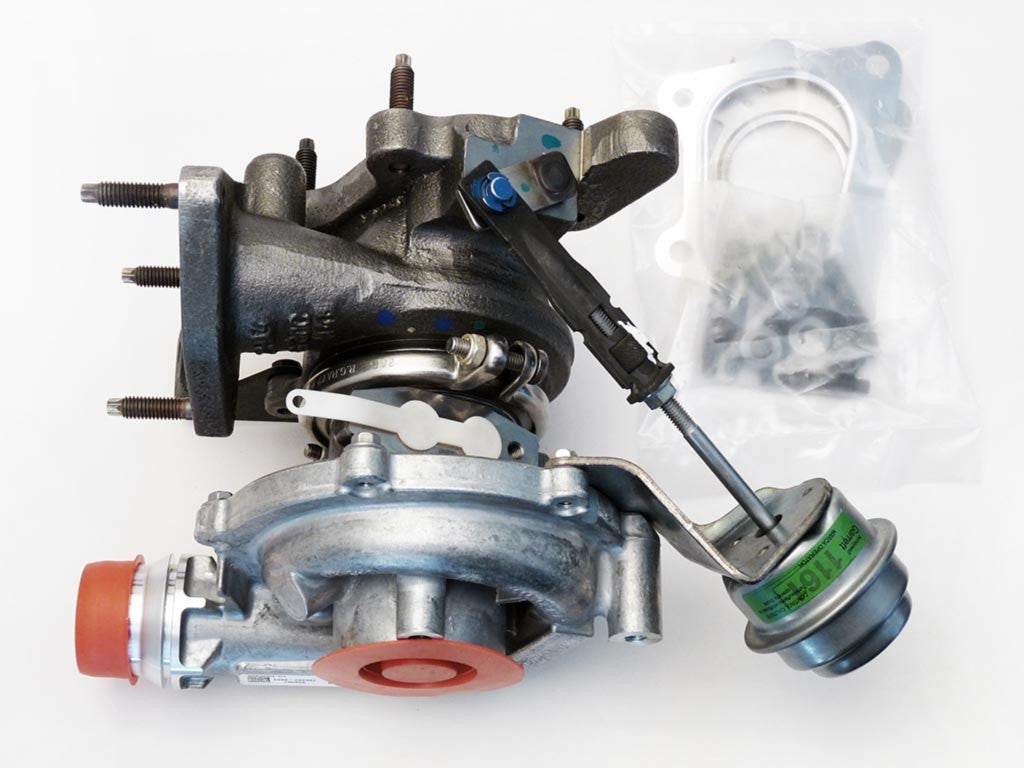

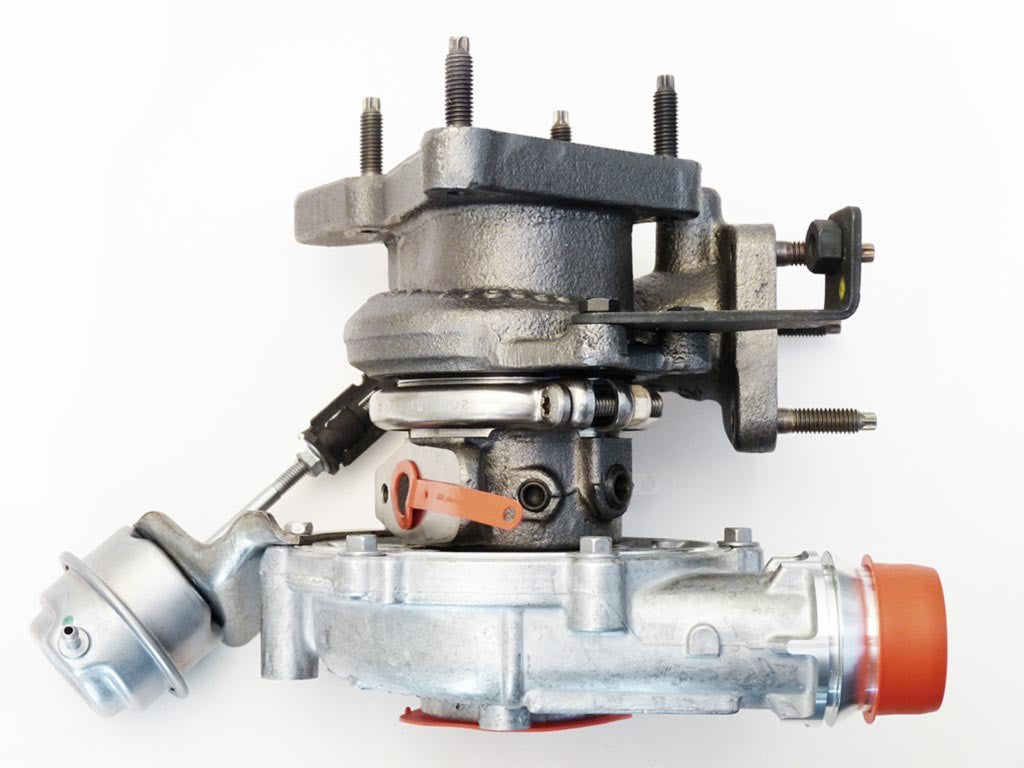

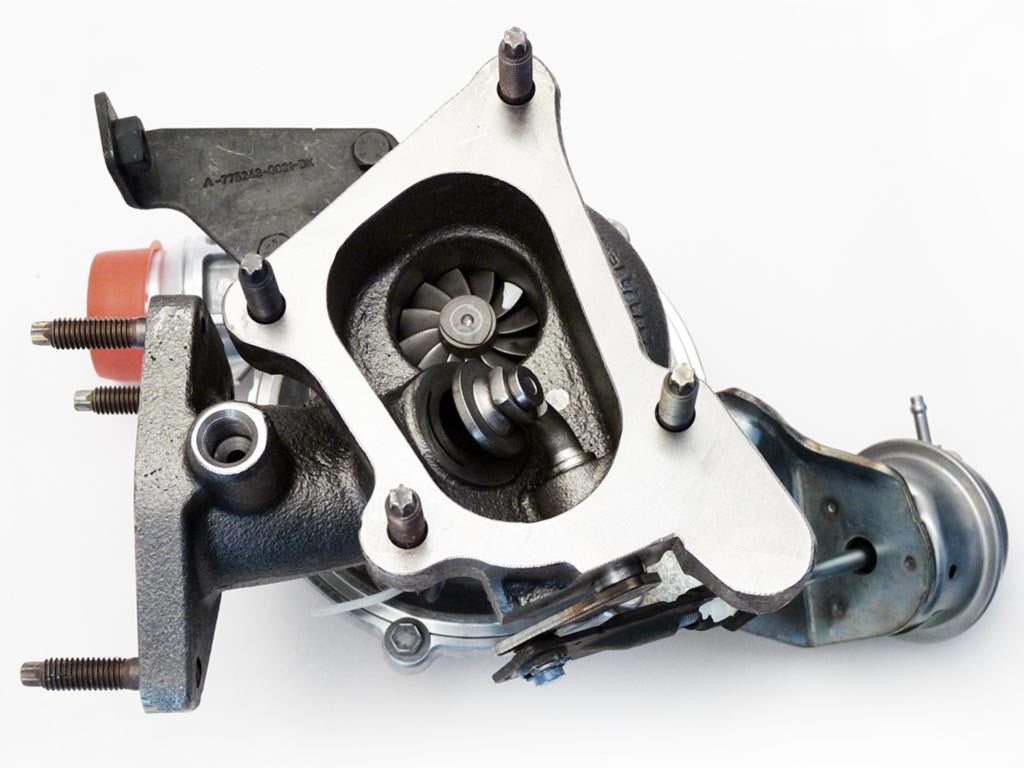

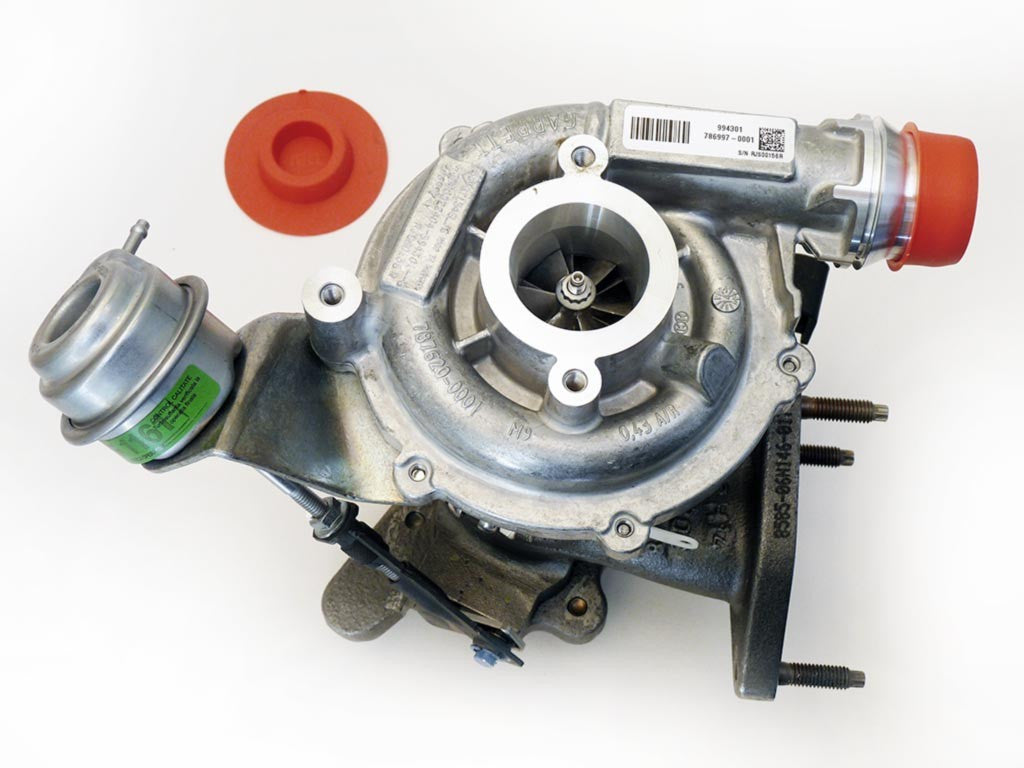

Turbo 786997-0001
Turbo 786997-0001
Regular price
€450,00 EUR
Regular price
Sale price
€450,00 EUR
Unit price
/
per
Couldn't load pickup availability

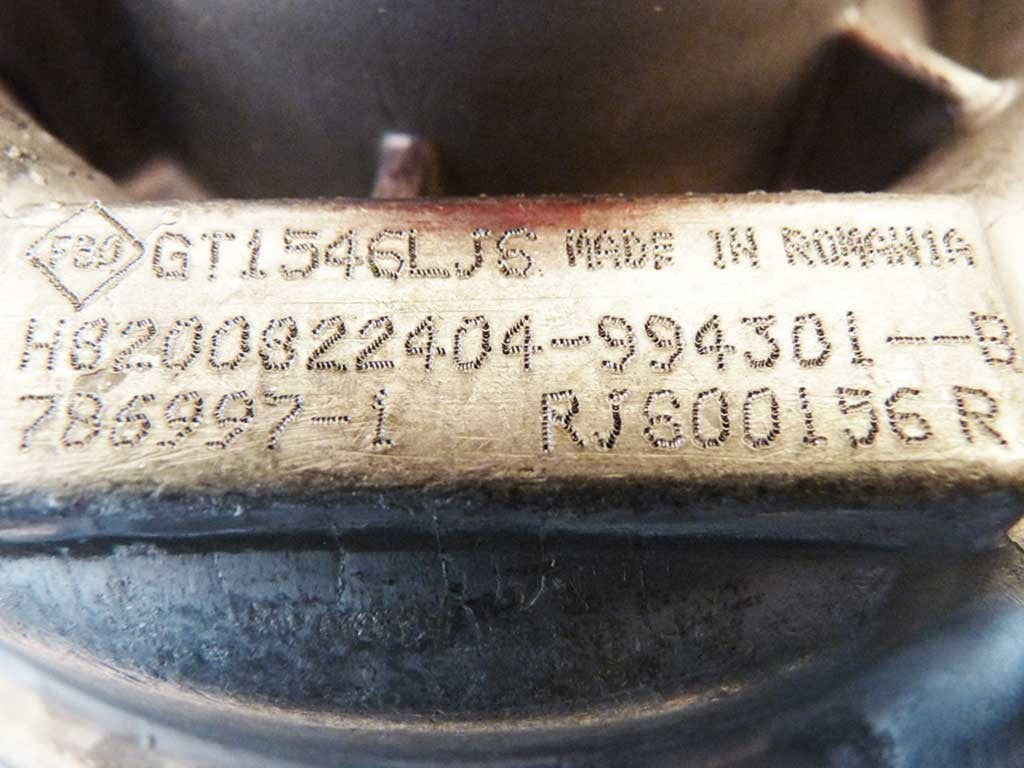

786997-0001 (144101946R, 144109364R, 144110463R) - Turbocharger GT1546LJS
Brand: Garrett
Model: GT15 - GT1546LJS
Garrett Reference: 786997-0001
OEM Numbers: 144101946R, 144109364R, 144110463R, 7701477300, 7711368774, 8200994301B
786997-0001 - Alternative numbers
GHT (Garrett turbo number): 786997-0001
GHT (Garrett turbo number): 786997-5001S
786997-0001 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: WGT (Wastegate Turbocharger)
786997-0001 - Turbo interchangeability
Interchangeable with: BorgWarner BW-GT1546LJS 57429880000
Interchangeable with: Garrett GT1546LJS 786997-0001-R
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0241 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0054 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0054 | 1 | 737686-0002, 784959-0002 | -- |
| TurboCentras | Repair kit | GA-04-0016 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0016 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| EE Turbo | Cartridge | GT15-086 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1056 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
144101946R, 144109364R, 144110463R, 7701477300, 7711368774, 786997-0001, 786997-5001S, 8200994301B
Data updated: 2024-05-17 10:03:01
