BorgWarner

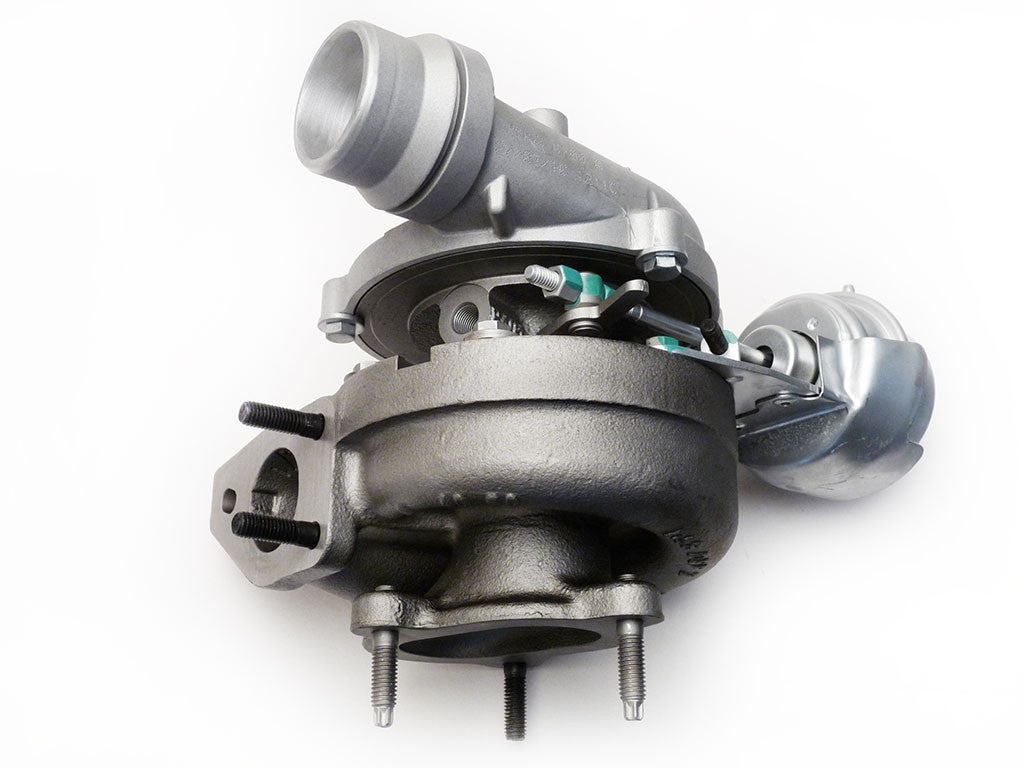

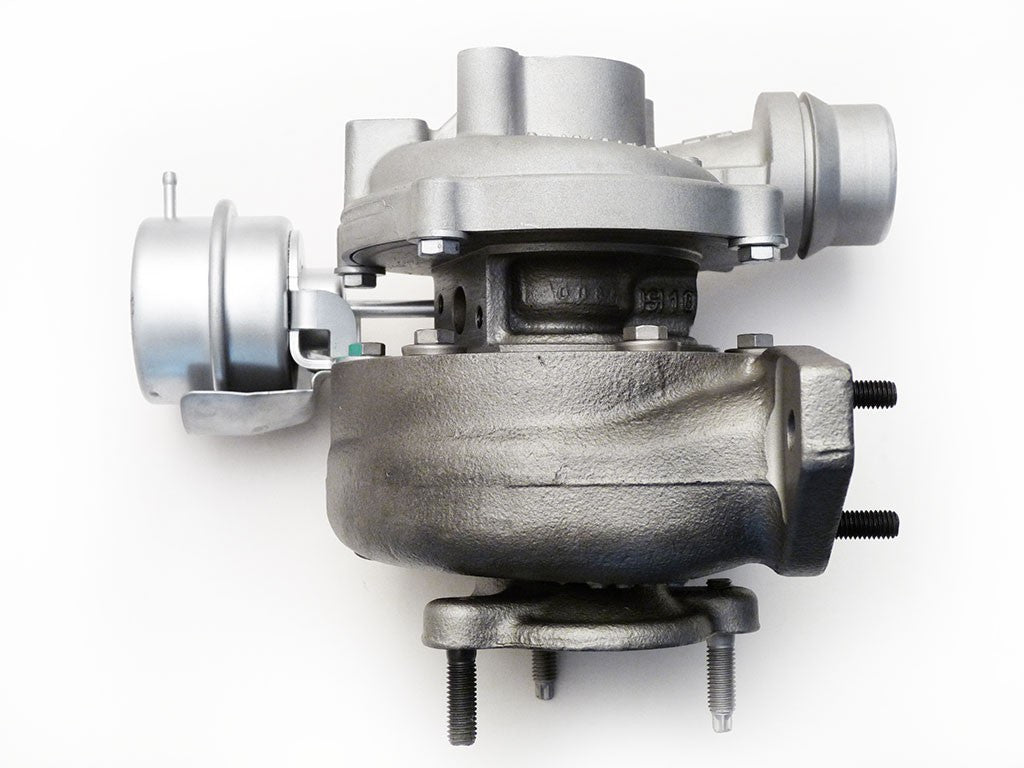

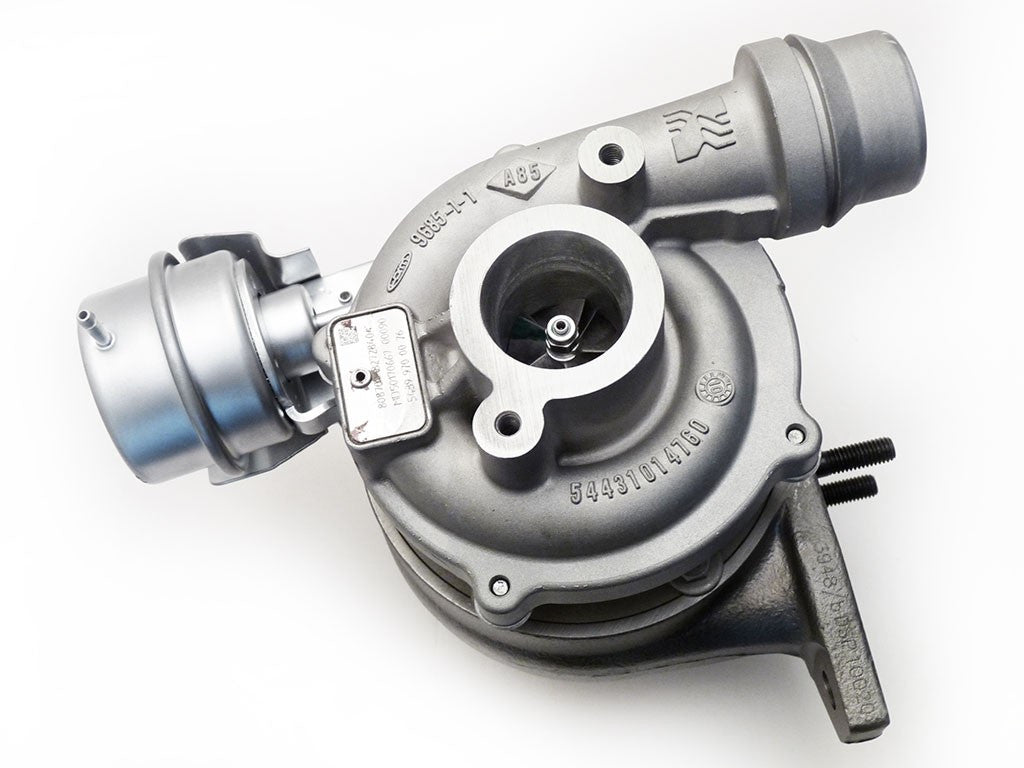

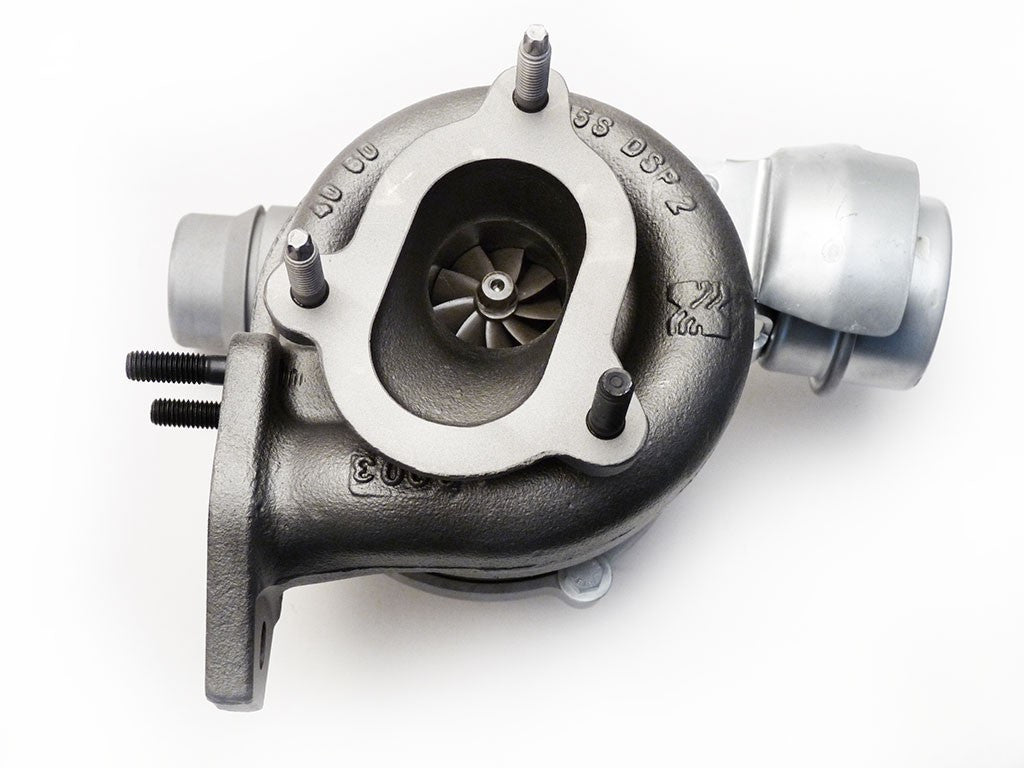

Turbo 54399700076 (R)
Turbo 54399700076 (R)
Regular price
€231,40 EUR
Regular price
Sale price
€231,40 EUR
Unit price
/
per
Couldn't load pickup availability
54399700076 (144114256R, 8200808701) - Turbocharger
Brand: BorgWarner
BorgWarner Reference: 54399700076
OEM Numbers: 144114256R, 8200808701
54399700076 - Alternative numbers

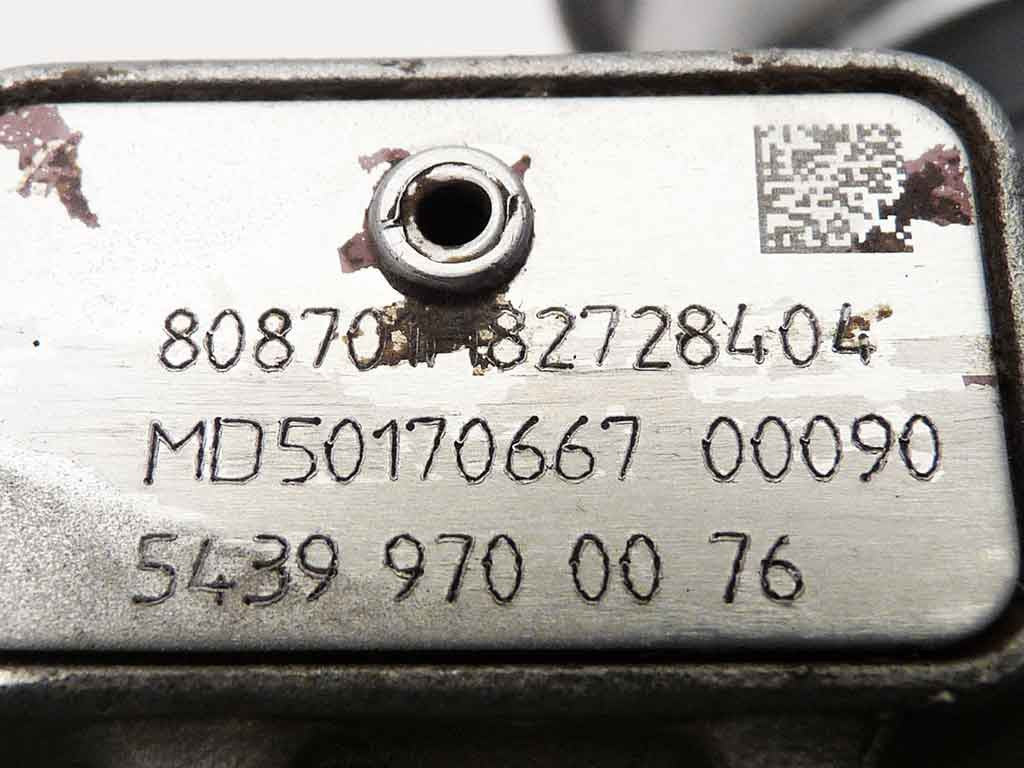

BWT (BorgWarner original turbo number): 5439 970 0076
54399700076 - Technologies and actuation
Actuation type: AIR (Air Actuation)
Turbocharger technology: VTG (Variable Turbine Geometry)
54399700076 - Turbo replacements
Replaced by: BorgWarner BV39-1867DBG340.18AVBXC 54399700127
54399700076 - Turbo interchangeability
Interchangeable with: BorgWarner BV39-1867DBG340.18AVBXC 54399700127
| Turbo 54399700076 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | BORGWARNER PART NUMBER |
| TurboCentras | Actuator | BV39-484 | 1 | -- | -- |
| TurboCentras | Heat shield | BV40-321 | 1 | -- | -- |
| TurboCentras | Heat shield primary | BV40-321A | 1 | -- | 1940 159 0804, 1940 159 0903 |
| TurboCentras | Heat shield secondary | BV40-321B | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | BV40-91 | 1 | -- | -- |
| TurboCentras | Compressor wheel | BW-03-0058 | 1 | -- | 5443 123 2037, 5443 123 2017, 5443 1232037 |
| TurboCentras | Journal bearing | KP35-100 | 2 | -- | -- |
| TurboCentras | Thrust bearing | KP35-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-132 | 1 | -- | -- |
| TurboCentras | Thrust flinger | KP35-133 | 1 | -- | -- |
| TurboCentras | Bearing spacer | KP35-149 | 1 | -- | -- |
| TurboCentras | Thrust washer | KP35-155 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | KP35-163 | 4 | -- | -- |
| TurboCentras | Shaft nut | KP35-180 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | KP35-200 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | KP35-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | KP35-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | KP35-203 | 1 | -- | -- |
| TurboCentras | Repair kit | KP35-51 | 1 | -- | -- |
| TurboCentras | Back plate | KP35-63 | 1 | -- | -- |
| TurboCentras | Cartridge | KP39-228 | 1 | -- | 5439 710 0525 |
| TurboCentras | Bearing housing | KP39-316 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | KP39-40 | 1 | -- | -- |
| TurboCentras | Bolt | M3X12 | 2 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Bolt | M6X12PV | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
54399700076, 144114256R, 5439 970 0076, 8200808701
Data updated: 2023-03-24 07:15:34
