Garrett
Turbo 775517-0001-R
Turbo 775517-0001-R
Regular price
€289,26 EUR
Regular price
Sale price
€289,26 EUR
Unit price
/
per
Couldn't load pickup availability

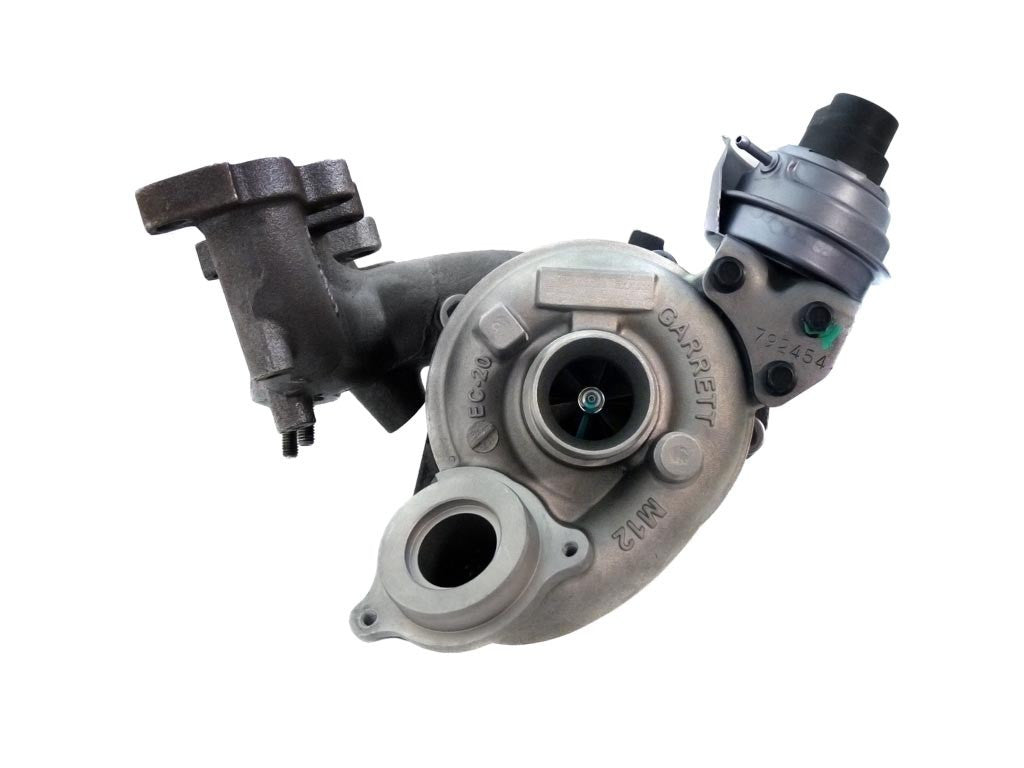

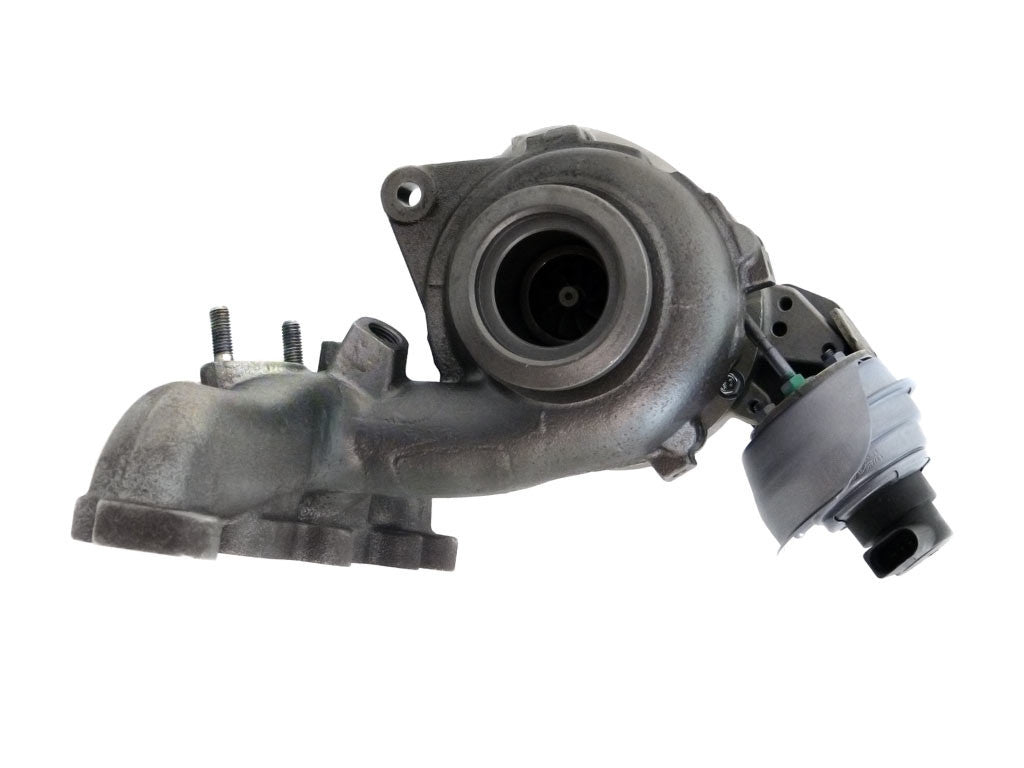

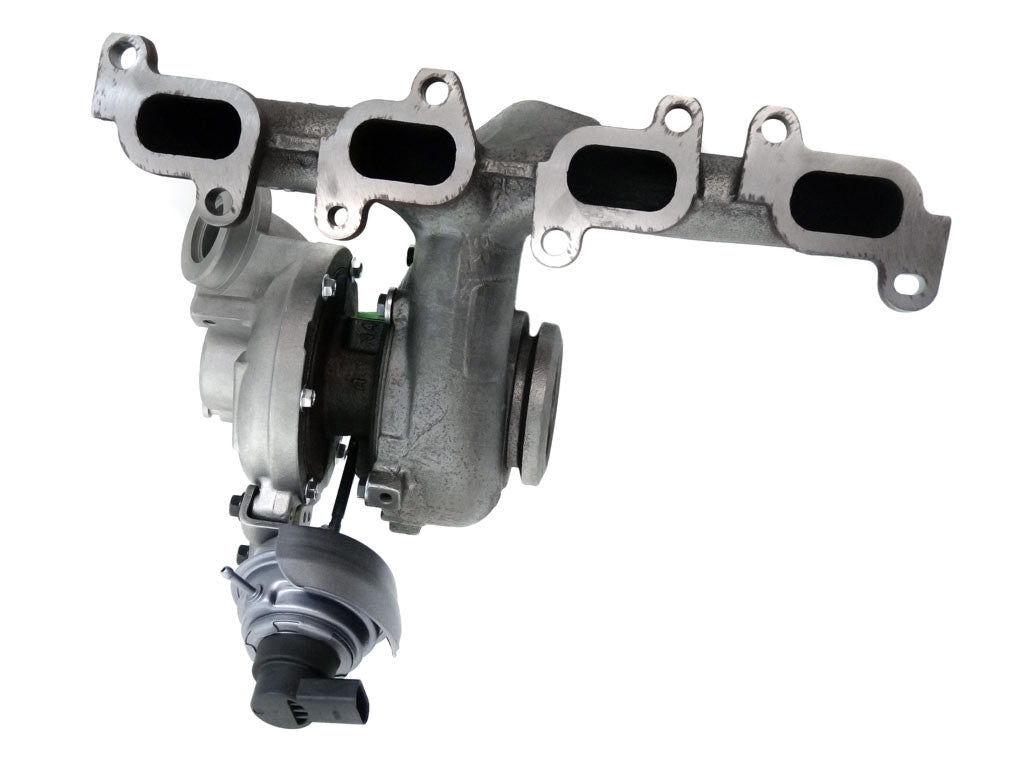

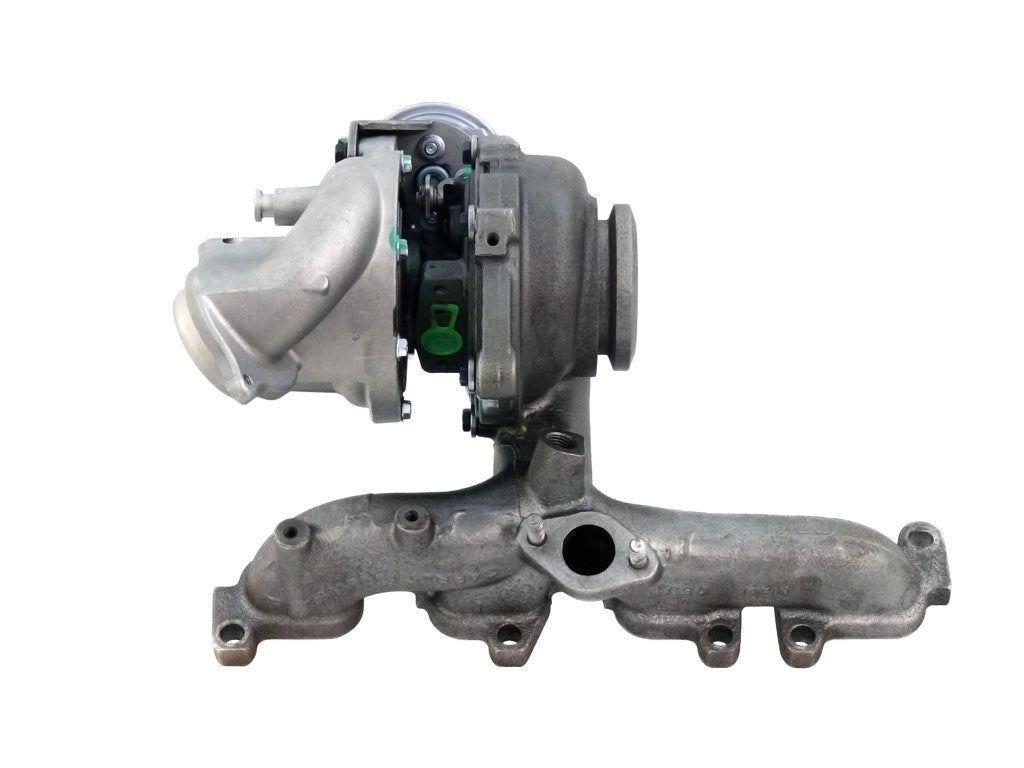

775517-0001 (03L253016T) - Turbocharger GTC1244MVZ
Brand: Garrett
Model: GT12 - GTC1244MVZ

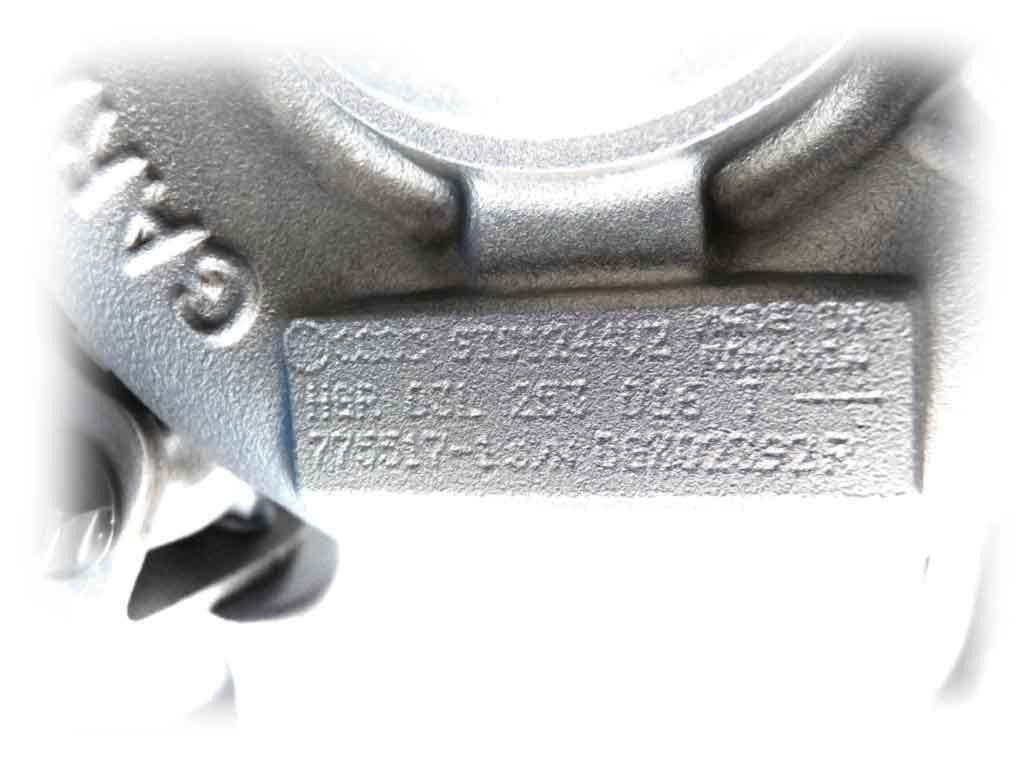

Garrett Reference: 775517-0001
OEM Numbers: 03L253016T
775517-0001 - Alternative numbers
GHT (Garrett turbo number): 775517-0001
GHT (Garrett turbo number): 775517-5001S
775517-0001 - Technologies and actuation
Actuation type: Vacuum (Vacuum actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
775517-0001 - Turbo replacements
Replaced by: Garrett GTC1244MVZ 775517-0002, 03L253016T, 775517-5002S, 775517-9002S
775517-0001 - Turbo interchangeability
Interchangeable with: BMTS BM 40007022, 03L253016, 03L253016T
Interchangeable with: Garrett GTC1244MVZ 775517-0002, 03L253016T, 775517-5002S, 775517-9002S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| Garrett | Actuator | 792430-0003 | 1 | -- | -- |
| Garrett | Actuator | 794081-0176 | 1 | -- | -- |
| Garrett | Actuator | 794081-0184 | 1 | -- | -- |
| TurboCentras | Shaft nut | BW-21-0001 | 1 | -- | -- |
| TurboCentras | Cartridge | GA-00-0024 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0031 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0032 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0016 | 1 | 786554-0003 | -- |
| TurboCentras | Repair kit | GA-04-0010 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0001 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0003 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0001 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | GA-50-0001 | 1 | -- | -- |
| EE Turbo | Cartridge | GT12-001 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT14-101 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT14-130 | 1 | -- | -- |
| TurboCentras | VNT centering ring | GT14-149 | 1 | -- | -- |
| TurboCentras | Piston ring | GT14-160 | 3 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 3 | -- | -- |
| TurboCentras | Gasket oil outlet | T-14 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1083 | 1 | -- | -- |
03L253016T, 775517-0001, 775517-5001S
Data updated: 2024-12-19 16:17:23
