Garrett
Turbo 759688-0007-R
Turbo 759688-0007-R
Regular price
€350,00 EUR
Regular price
Sale price
€350,00 EUR
Unit price
/
per
Couldn't load pickup availability

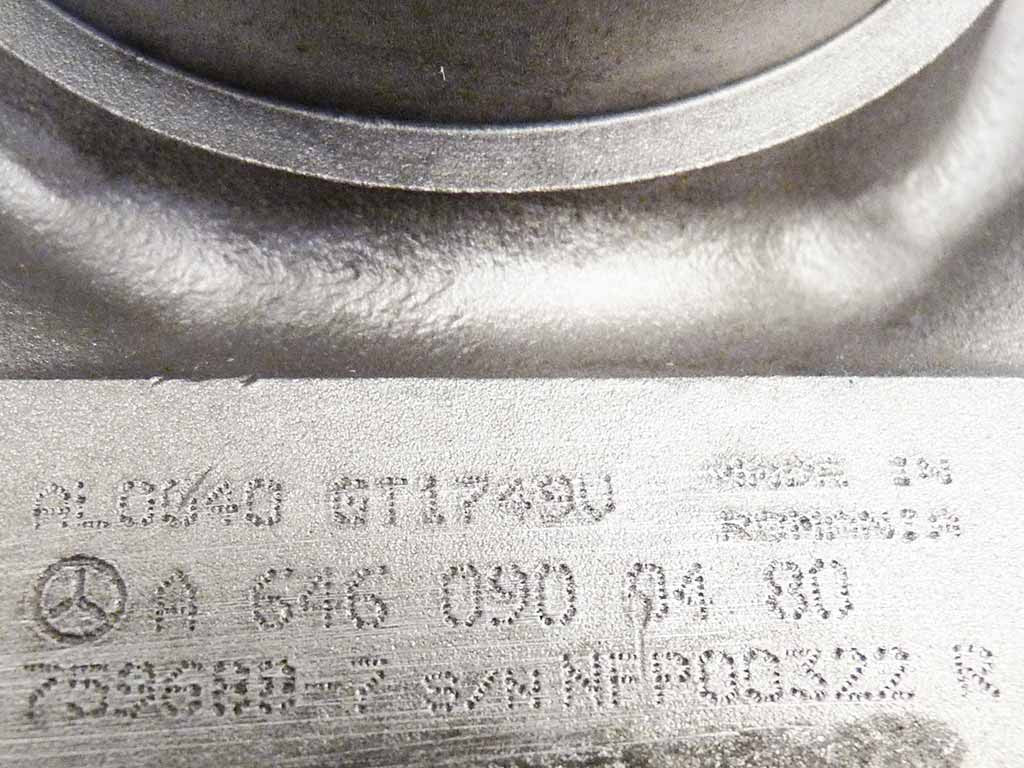

759688-0007 (A6460900480) - Turbocharger GT1749V
Brand: Garrett
Model: GT17 - GT1749V
Garrett Reference: 759688-0007
OEM Numbers: A6460900480
759688-0007 - Alternative numbers
GHT (Garrett turbo number): 759688-0007
759688-0007 - Turbo replacements
Replaced by: Garrett GT1749V 759688-0009, 759688-5009S, A6460900480
759688-0007 - Turbo interchangeability
Interchangeable with: Garrett GT1749V 759688-0002, 759688-5002S, A6460900480
Interchangeable with: Garrett GT1749V 759688-0003, A6460900480
Interchangeable with: Garrett GT1749V 759688-0005, A6460900480
Interchangeable with: Garrett GT1749V 759688-0009, 759688-5009S, A6460900480
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0132 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0125 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0005 | 1 | 739921-0022, 739921-0046 | -- |
| TurboCentras | Compressor wheel | GA-03-0075 | 1 | 735492-0002, 784361-0002 | -- |
| TurboCentras | Repair kit | GA-04-0016 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0015 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0046 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 2 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | GT16-149-1 | 1 | -- | -- |
| TurboCentras | VNT nozzle cage | GT17-700 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1005 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1005F | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
759688-0007, A6460900480
Data updated: 2024-11-22 10:27:54
