Garrett
Turbo 755042-0003-R
Turbo 755042-0003-R
Couldn't load pickup availability

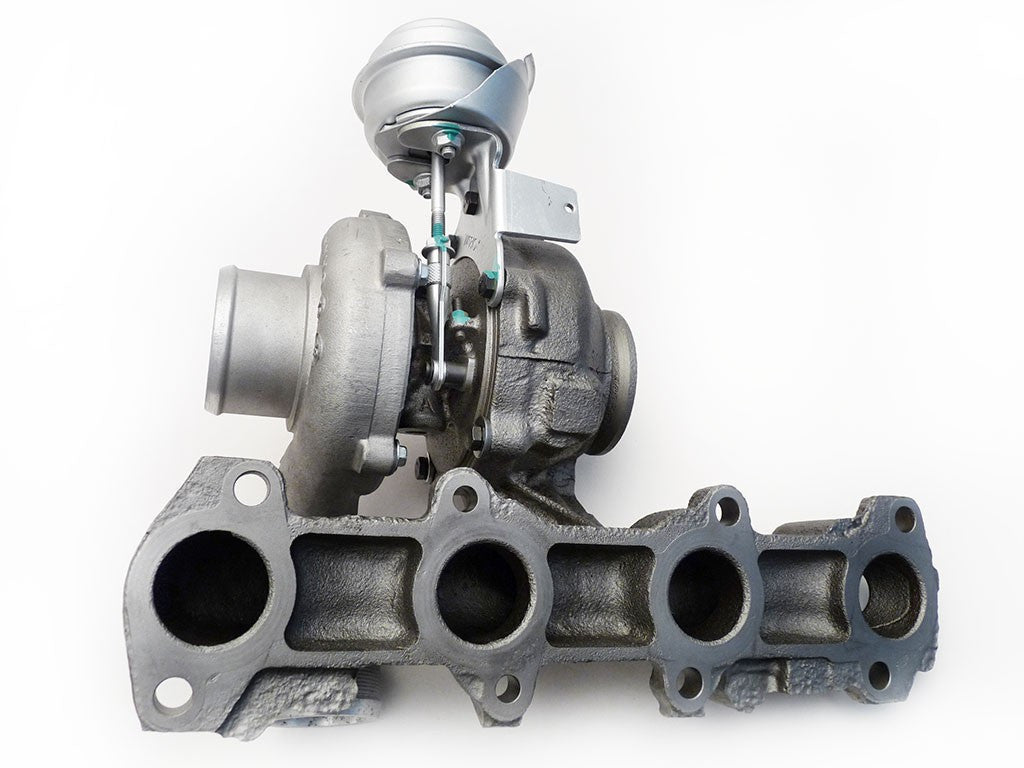

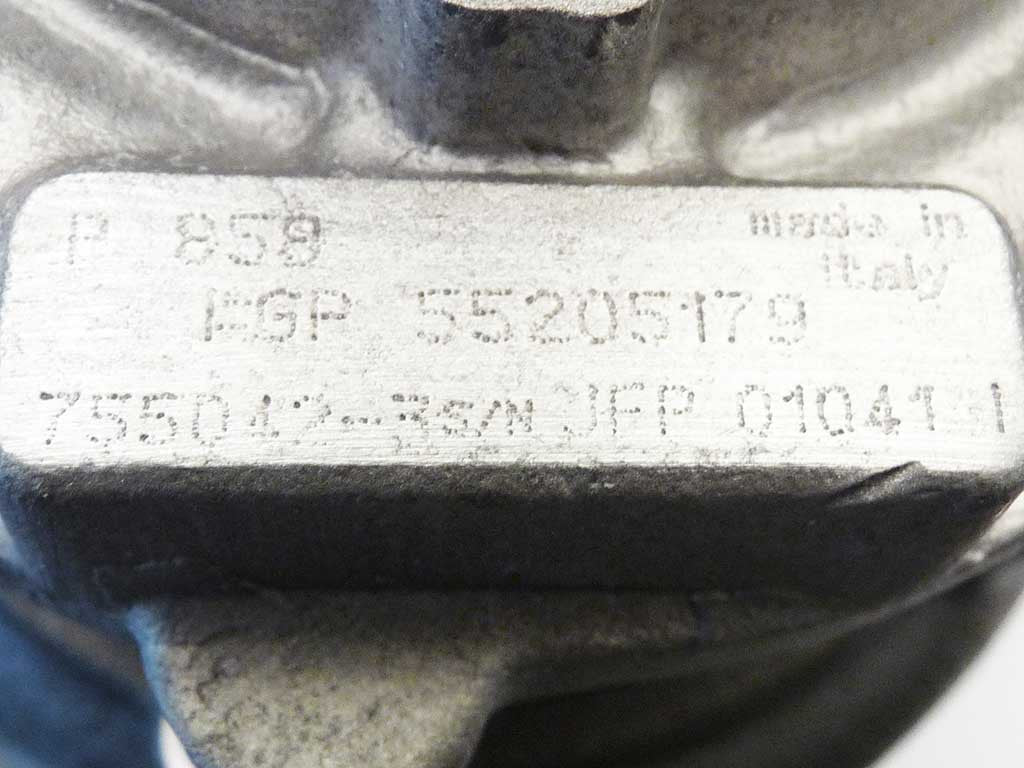

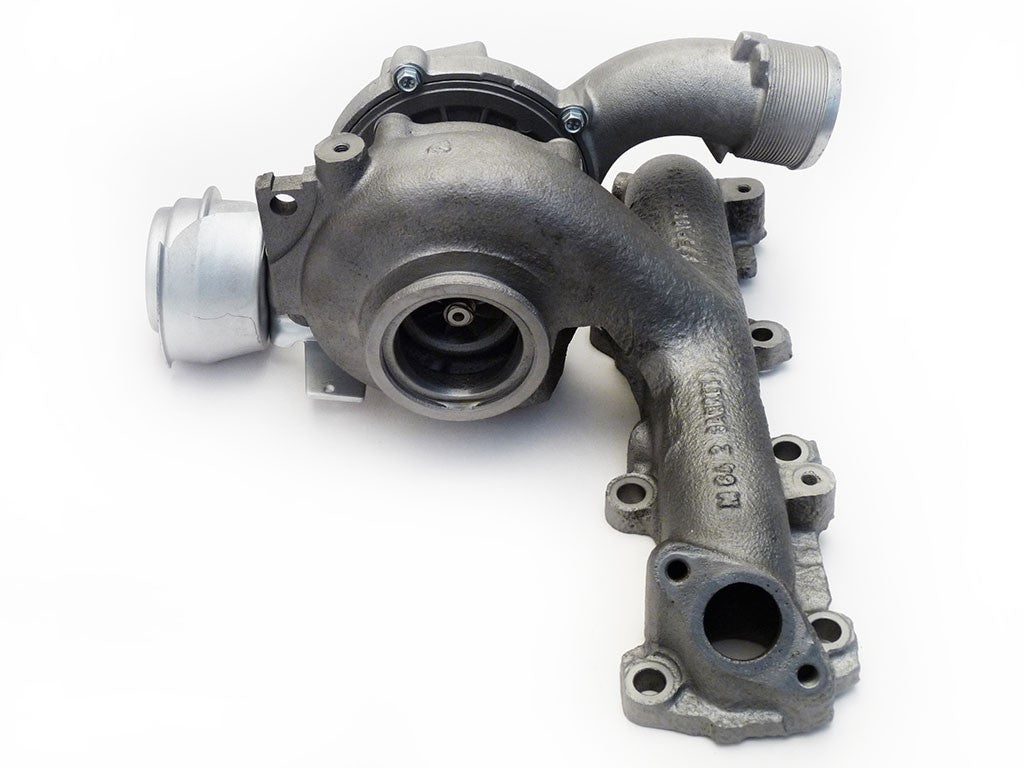

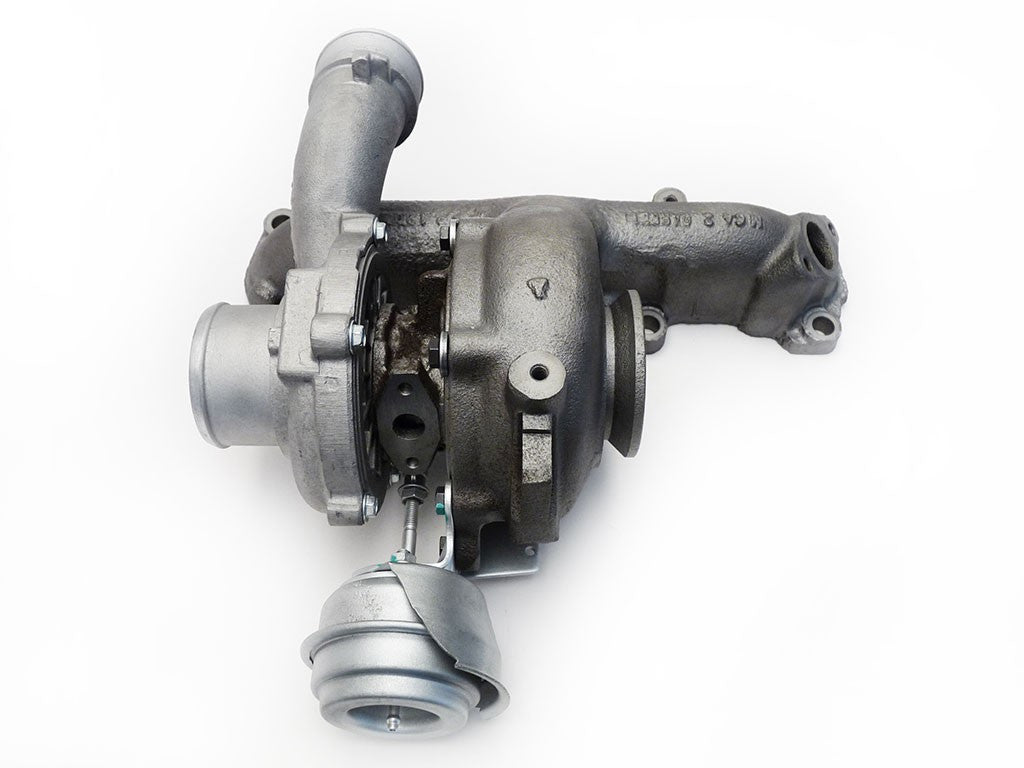

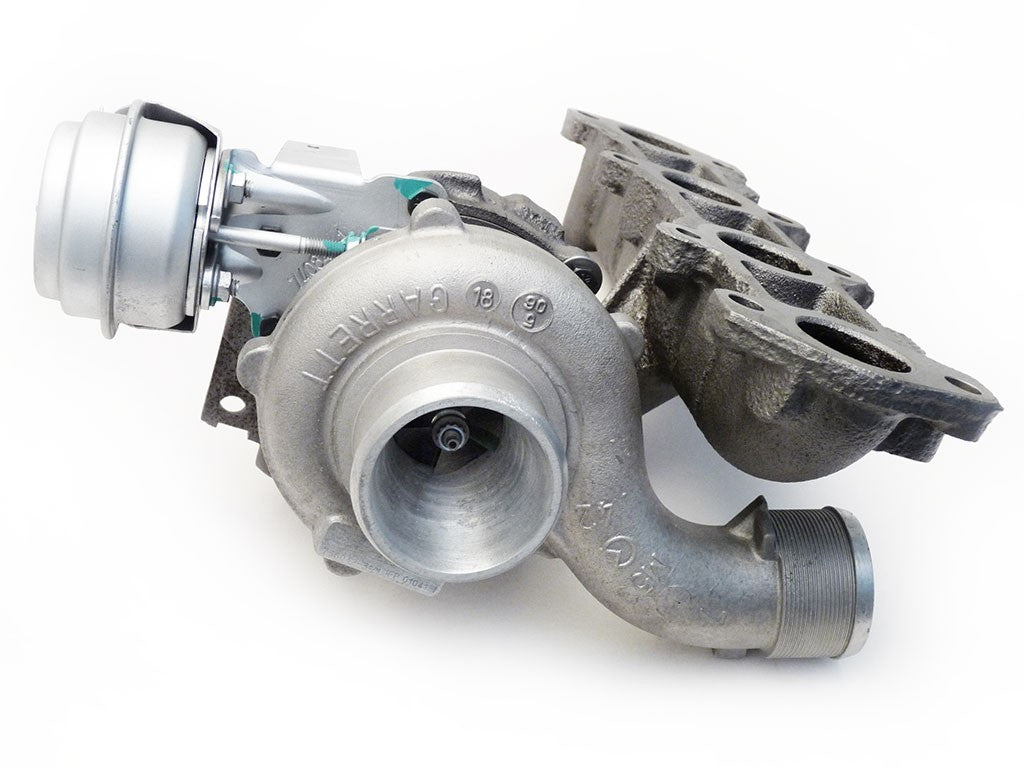

755042-0003-R (55188334, 55190871, 55193105) - Turbocharger GT1749MV
Brand: Garrett
Model: GT17 - GT1749MV
Garrett Reference: 755042-0003-R
OEM Numbers: 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474
755042-0003-R - Alternative numbers
GHT (Garrett turbo number): 755042-0003
GHT (Garrett turbo number): 755042-0003-R
GHT (Garrett turbo number): 755042-9003S
755042-0003-R - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger), IMF (Integrated Manifold Turbocharger)
755042-0003-R - Turbo replacements
Replaced by: Garrett GTA1749MV 767835-0003, 55205474, 767835-5003S, 767835-9003S
755042-0003-R - Turbo interchangeability
Interchangeable with: Garrett GT1749MV 740080-0002, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 740080-5002S
Interchangeable with: Garrett GT1749MV 752814-0001, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474
Interchangeable with: Garrett GT1749MV 755042-0001, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 755042-5001S
Interchangeable with: Garrett GT1749MV 755042-0002, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474
Interchangeable with: Garrett GT1749MV 755042-0003, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474
Interchangeable with: Garrett GT1749MV 755042-9003S, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 755042-0003
Interchangeable with: Garrett GT1749MV 755373-0001, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 755373-5001S
Interchangeable with: Garrett GT1749MV 767835-0001, 55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 767835-5001S
Interchangeable with: Garrett GTA1749MV 767835-0003, 55205474, 767835-5003S, 767835-9003S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0110 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0100 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0006 | 1 | 729099-0001 | -- |
| TurboCentras | Compressor wheel | GA-03-0039 | 1 | -- | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0026 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0034 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0045 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | GA-50-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT17-010 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC-62-0005 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
55188334, 55190871, 55193105, 55195787, 55196765, 55196858, 55205179, 55205474, 755042-0003, 755042-0003-R, 755042-9003S
Data updated: 2025-04-11 09:26:33
