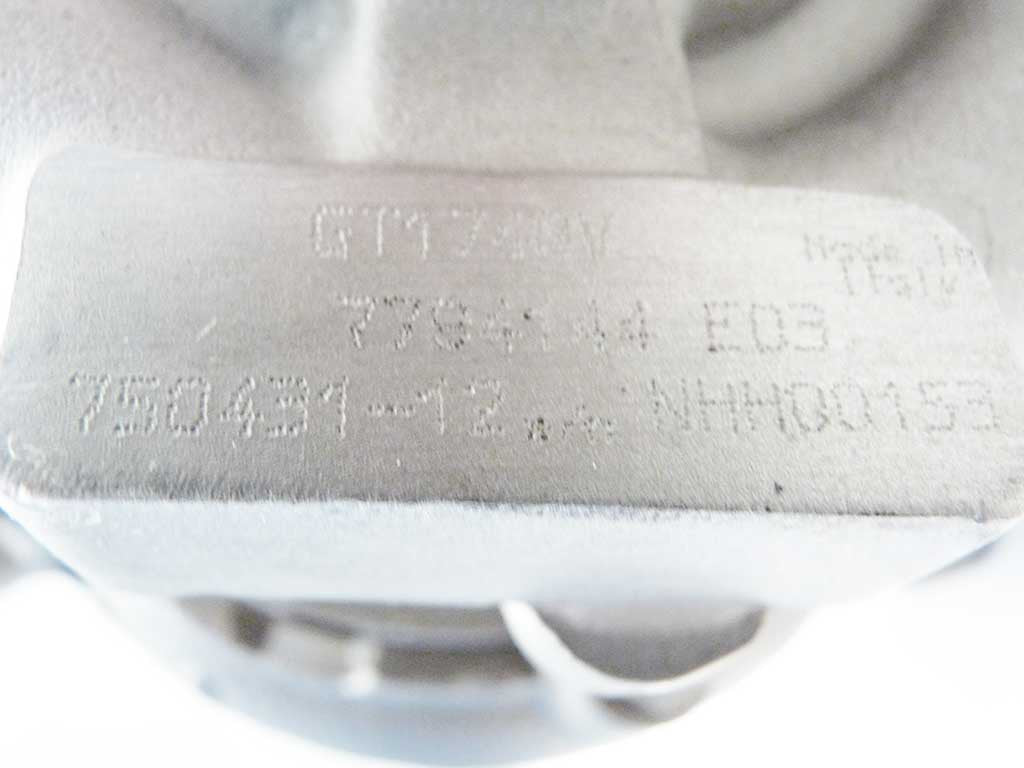

Turbo 750431-0012-R 750431-0012 (R)
Turbo 750431-0012-R 750431-0012 (R)
Couldn't load pickup availability
750431-0012-R (7794144000) - Turbocharger GT1749V
Brand: Garrett
Model: GT17 - GT1749V
Garrett Reference: 750431-0012-R
OEM Numbers: 7794144000
750431-0012-R - Alternative numbers
GHT (Garrett turbo number): 750431-0012
GHT (Garrett turbo number): 750431-9012S
750431-0012-R - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
750431-0012-R - Turbo replacements
Replaced by: Garrett GT1749V 750431-0013
Replacement for: Garrett GT1749V 717478-0001
Replacement for: Garrett GTA1749V 717478-0002
Replacement for: Garrett GTA1749V 717478-0003
Replacement for: Garrett GTA1749V 717478-0004
Replacement for: Garrett GTA1749V 717478-0005
Replacement for: Garrett GT1749V 717478-0006
Replacement for: Garrett GT1749V 750431-0004
Replacement for: Garrett GT1749V 750431-0007
Replacement for: Garrett GT1749V 750431-0010
750431-0012-R - Turbo interchangeability
Interchangeable with: Garrett GT1749V 717478-0001
Interchangeable with: Garrett GTA1749V 717478-0002
Interchangeable with: Garrett GTA1749V 717478-0003
Interchangeable with: Garrett GTA1749V 717478-0004
Interchangeable with: Garrett GTA1749V 717478-0005
Interchangeable with: Garrett GT1749V 717478-0006
Interchangeable with: Garrett GT1749V 750431-0004
Interchangeable with: Garrett GT1749V 750431-0007
Interchangeable with: Garrett GT1749V 750431-0010
Interchangeable with: Garrett GT1749V 750431-0012
Interchangeable with: Garrett GT1749V 750431-0013
Interchangeable with: Garrett GT1749V 750431-9012S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0063 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0096 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0035 | 1 | 702489-0001, 702489-0004, 702489-0005, 702489-0007 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0025 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0005 | 1 | 700593-0006 | -- |
| TurboCentras | Actuator | GA-10-0046 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | VNT Ring | GT17-93-1 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1001 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1001F | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
750431-0012, 750431-9012S, 7794144000
Data updated: 2024-05-17 09:02:14
