Garrett

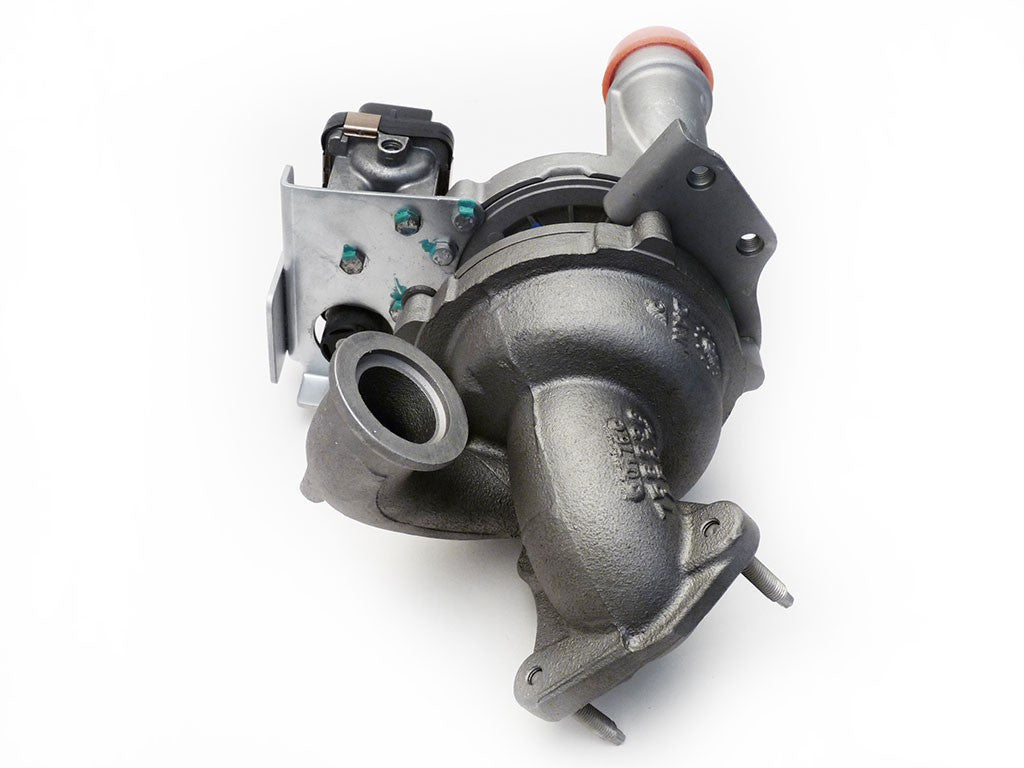

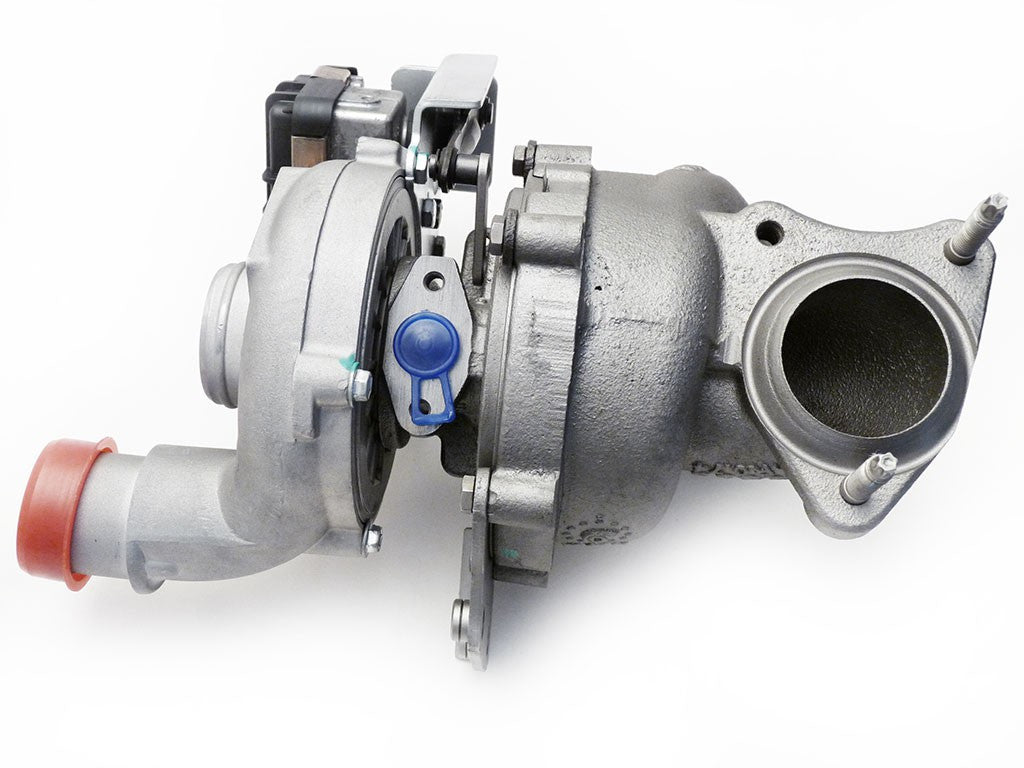

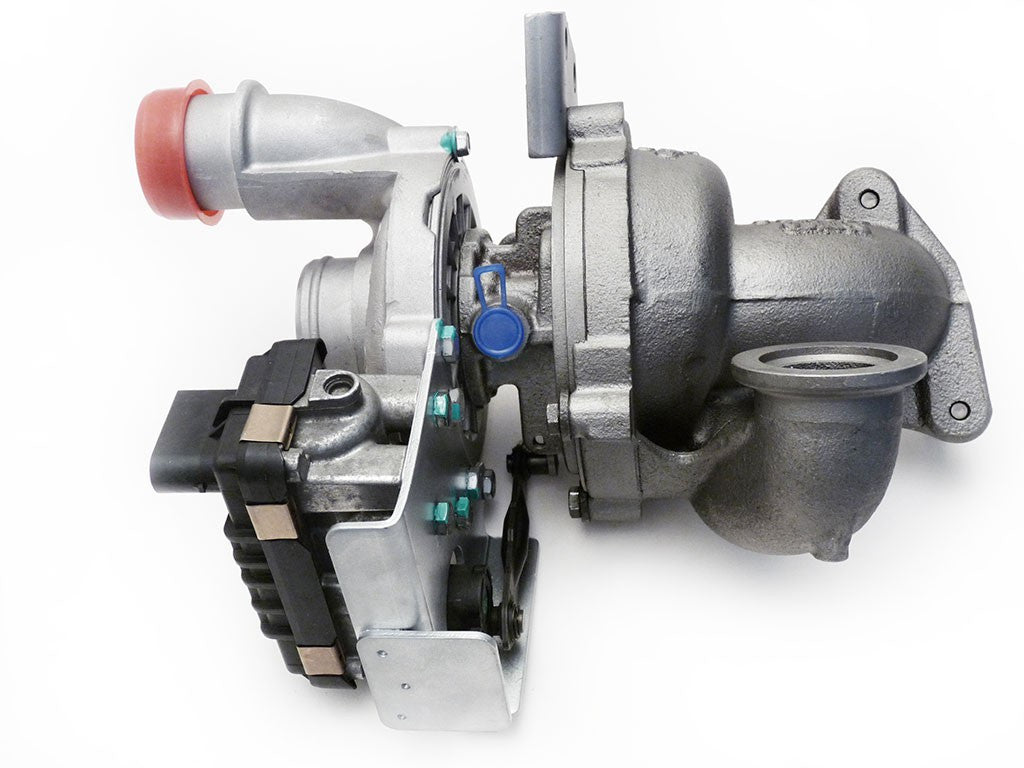

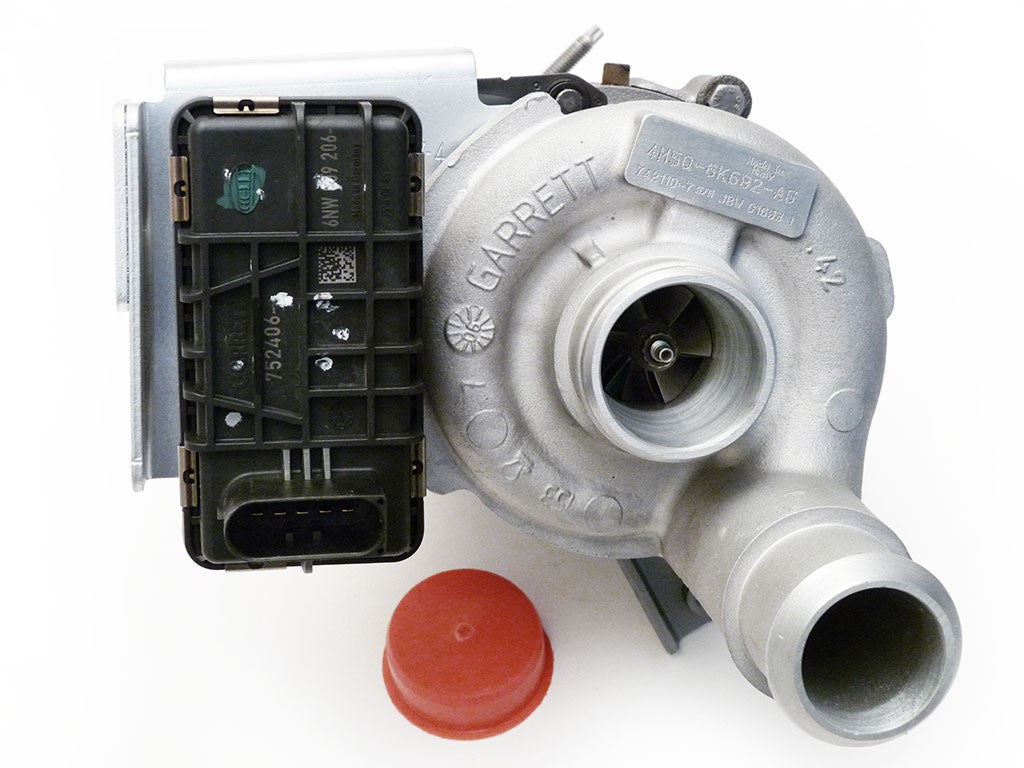

Turbo 742110-0007-R 742110-0007 (R)
Turbo 742110-0007-R 742110-0007 (R)
Regular price
€350,00 EUR
Regular price
Sale price
€350,00 EUR
Unit price
/
per
Couldn't load pickup availability
742110-0007-R (4M5Q-6K682-AG, 4M5Q6K682AG) - Turbocharger GT1746V
Brand: Garrett
Model: GT17 - GT1746V
Garrett Reference: 742110-0007-R

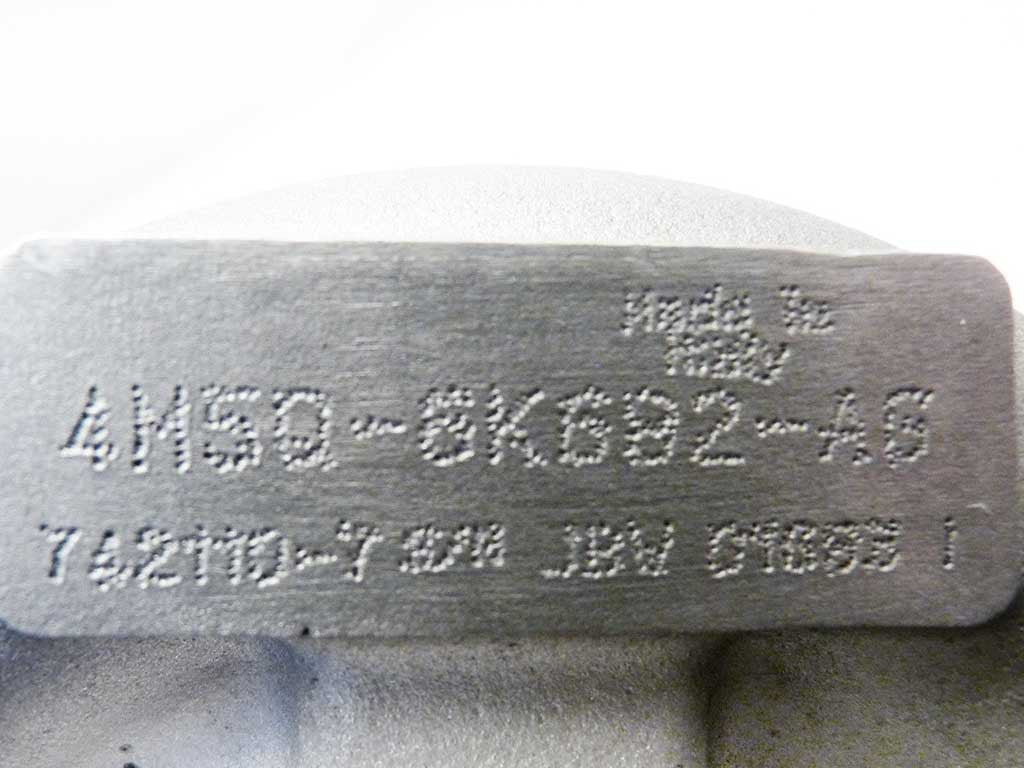

OEM Numbers: 4M5Q-6K682-AG, 4M5Q6K682AG
742110-0007-R - Alternative numbers
GHT (Garrett turbo number): 742110-0007
GHT (Garrett turbo number): 742110-5007S
GHT (Garrett turbo number): 742110-9007S
742110-0007-R - Technologies and actuation
Actuation type: Electric (Electric actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
742110-0007-R - Turbo replacements
Replacement for: Garrett GT1746V 742110-0004
Replacement for: Garrett GT1746V 742110-0006
742110-0007-R - Turbo interchangeability
Interchangeable with: Garrett GT1746V 742110-0004
Interchangeable with: Garrett GT1746V 742110-0006
Interchangeable with: Garrett GT1746V 742110-0007
Interchangeable with: Garrett GT1746V 742110-9007S-R
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| Hella | Actuator | 6NW008412-511 | 1 | -- | 712120-0222, 712120-0155 |
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0104 | 1 | -- | -- |
| TurboCentras | Bearing housing | GA-01-0076 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0063 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GA-03-0045 | 1 | 737686-0003 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0015 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0016 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0038 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | VNT outer gasket | GT16-149-1 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1062 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
4M5Q-6K682-AG, 4M5Q6K682AG, 742110-0007, 742110-5007S, 742110-9007S
Data updated: 2024-05-17 08:54:20
