Garrett

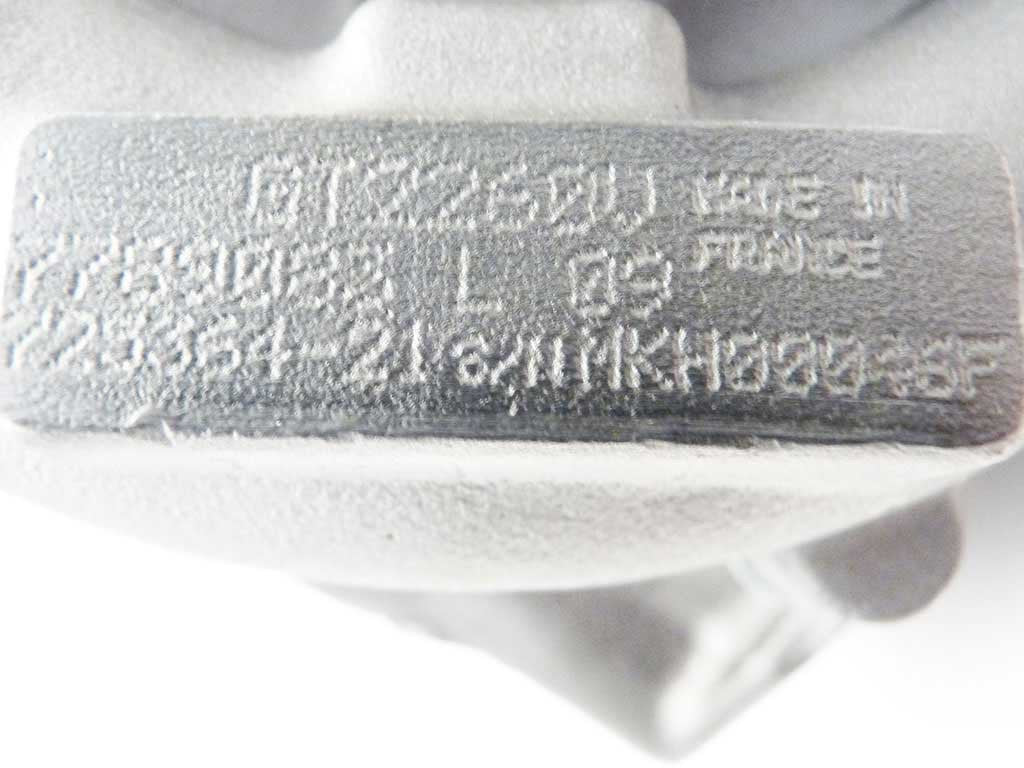

Turbo 725364-0021 (R)
Turbo 725364-0021 (R)
Regular price
€231,40 EUR
Regular price
Sale price
€231,40 EUR
Unit price
/
per
Couldn't load pickup availability
725364-0021 (7789083L09) - Turbocharger
Brand: Garrett
Garrett Reference: 725364-0021
OEM Numbers: 7789083L09
725364-0021 - Alternative numbers
GHO (Garrett original part number): 725364-0021
GHA (Garrett aftermarket part number): 725364-5021S
725364-0021 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuation)
Turbocharger technology: VNT (Variable Nozzle Turbine)
725364-0021 - Turbo replacements
Replaced by: Garrett GTA2260V 725364-0022
725364-0021 - Turbo interchangeability
Interchangeable with: Garrett GT2260V 725364-0004
Interchangeable with: Garrett GTA2260V 725364-0006
Interchangeable with: Garrett GTA2260V 725364-0007
Interchangeable with: Garrett GTA2260V 725364-0012
Interchangeable with: Garrett GTA2260V 725364-0018
Interchangeable with: Garrett GTA2260V 725364-0022
| Turbo 725364-0021 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | Heat shield | GT15-323 | 1 | -- | 443768-0003 |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Repair kit | GT15-50 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GT20-91 | 1 | -- | -- |
| E&E Turbo | Cartridge | GT22-009 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GT22-01 | 1 | -- | 720915-0004 |
| TurboCentras | Cartridge | GT22-213 | 1 | -- | -- |
| TurboCentras | Bearing housing | GT22-301 | 1 | -- | -- |
| TurboCentras | Turbine housing | GT22-500 | 1 | -- | -- |
| TurboCentras | Back plate | GT22-62 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GT25-35 | 1 | -- | 740244-0001 |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1001 | 1 | -- | -- |
| TurboCentras | Gaskets kit | TC1001F | 1 | -- | -- |
725364-0021, 725364-5021S, 7789083L09
Data updated: 2022-08-19 17:08:14
