Garrett
Turbo 721164-0014-R
Turbo 721164-0014-R
Couldn't load pickup availability

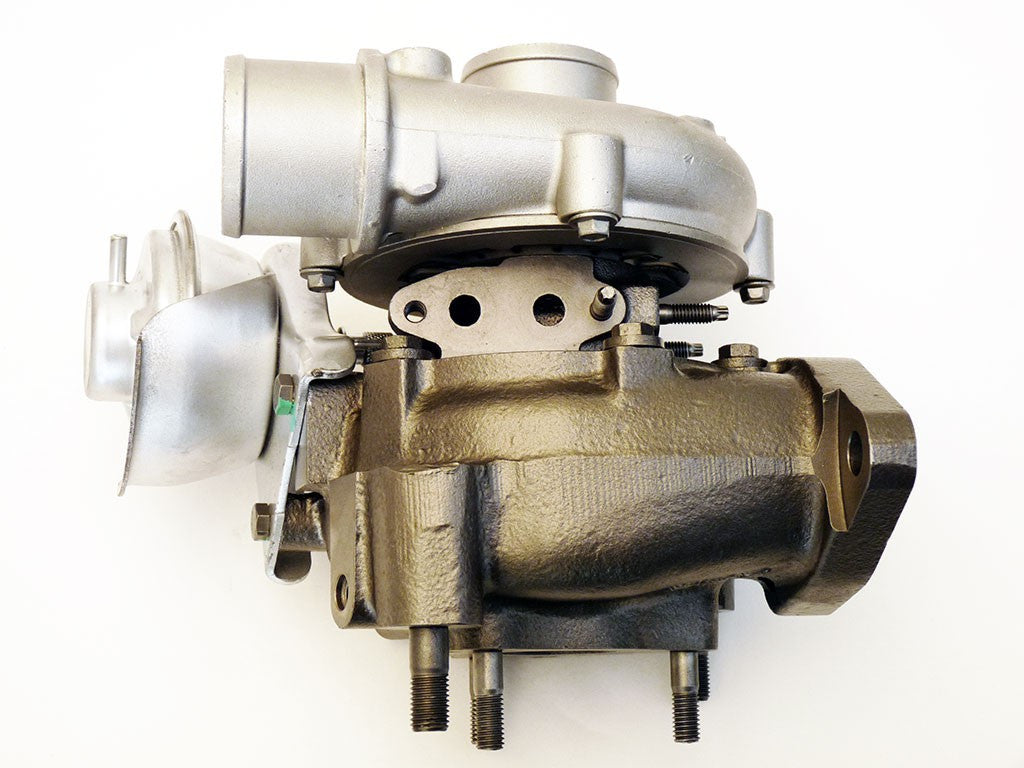

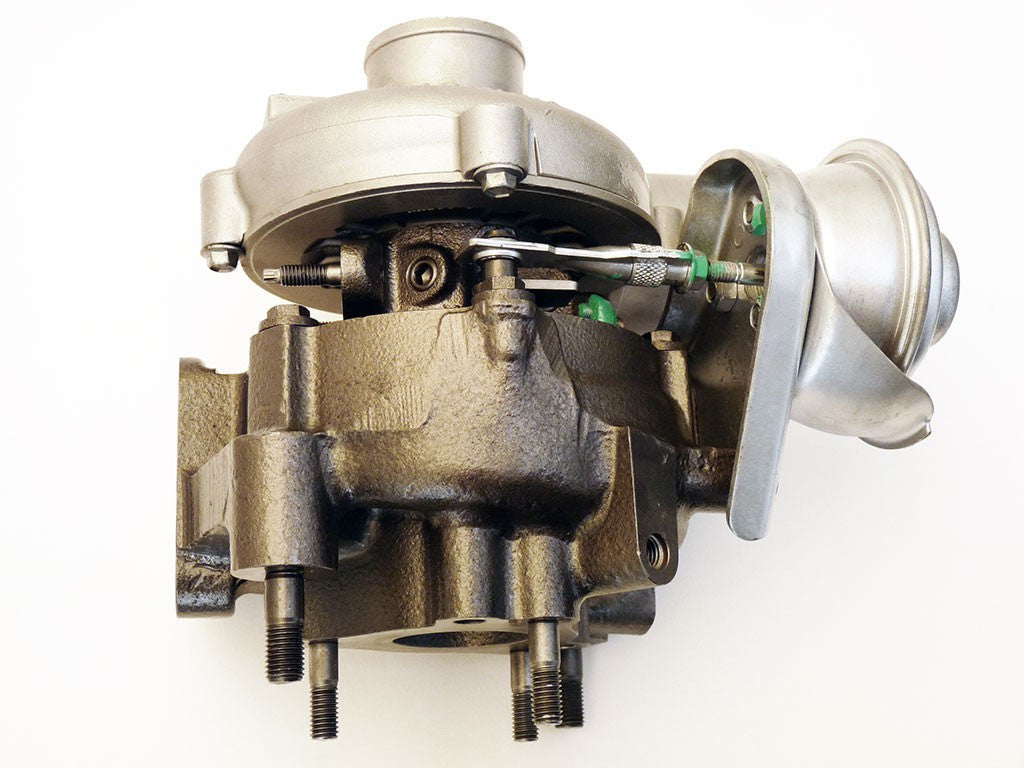

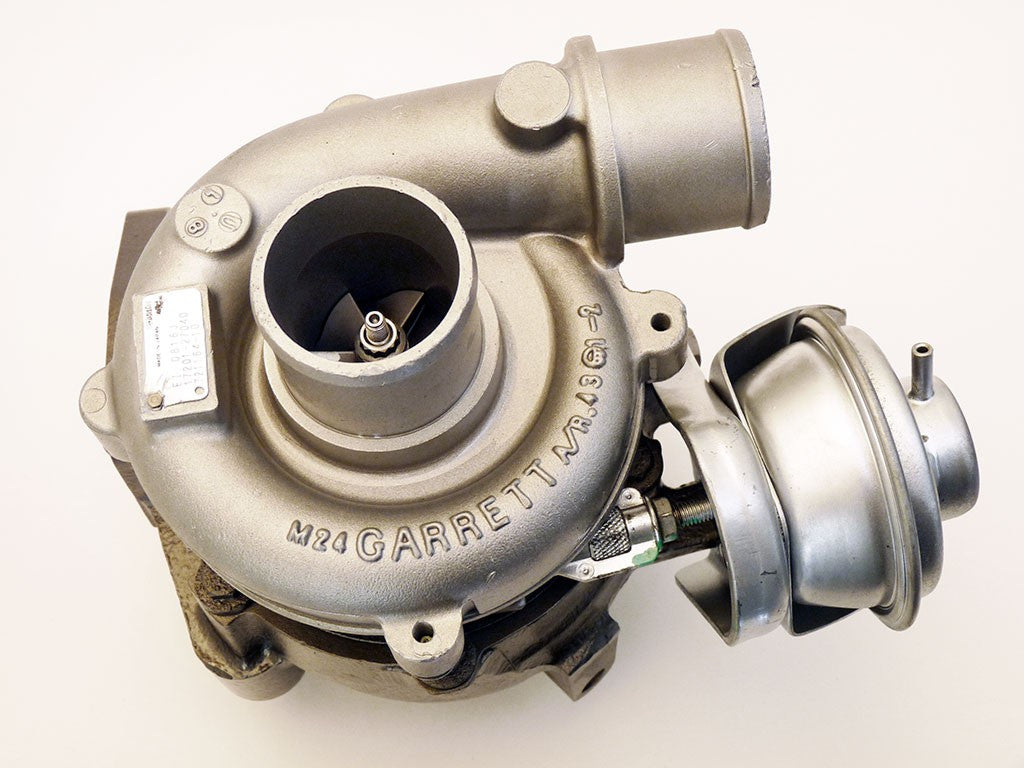

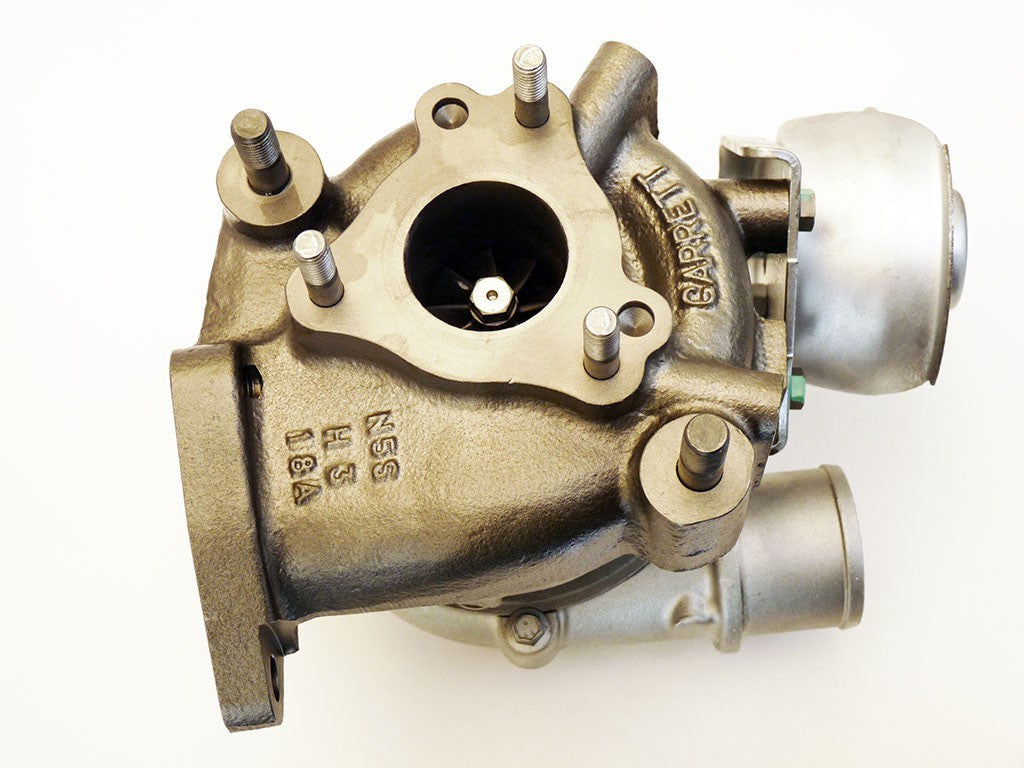

721164-0014 (1720127040D) - Turbocharger GT1749V
Brand: Garrett
Model: GT17 - GT1749V
Garrett Reference: 721164-0014

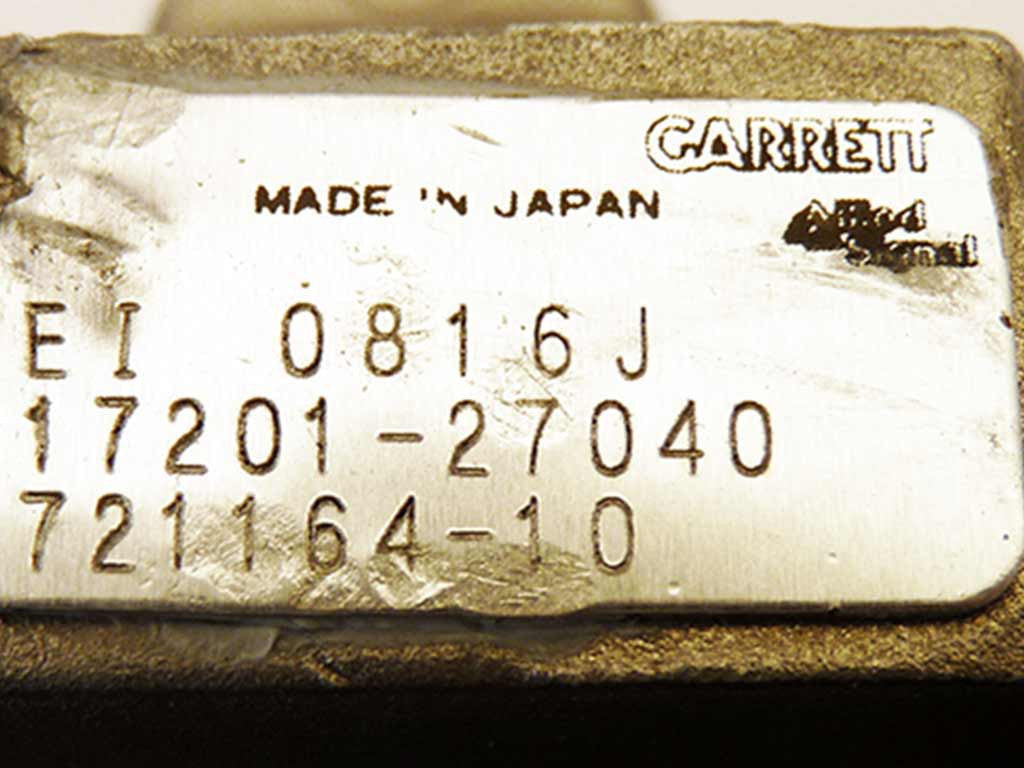

OEM Numbers: 1720127040D
721164-0014 - Alternative numbers
GHT (Garrett turbo number): 721164-0014
GHT (Garrett turbo number): 721164-5014S
721164-0014 - Technologies and actuation
Actuation type: Pneumatic (Pneumatic actuator)
Turbocharger technology: VGT (Variable Geometry (VFT, VG, VGS, VGT, VNT, VTG) Turbocharger)
721164-0014 - Turbo replacements
Replaced by: Garrett GT1749V 801891-0002, 1720127040D, 801891-5002S
Replaced by: Garrett GT1749V 801891-0003, 1720127040D, 801891-5003S
Replacement for: Garrett GT1749V 721164-0004, 1720127040
Replacement for: Garrett GT1749V 721164-0012, 1720127030, 1720127030D
721164-0014 - Turbo interchangeability
Interchangeable with: BorgWarner BW-GTA1749V 57439880008, 1720127030D, 1720127040D, 5743 988 0008, 721164-0004, 721164-0012, 721164-0014, 801891-0002, 801891-0003
Interchangeable with: Garrett GT1749V 721164-0004, 1720127040
Interchangeable with: Garrett GT1749V 721164-0012, 1720127030, 1720127030D
Interchangeable with: Garrett GT1749V 801891-0002, 1720127040D, 801891-5002S
Interchangeable with: Garrett GT1749V 801891-0003, 1720127040D, 801891-5003S
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
|---|---|---|---|---|---|
| TurboCentras | Bolt | BO-98-0004 | 6 | -- | -- |
| TurboCentras | Bolt | BO-98-0005 | 6 | -- | -- |
| TurboCentras | Cartridge | GA-00-0095 | 1 | -- | 701864-0020 |
| TurboCentras | Bearing housing | GA-01-0095 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GA-02-0068 | 1 | 433257-0010, 434533-0007, 434533-0009, 434533-0015, 434533-0035, 434533-0037, 434533-0058, 434533-0059 | -- |
| TurboCentras | Compressor wheel | GA-03-0030 | 1 | 436132-0003, 436132-0014, 436334-0003, 701300-0007, 703925-0003, 703925-0011, 706164-0003 | -- |
| TurboCentras | Repair kit | GA-04-0015 | 1 | -- | -- |
| TurboCentras | Heat shield | GA-05-0013 | 1 | -- | -- |
| TurboCentras | Nozzle ring assy. | GA-06-0022 | 1 | -- | -- |
| TurboCentras | Back plate | GA-08-0017 | 1 | -- | -- |
| TurboCentras | Actuator | GA-10-0027 | 1 | -- | -- |
| TurboCentras | Shaft nut | GA-21-0005 | 1 | -- | -- |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring | GT15-170 | 1 | -- | -- |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| EE Turbo | Cartridge | GT17-001 | 1 | -- | 701864-0020 |
| TurboCentras | VNT Ring | GT17-90-1 | 1 | -- | -- |
| TurboCentras | Screw | SC-96-0007 | 4 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-2 | 1 | -- | -- |
| TurboCentras | Gasket oil outlet | T-2-2 | 1 | -- | -- |
| TurboCentras | Gasket kit | TC1020 | 1 | -- | -- |
| TurboCentras | Washer | WA-95-0001 | 4 | -- | -- |
1720127040D, 721164-0014, 721164-5014S
Data updated: 2025-01-30 09:48:51
