Garrett

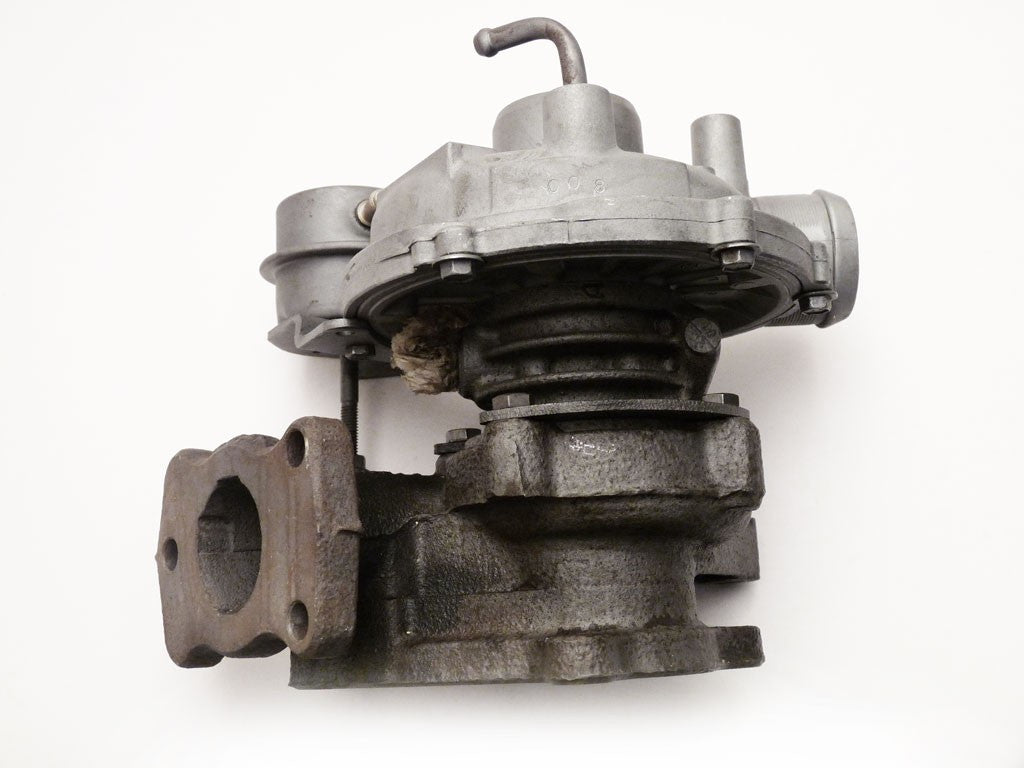

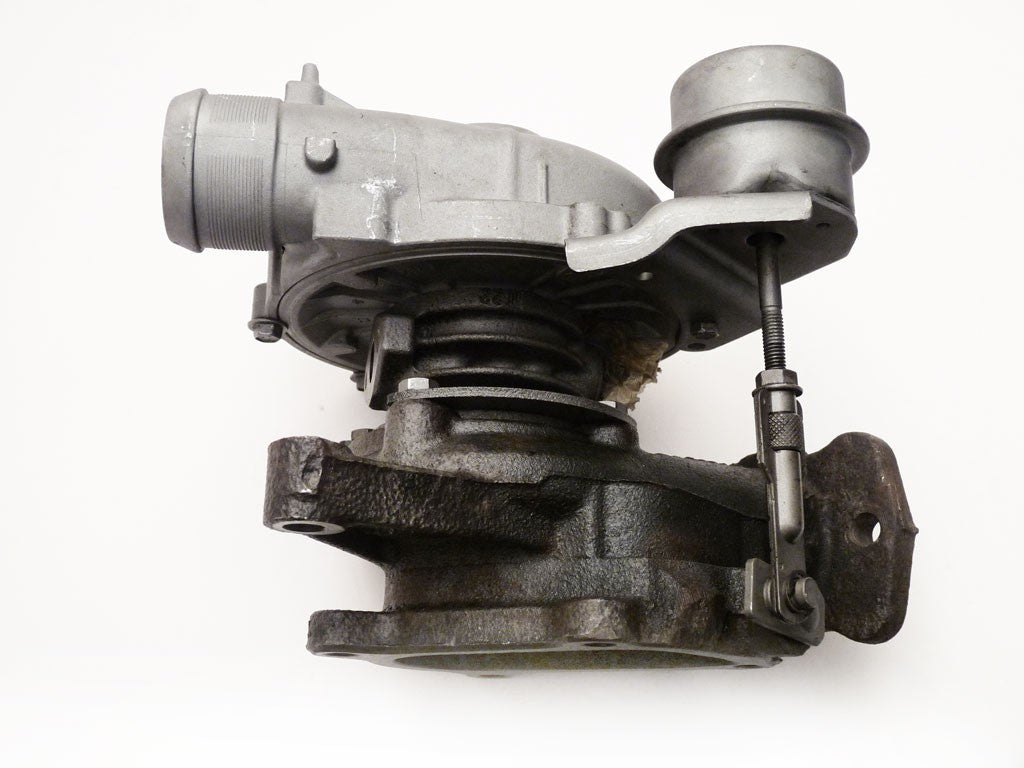

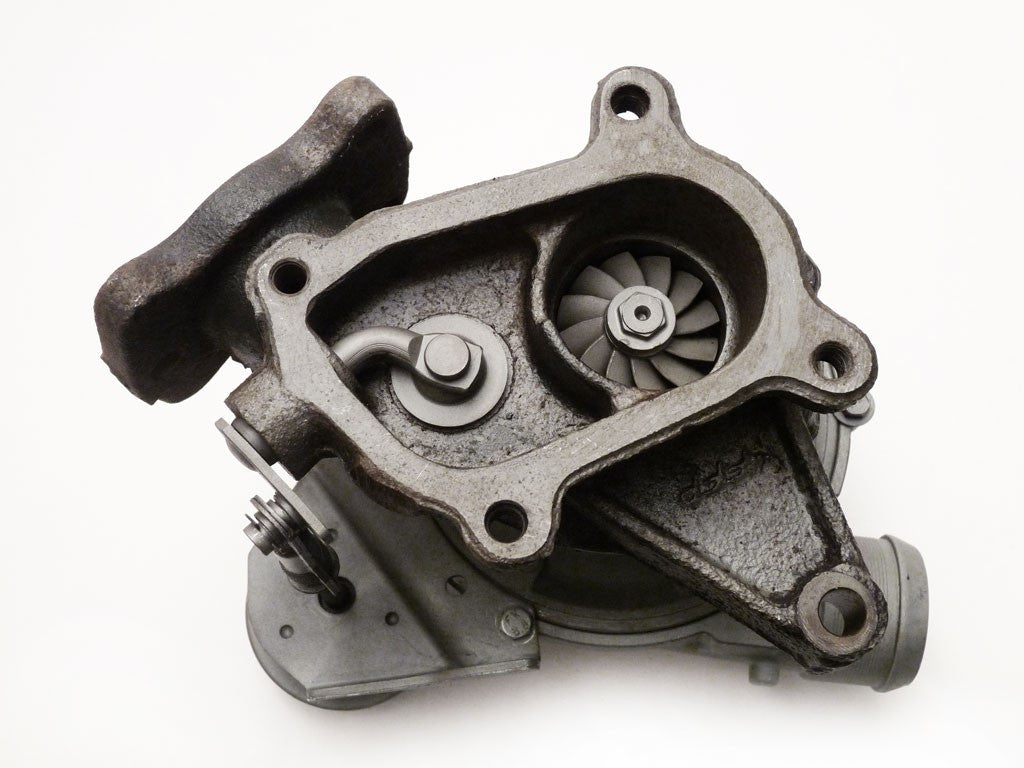

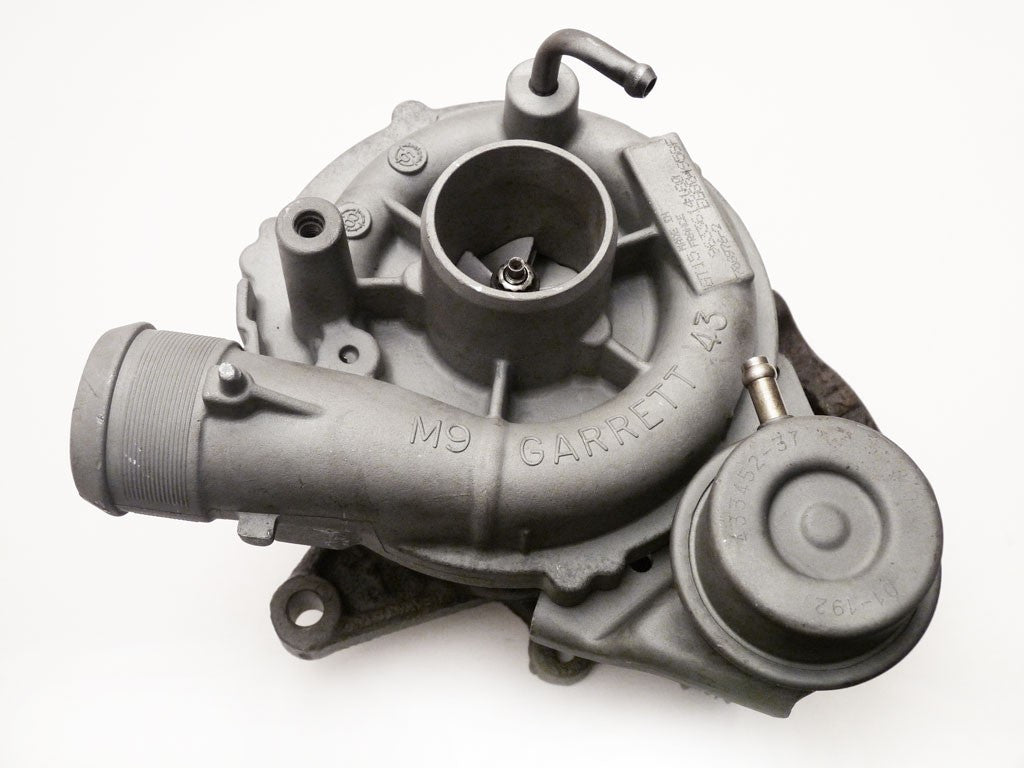

Turbo 706976-0002 (R)
Turbo 706976-0002 (R)
Regular price
€181,82 EUR
Regular price
Sale price
€181,82 EUR
Unit price
/
per
Couldn't load pickup availability
706976-0002 - Turbocharger
Brand: Garrett
Garrett Reference: 706976-0002
706976-0002 - Alternative numbers

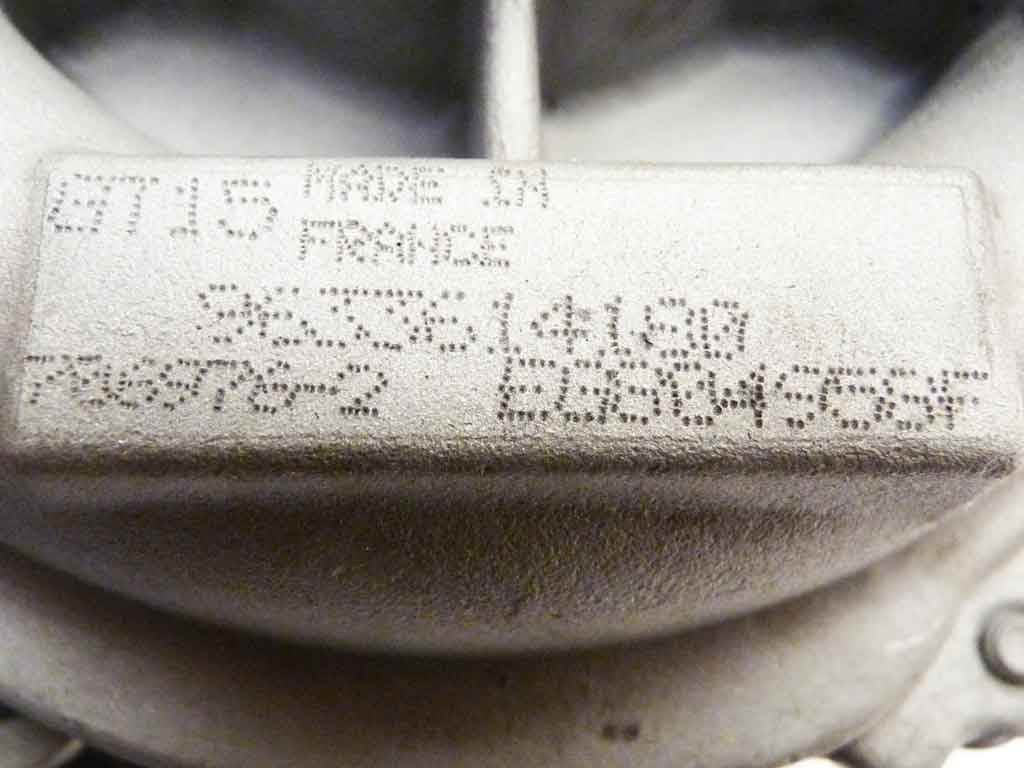

GHO (Garrett original part number): 706976-0002
| Turbo 706976-0002 - Compatible parts | |||||
|---|---|---|---|---|---|
| PART BRAND | PART NAME | PART REFERENCE | QTY | PART OE NUMBER | GARRETT PART NUMBER |
| TurboCentras | Actuator clip | GR.5 | 1 | -- | -- |
| TurboCentras | Journal bearing | GT15-101 | 1 | -- | -- |
| TurboCentras | Compressor wheel | GT15-12 | 1 | -- | 436624-0002 |
| TurboCentras | Thrust bearing | GT15-120 | 1 | -- | -- |
| TurboCentras | Thrust flinger | GT15-130 | 1 | -- | -- |
| TurboCentras | Thrust Collar | GT15-135 | 1 | -- | -- |
| TurboCentras | Retaining ring (B) | GT15-143 | 1 | -- | -- |
| TurboCentras | Piston ring (turbine) | GT15-160 | 1 | -- | -- |
| TurboCentras | Piston ring (compr.) | GT15-170 | 1 | -- | -- |
| TurboCentras | Shaft nut | GT15-180 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-201 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-202 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-203 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-204 | 1 | -- | -- |
| TurboCentras | O-ring (compr.) | GT15-205 | 1 | -- | -- |
| TurboCentras | O-ring (backplate) | GT15-206 | 1 | -- | -- |
| TurboCentras | Cartridge | GT15-219 | 1 | -- | 433289-0121 |
| TurboCentras | Bearing housing | GT15-300 | 1 | -- | 433275-0001, 433275-0002, 435791-0003, 435791-0034, 435793-0002, 435793-0007, 713782-0002 |
| TurboCentras | Heat shield | GT15-325 | 1 | -- | 434302-0001 |
| TurboCentras | Anti-rotation pin | GT15-330 | 1 | -- | -- |
| TurboCentras | Shaft and wheel | GT15-38 | 1 | -- | 707669-0005, 707669-0010 |
| TurboCentras | Repair kit | GT15-50 | 1 | -- | -- |
| TurboCentras | Back plate | GT15-69 | 1 | -- | 703682-0014 |
| TurboCentras | Bolt | M5X18 | 4 | -- | -- |
| TurboCentras | Bolt | M5X8 | 6 | -- | -- |
| TurboCentras | Bolt | M6 | 4 | -- | -- |
| TurboCentras | Bolt | M6X10 | 6 | -- | -- |
| TurboCentras | Gasket oil outlet | T-1 | 1 | -- | -- |
706976-0002
Data updated: 2021-07-12 13:07:07
